Drive Cables And Guide Rails: Disassembly

  1. Place the sliding roof panel frame on a suitable work surface.
  2. Remove the two front stops.
    1. Remove the bolts (two each side).
    2. Remove the two front stops.

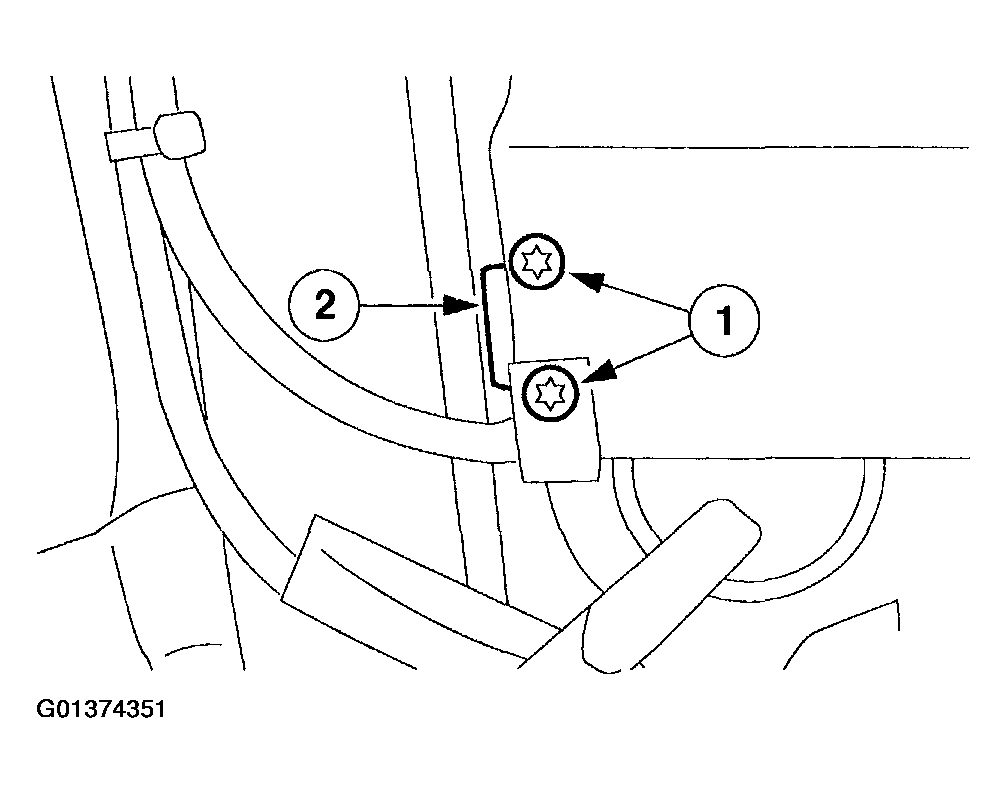

    Fig 1: Removing Front Stops
    G01374351Courtesy of FORD MOTOR CO.
  3. Remove the drive unit screws.

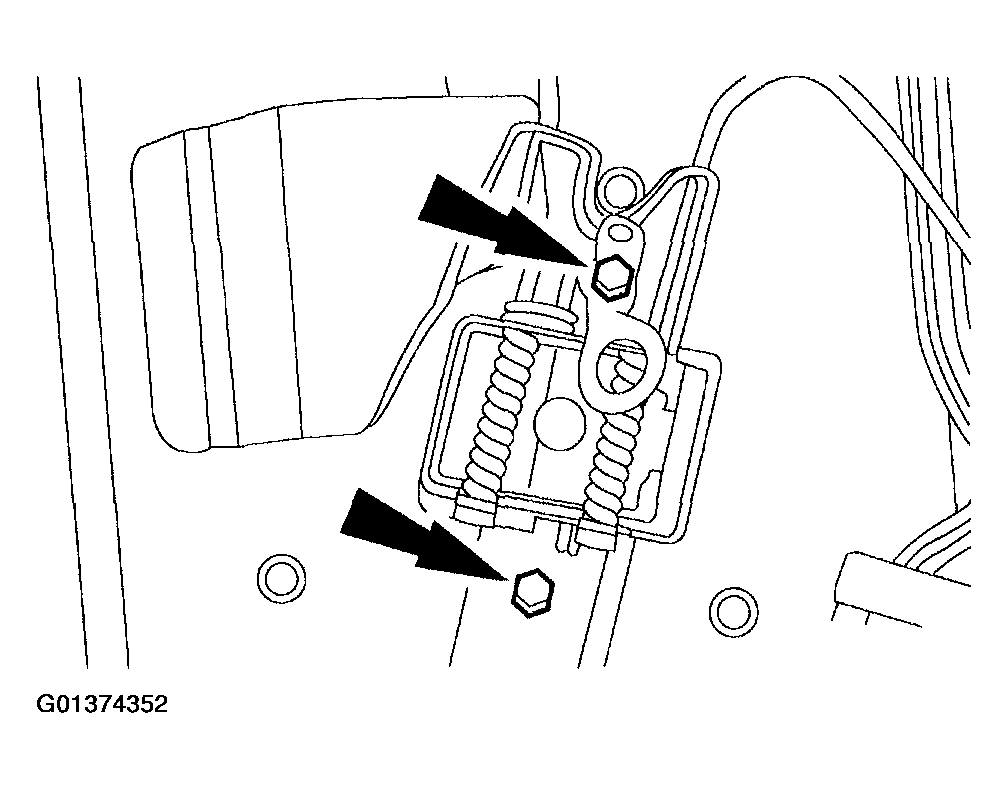

    Fig 2: Removing Drive Unit Screws
    G01374352Courtesy of FORD MOTOR CO.
  4. Remove the drive unit.
    1. Drill out the rivets.
    2. Remove the drive unit.

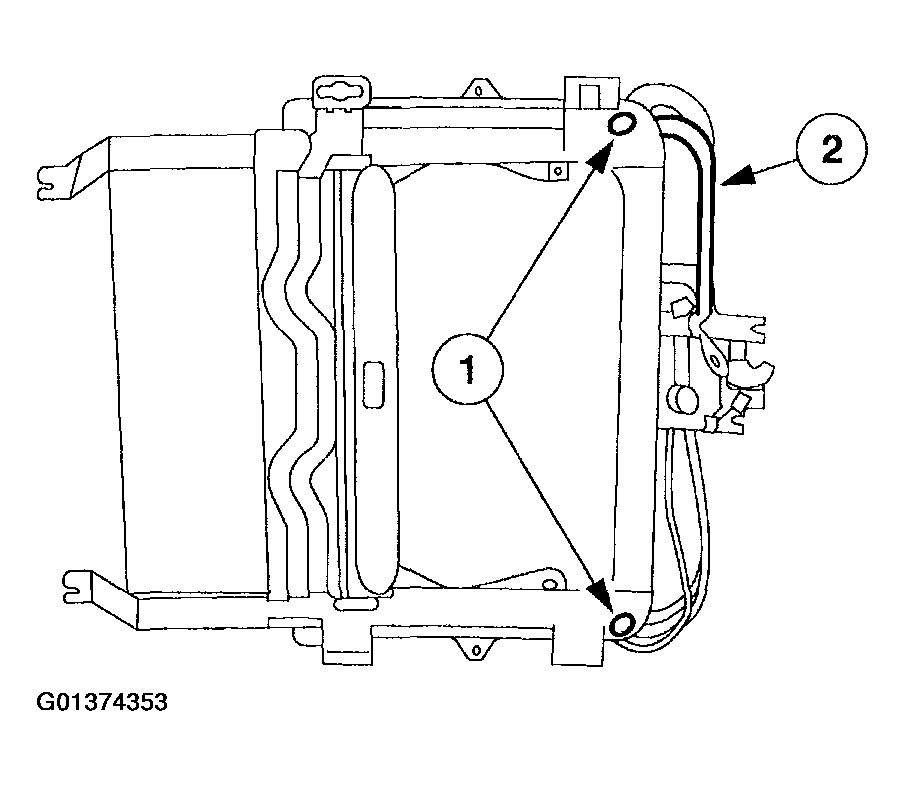

    Fig 3: Removing Drive Unit
    G01374353Courtesy of FORD MOTOR CO.
  5. Remove the lower panel.
    1. Drill out the rivets.
    2. Remove the lower panel.

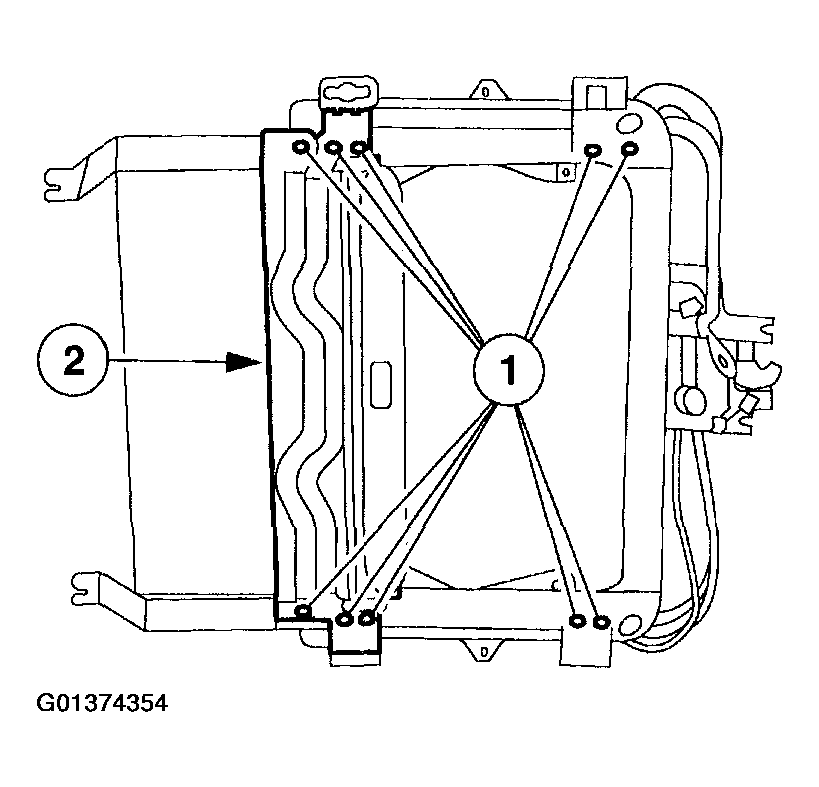

    Fig 4: Removing Lower Panel
    G01374354Courtesy of FORD MOTOR CO.
  6. Remove the guides.

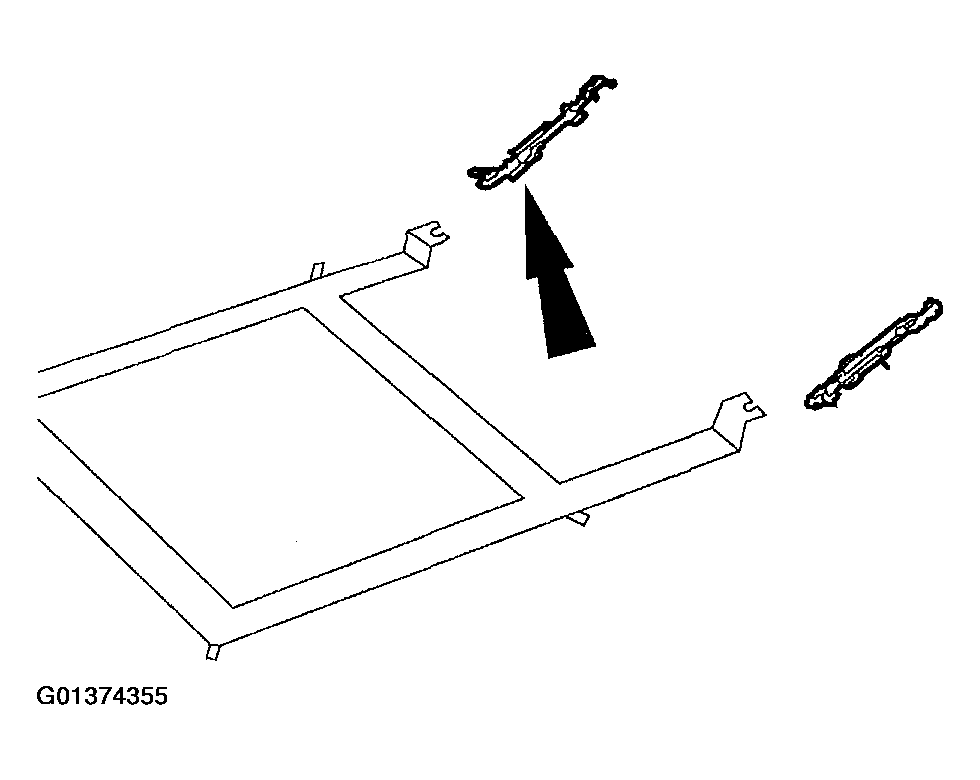

    Fig 5: Removing Guides
    G01374355Courtesy of FORD MOTOR CO.
