Home >> Ford >> 2003 >> ZX2 Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Handles, Locks, Latches And Entry Systems >> Specifications >> Torque Specifications

Torque Specifications

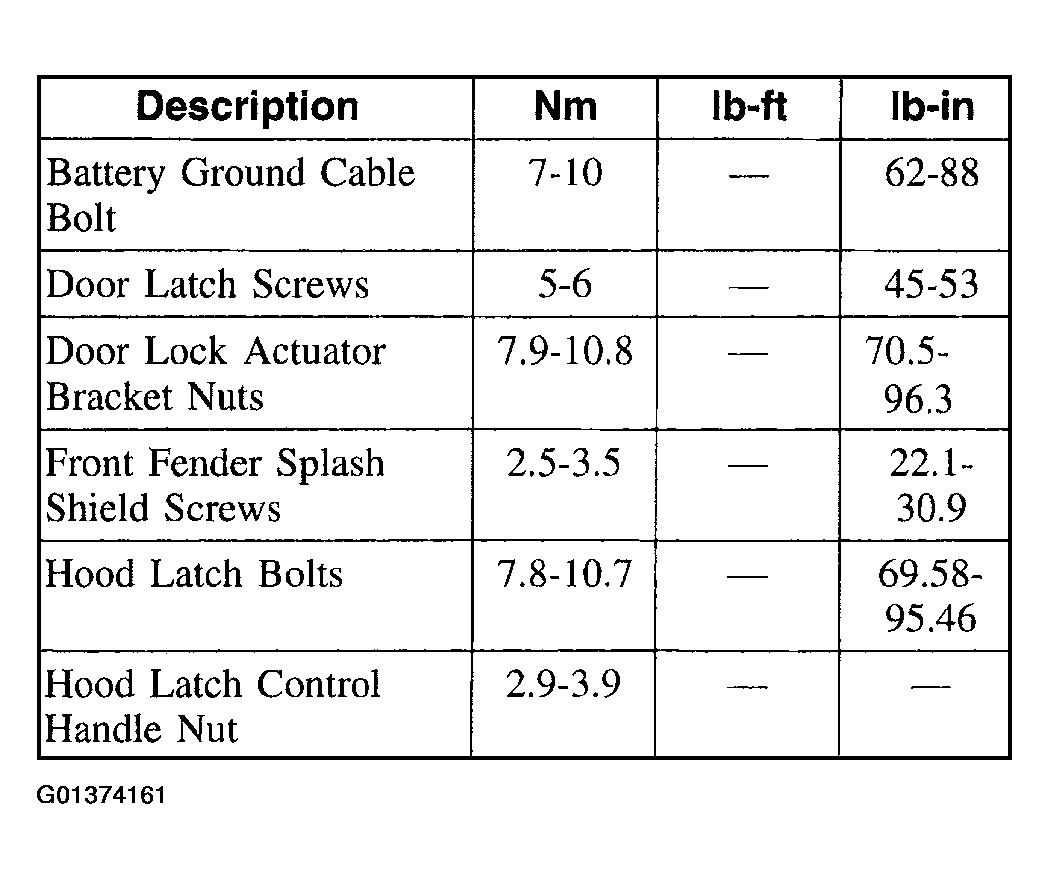

Fig 1: Handles, Locks, Latches And Mechanisms Torque Specifications Chart (1 Of 2)
G01374161Courtesy of FORD MOTOR CO.

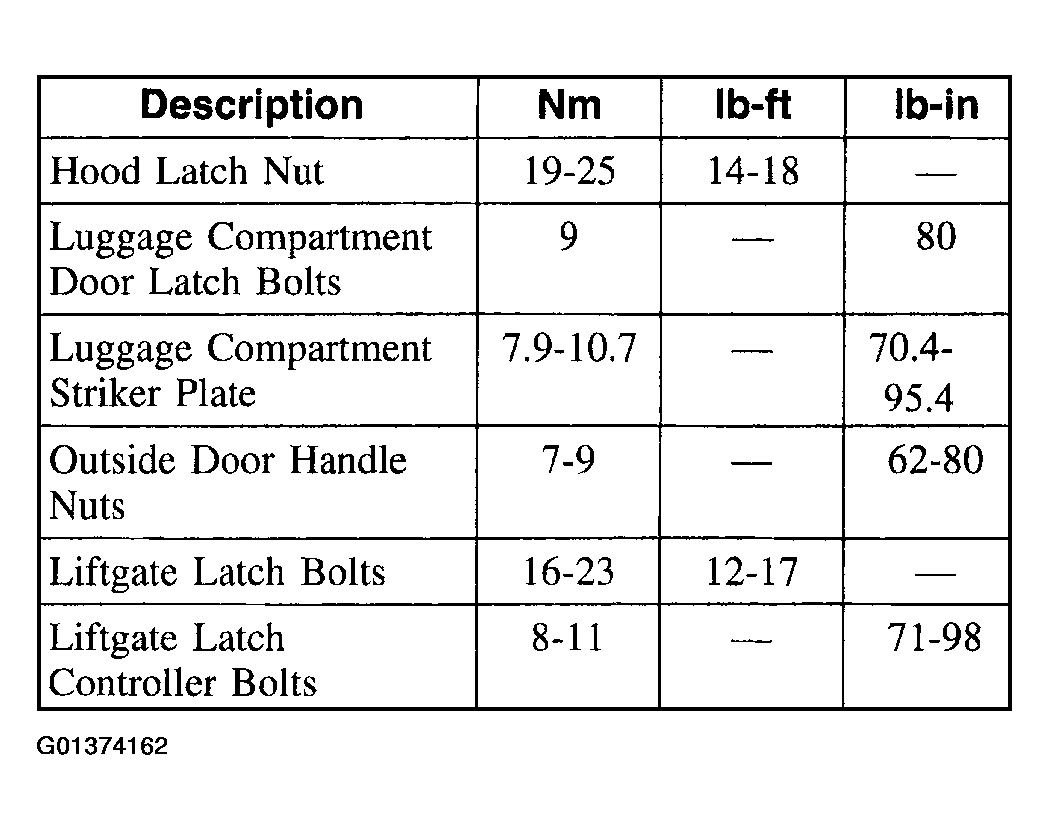

Fig 2: Handles, Locks, Latches And Mechanisms Torque Specifications Chart (2 Of 2)
G01374162Courtesy of FORD MOTOR CO.
