Home >> Ford >> 2003 >> Windstar SEL >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> Assembly >> Engine >> Special Tool(s)

Special Tool(s)

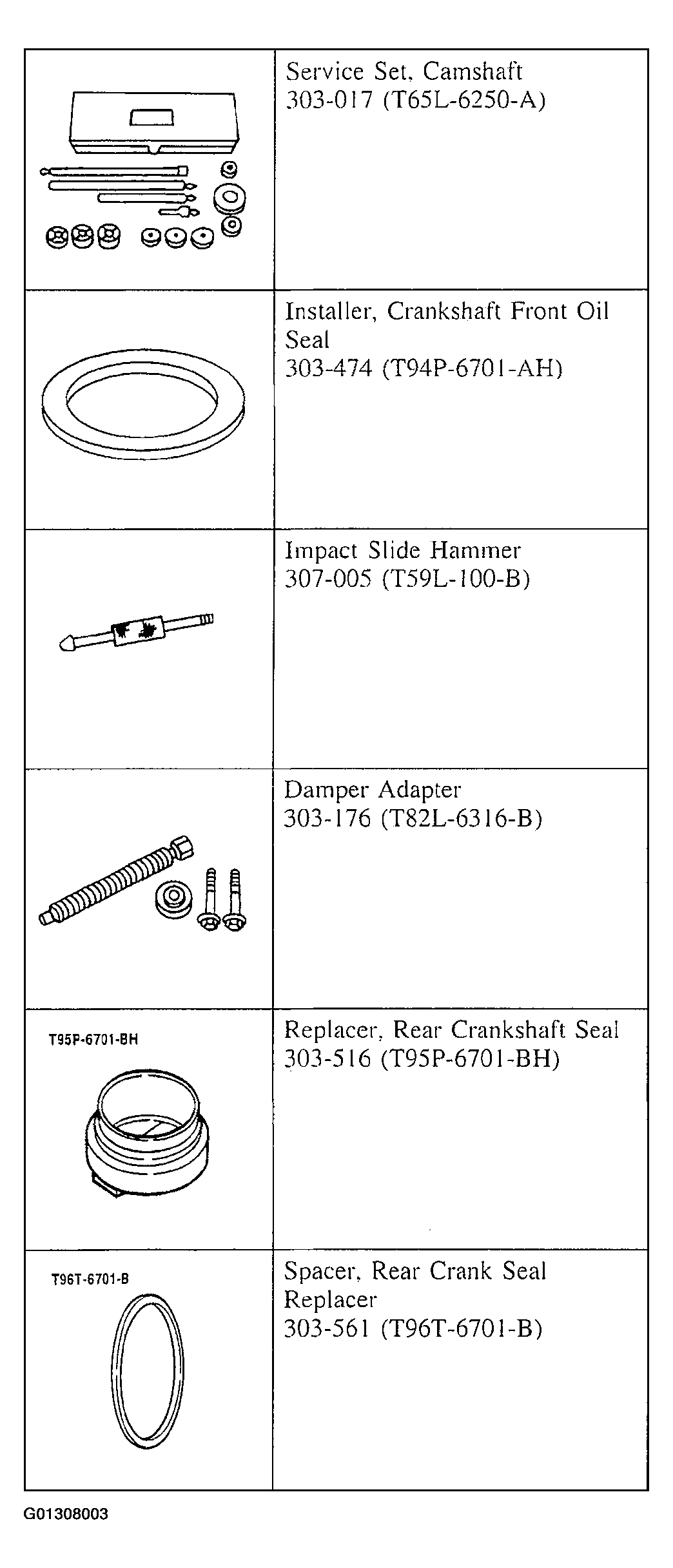

Fig 1: Identifying Special Tools (1 Of 2)

G01308003

Courtesy of FORD MOTOR CO.

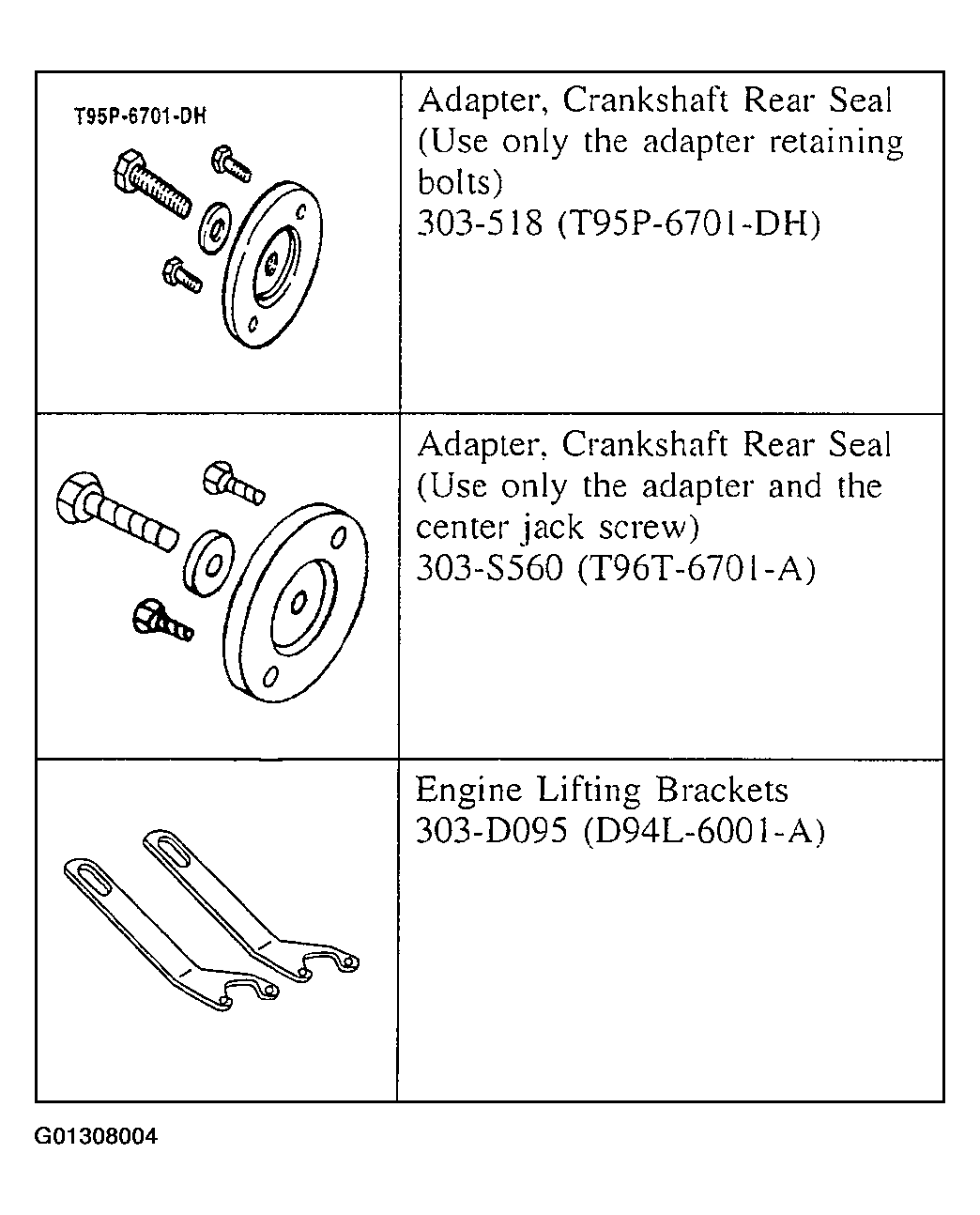

Fig 2: Identifying Special Tools (2 Of 2)

G01308004

Courtesy of FORD MOTOR CO.
