System Tests (Evaporative Emission): Notes

NOTE: Prior to performing any system test, see HOW TO USE SYSTEM TESTS under SYSTEM TESTS. If instructed to replace Powertrain Control Module (PCM) after performing a system test, new PCM must be programmed. See PROGRAMMING PCM .

Perform these tests when instructed during QUICK TEST or if directed here from another article or from DIAGNOSTIC TROUBLE CODE DEFINITIONS . Perform appropriate evaporative emission system test. See EVAPORATIVE EMISSIONS DIAGNOSTIC TROUBLE CODE DEFINITIONS . For emission-related symptom tests, see EXCESSIVE FUEL ODOR , HISSING SOUND WHEN REMOVING FUEL CAP or UNABLE TO REFUEL VEHICLE under EVAPORATIVE EMISSION SYSTEM TESTS in SYSTEM & COMPONENT TESTING - GASOLINE article.

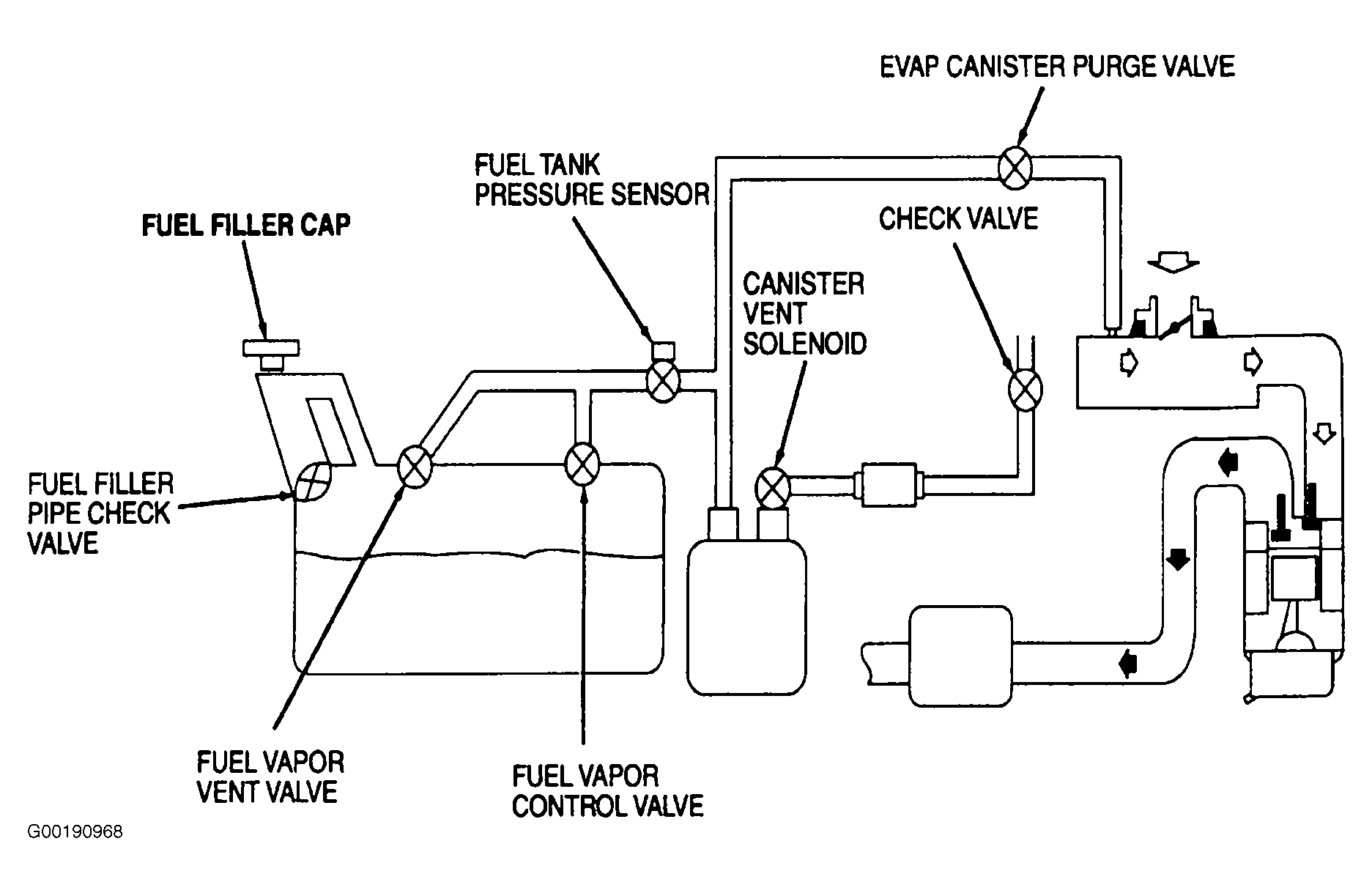

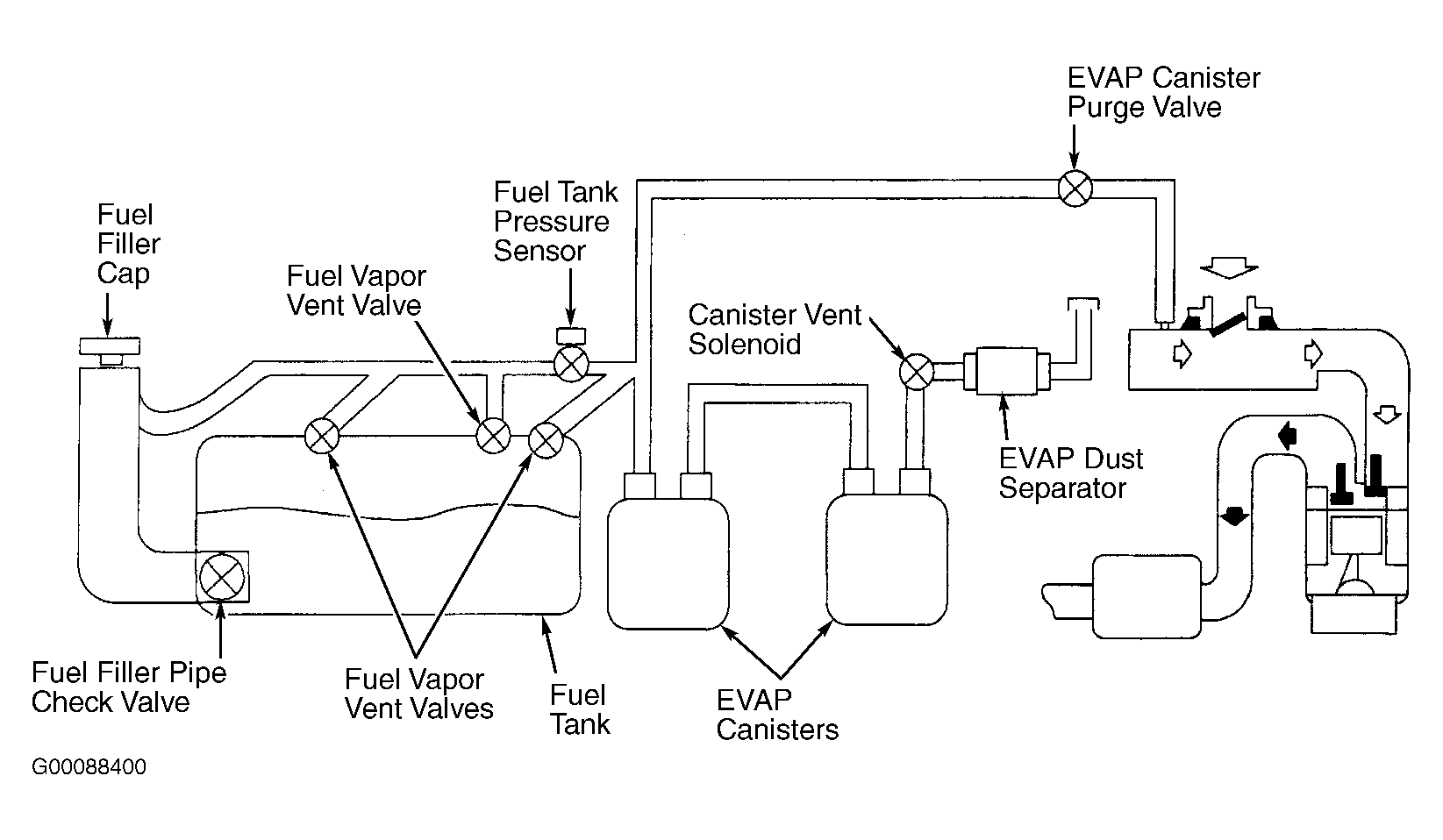

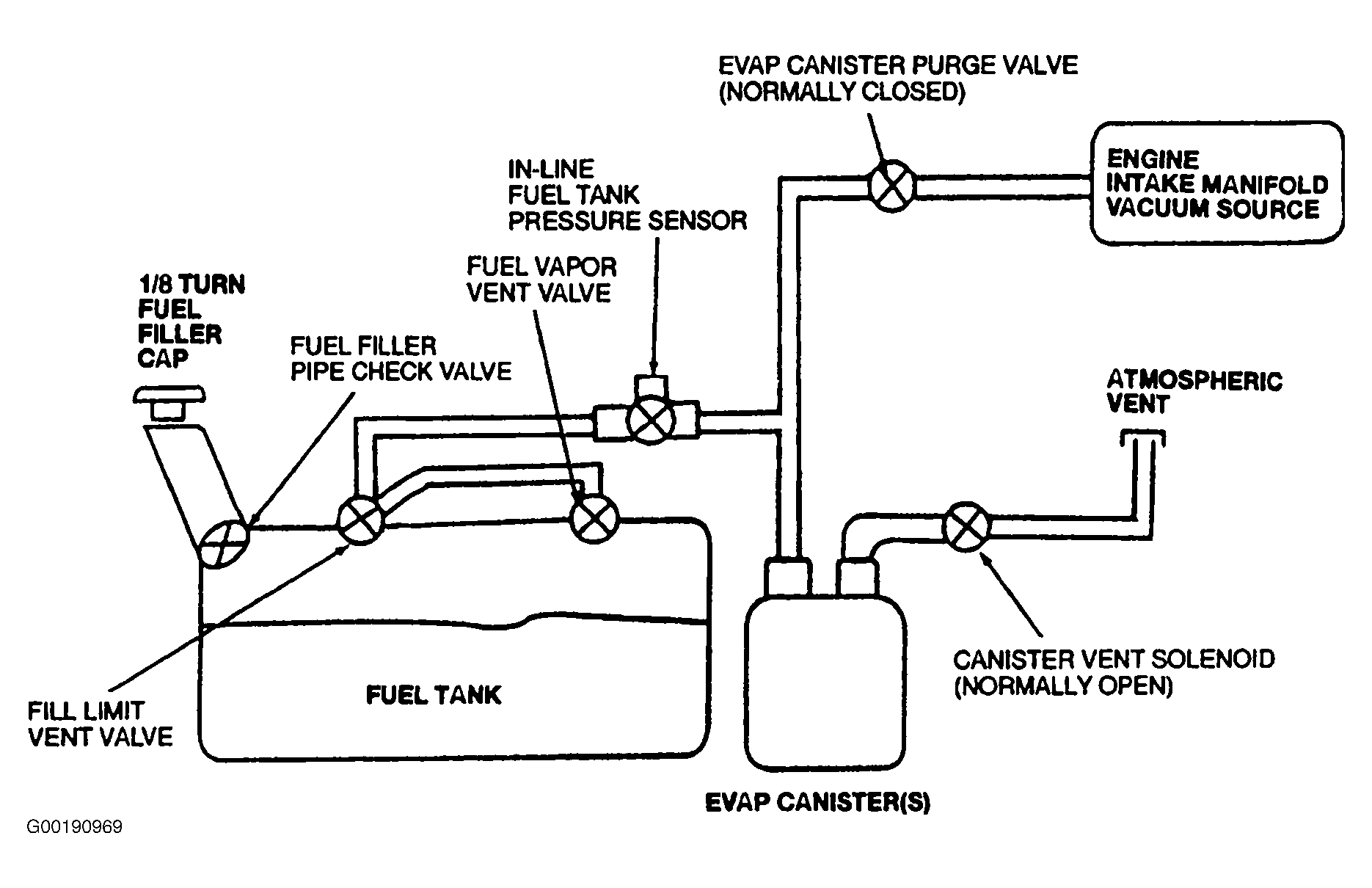

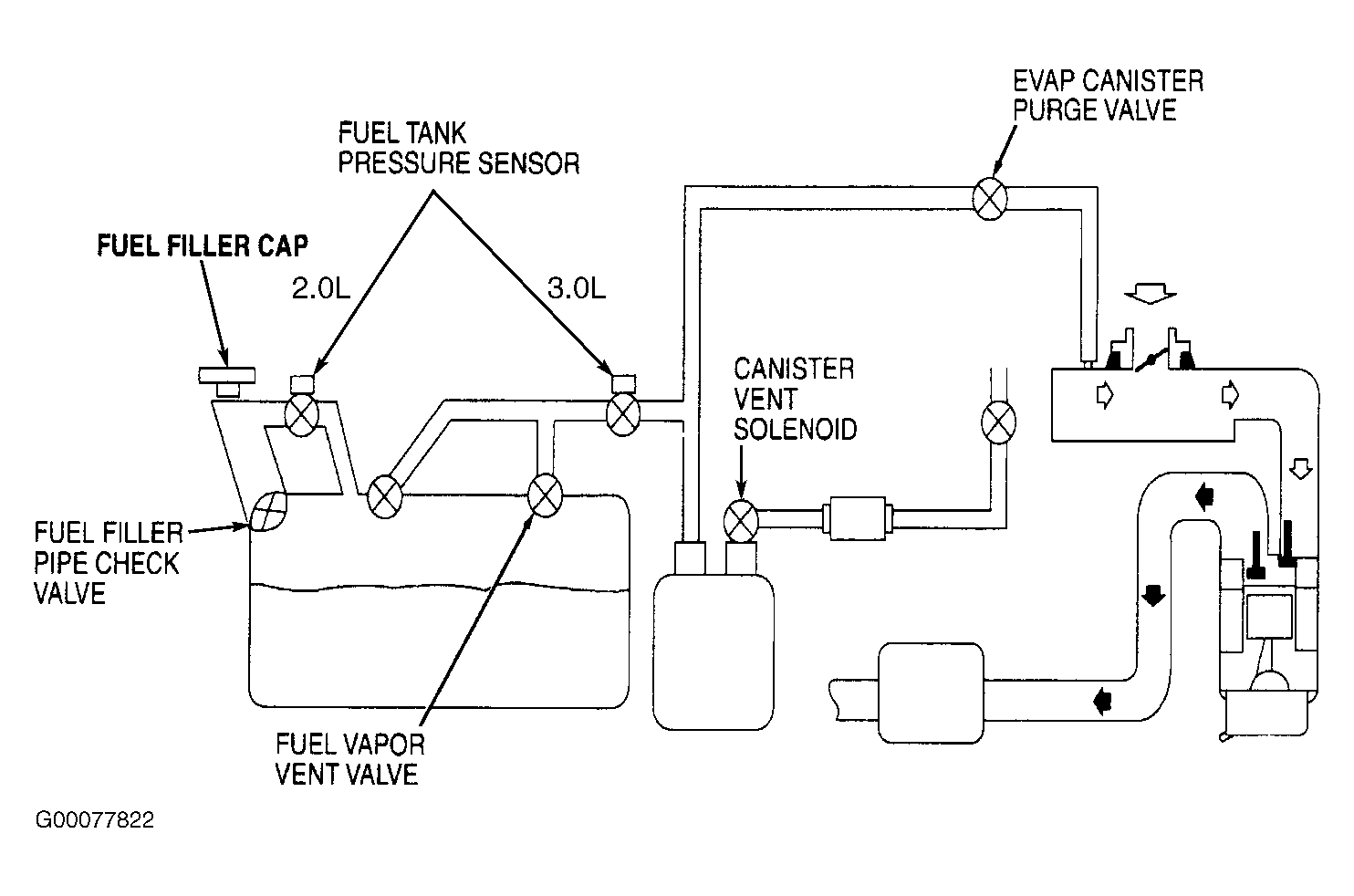

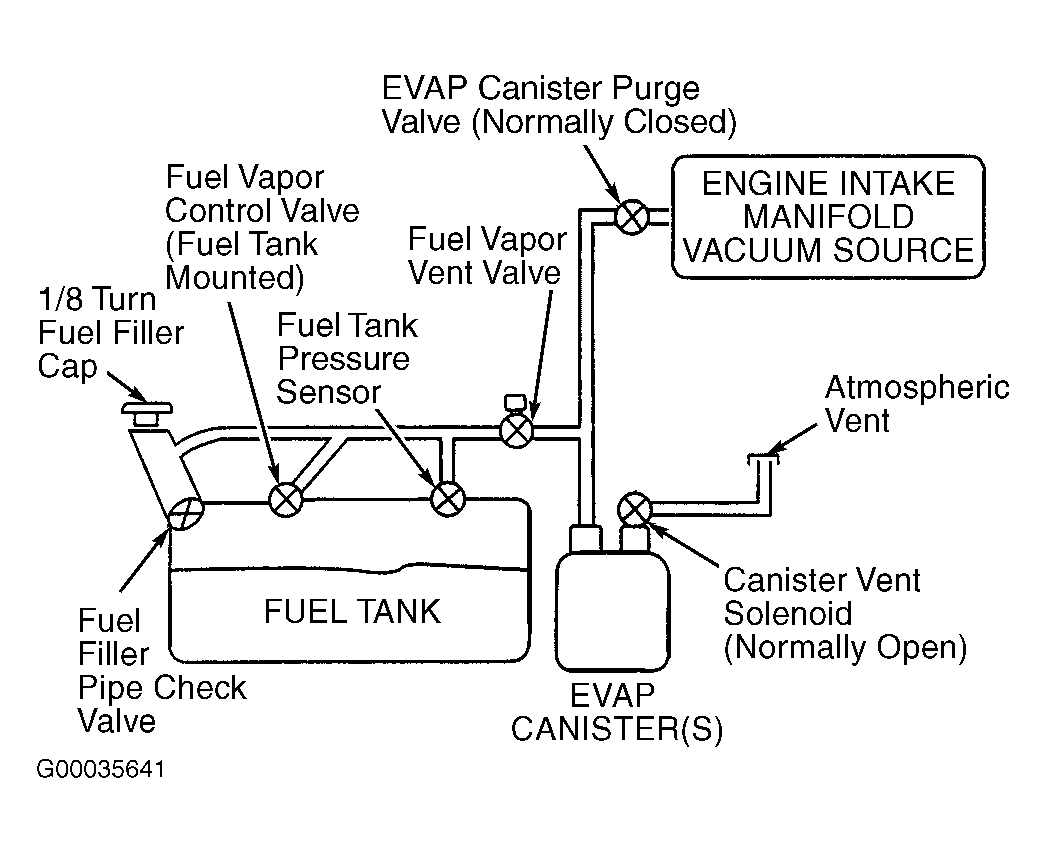

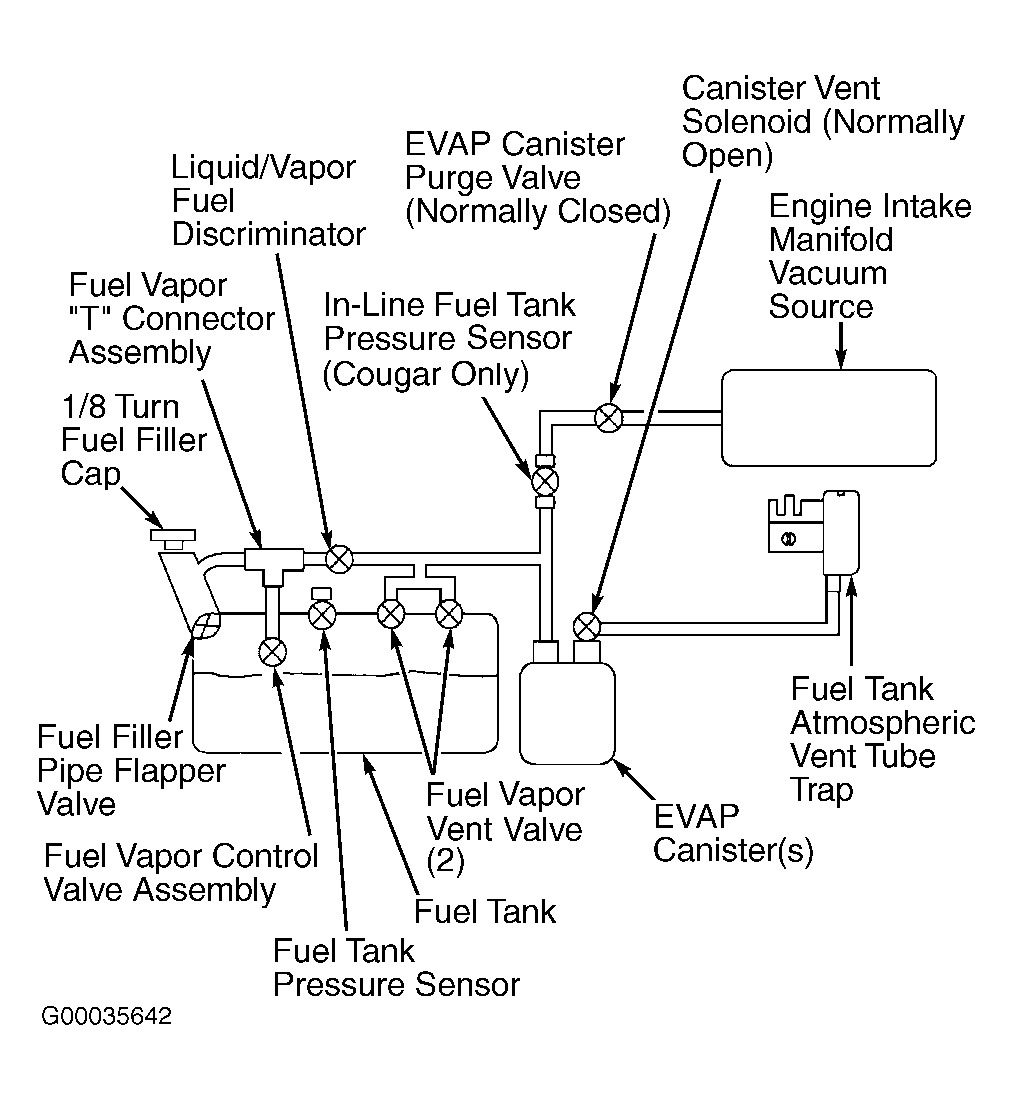

NOTE: To identify EVAP system components, see appropriate illustration. See Fig 1 -Fig 8 .

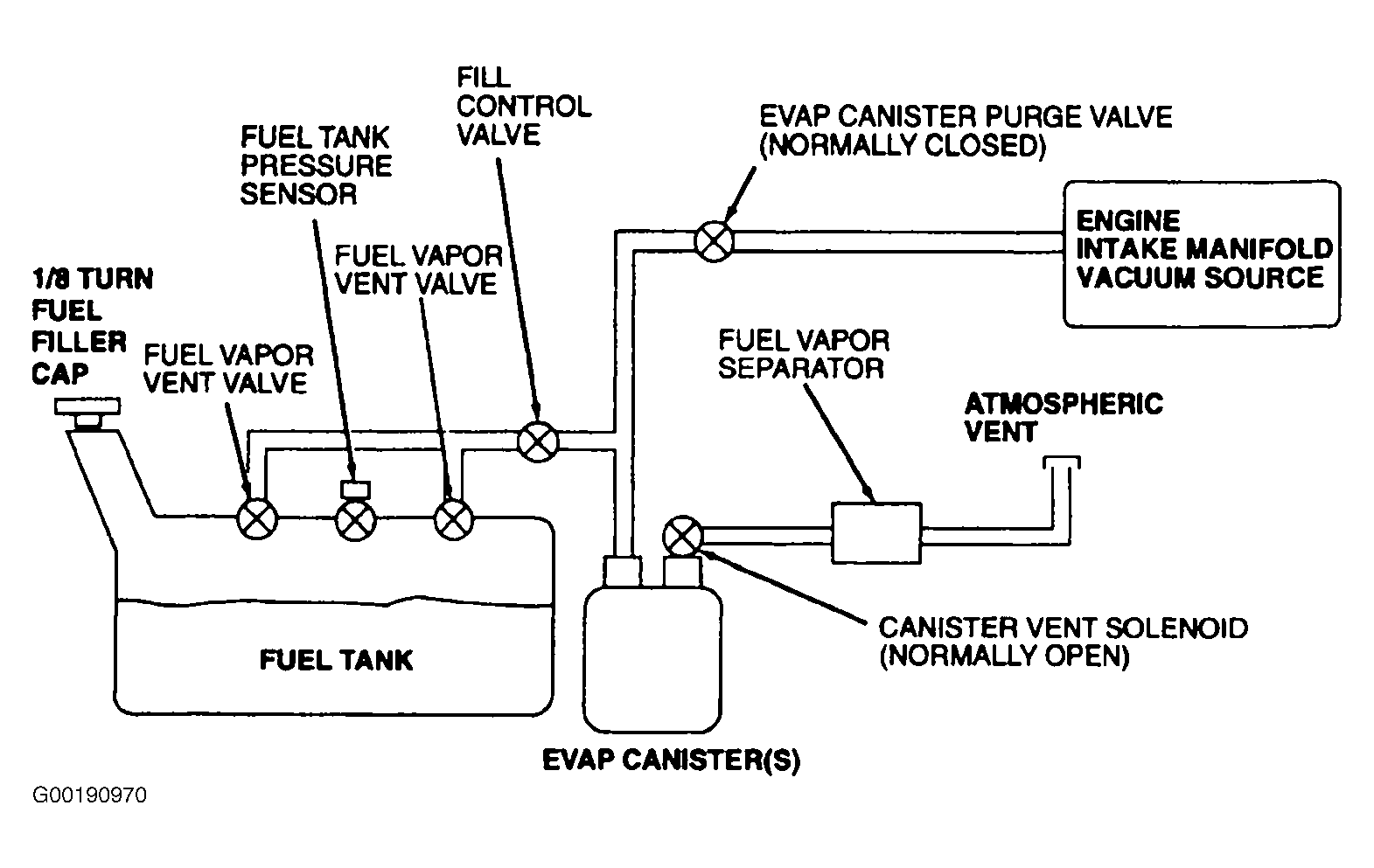

Fig 1: Identifying EVAP System Components (Aviator, Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

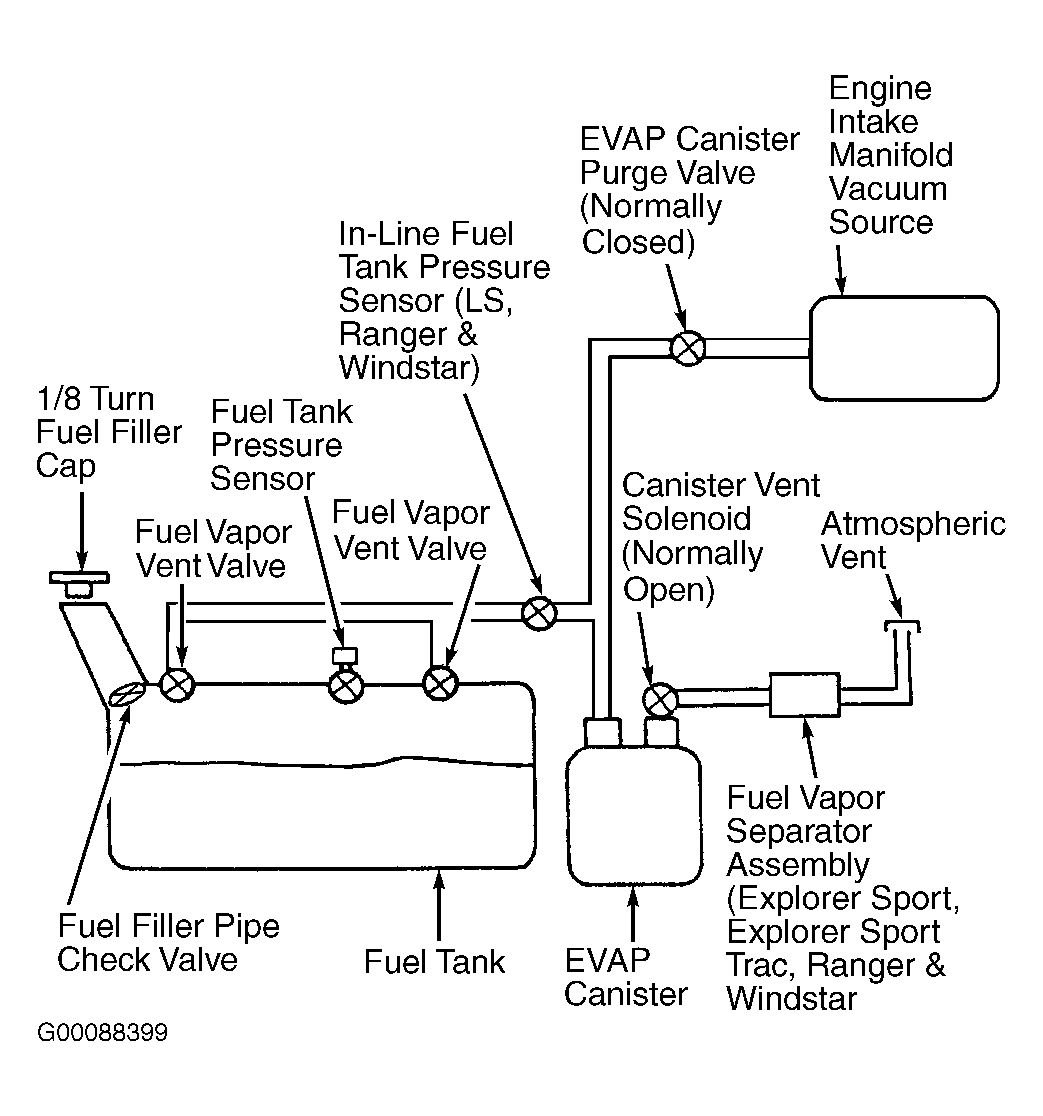

Fig 2: Identifying EVAP System Components (Blackwood, Econoline, Excursion, Expedition, Explorer Sport, Explorer Sport Trac, "F" Series Pickup, Navigator & Ranger)
