Cylinder Head RH: Installation

Clean and inspect the cylinder head for flatness. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
Install a new head gasket on the cylinder block with the small hole to the front of the engine and position the cylinder head.

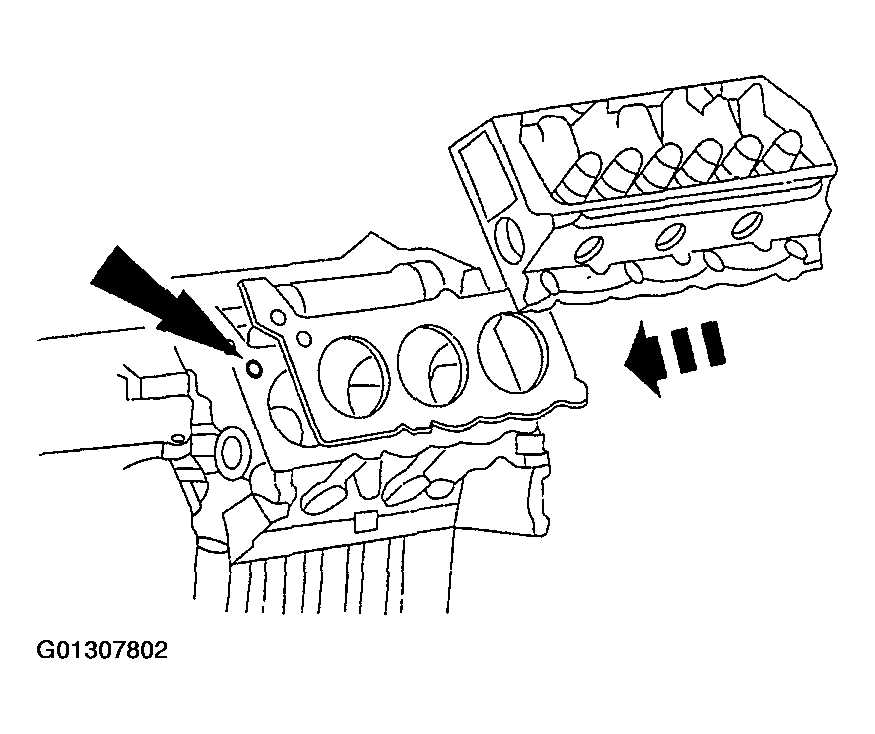

Fig 1: Installing Cylinder Head Gasket & Cylinder Head
Courtesy of FORD MOTOR CO.

CAUTION: Always use new bolts.

NOTE: Lubricate the bolts with clean engine oil prior to installation.

Install the new bolts. Make sure the bolts are installed in the correct locations.
1. Install new long bolts.
2. Install new short bolts.

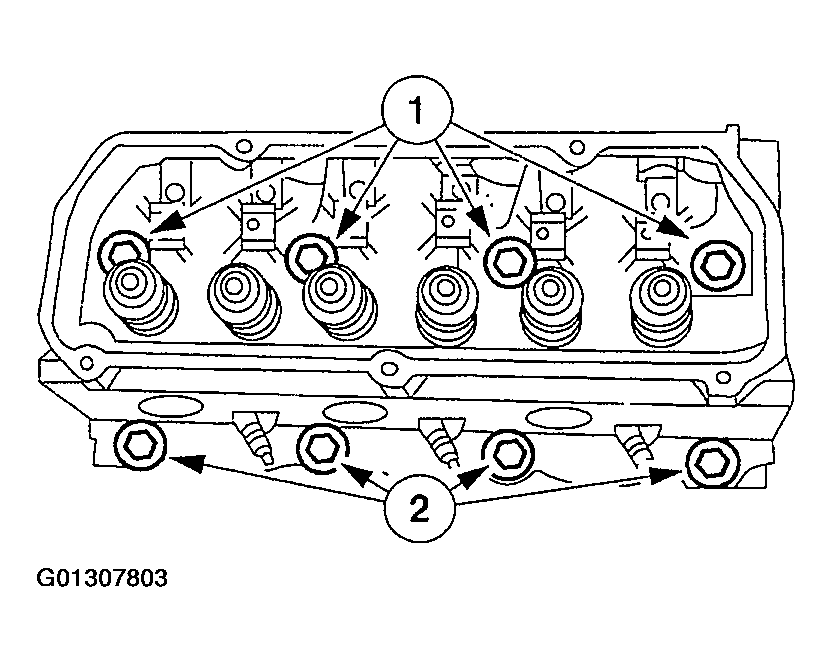

  Fig 2: Identifying Cylinder Head Bolts
  Courtesy of FORD MOTOR CO.
Tighten the bolts in three stages in the sequence shown.
- Stage 1: Tighten to 20 Nm (14 lb-ft).
- Stage 2: Tighten to 40 Nm (29 lb-ft).
- Stage 3: Tighten to 50 Nm (36 lb-ft).

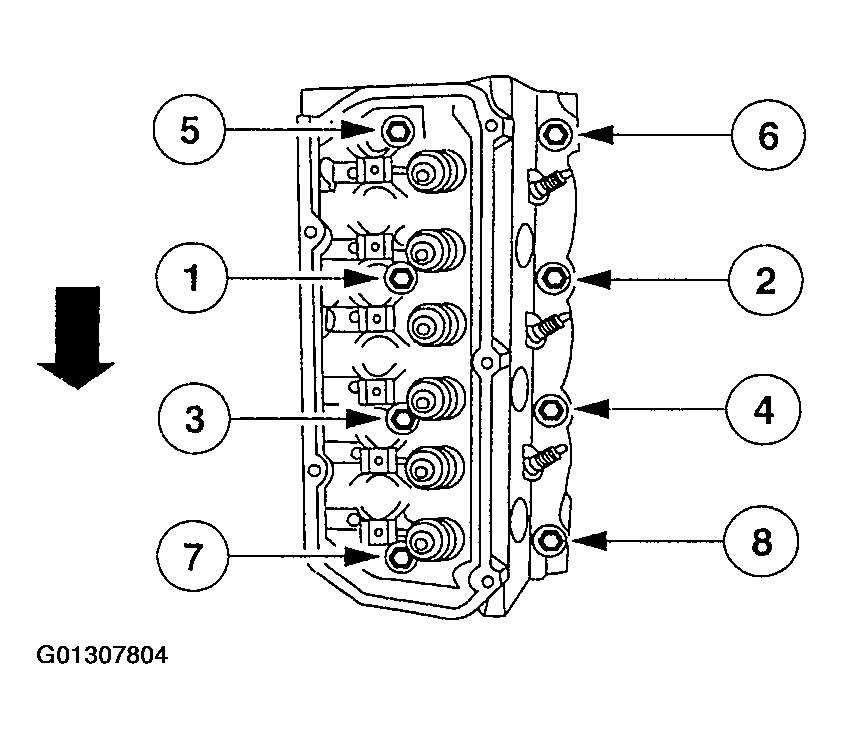

  Fig 3: Cylinder Head Bolt Tightening Sequence
  Courtesy of FORD MOTOR CO.

CAUTION: Do not loosen all of the bolts at one time. Each bolt must be loosened and the final tightening carried out prior to working on the next bolt in the sequence.

Tighten the bolts in sequence in four stages: short bolts numbered 2, 4, 6 and 8:
- Stage 1: Tighten to 25 Nm (18 lb-ft).
- Stage 2: Tighten an additional 180 degrees. Long bolts numbered 1, 3, 5 and 7:
- Stage 3: Tighten to 45 Nm (33 lb-ft).
- Stage 4: Tighten an additional 180 degrees.

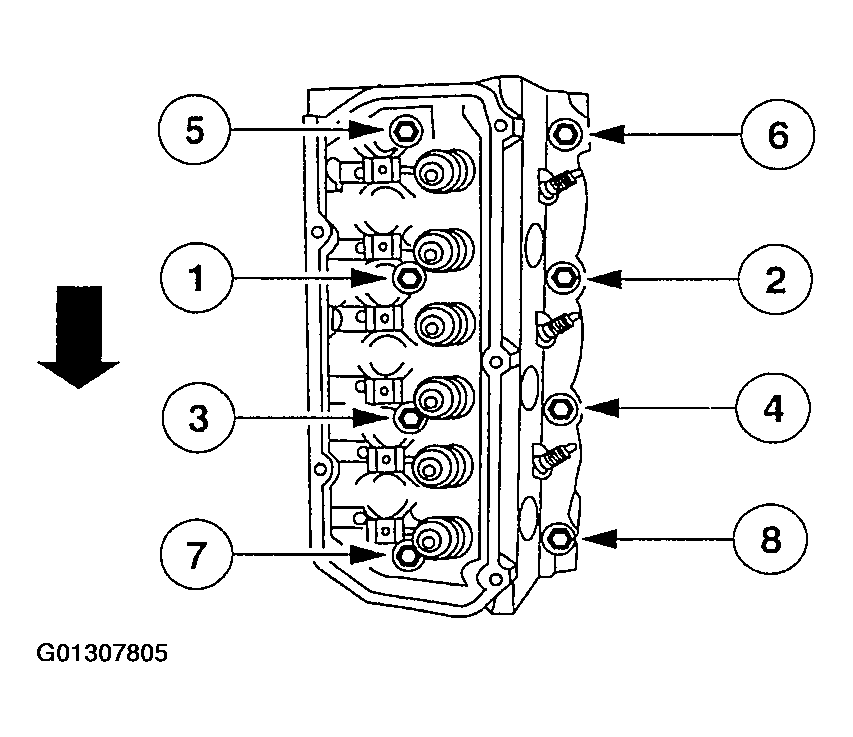

  Fig 4: Cylinder Head Bolt Tightening Sequence
  Courtesy of FORD MOTOR CO.

NOTE: Lubricate the push rods with clean engine oil prior to installation.

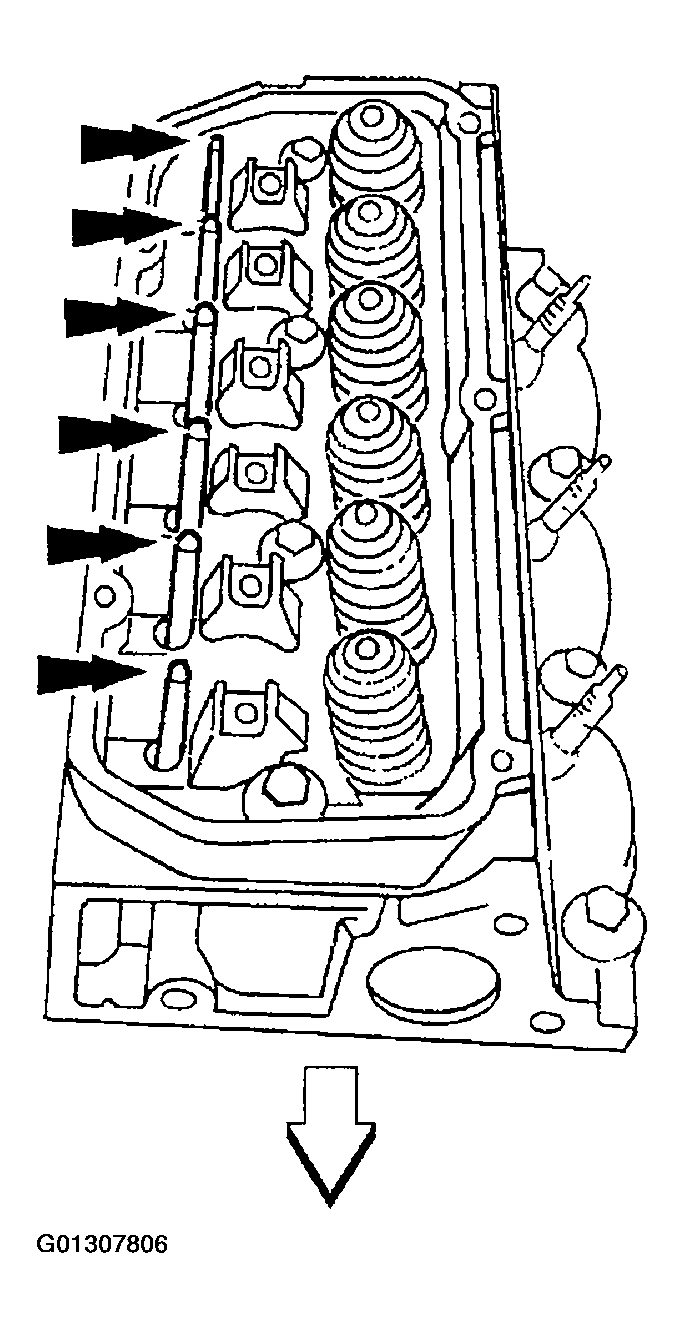

Fig 5: Identifying Push Rods

Courtesy of FORD MOTOR CO.

Install the push rods.
Install the rocker arms. Tighten the bolts in two stages.
- Stage 1: Tighten to 5 Nm (44 lb-in).
- Stage 2: Tighten to 32 Nm (24 lb-ft).

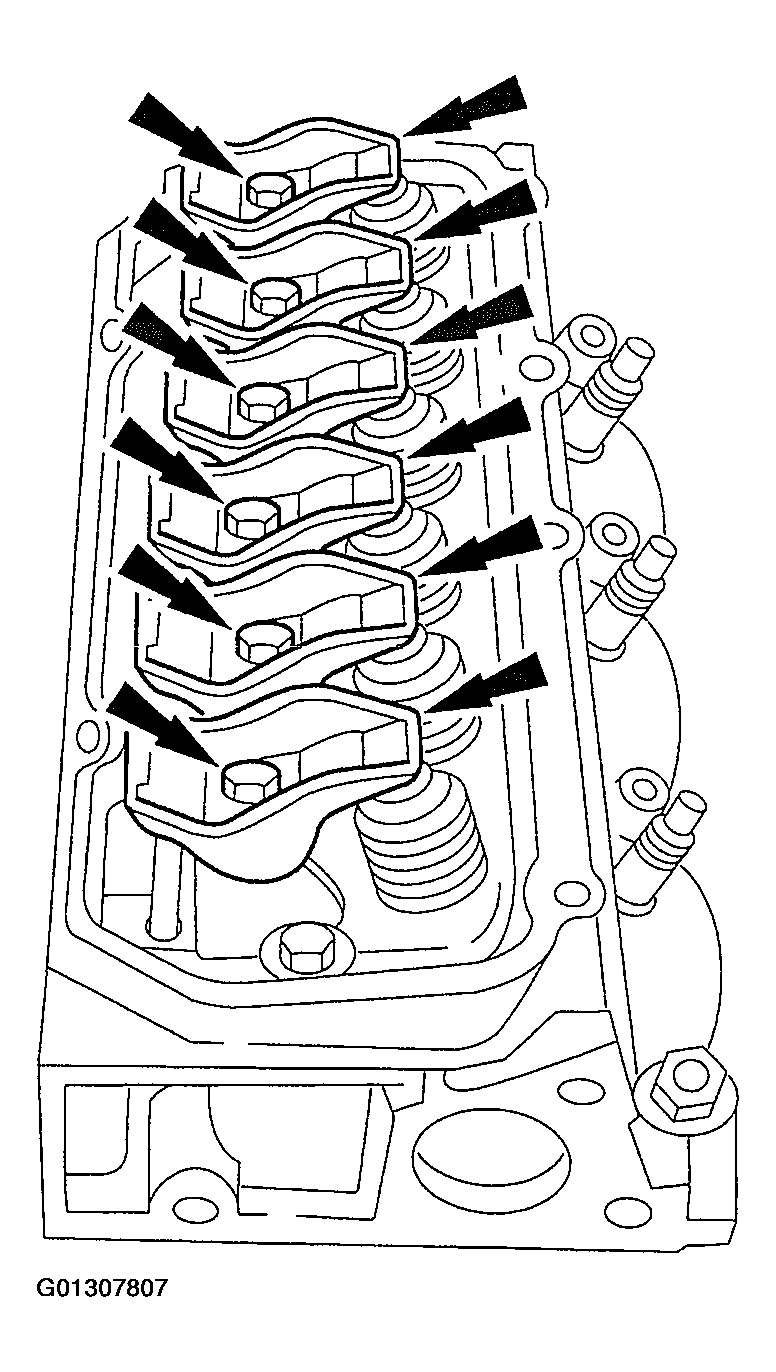

  Fig 6: Identifying Rocker Arms & Bolts
  Courtesy of FORD MOTOR CO.
Install the RH valve cover. For additional information, refer to VALVE COVER-RH .
Install the exhaust manifold studs.

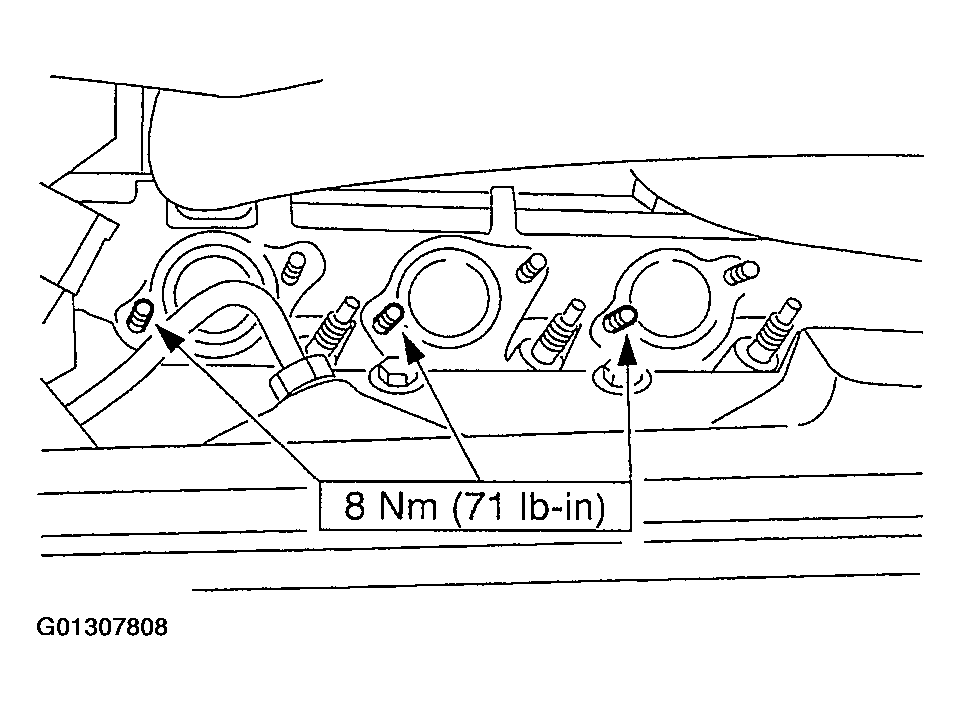

Fig 7: Exhaust Manifold Stud Tightening Torque
Courtesy of FORD MOTOR CO.
Install the RH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD-RH .
Install the spark plug wires.

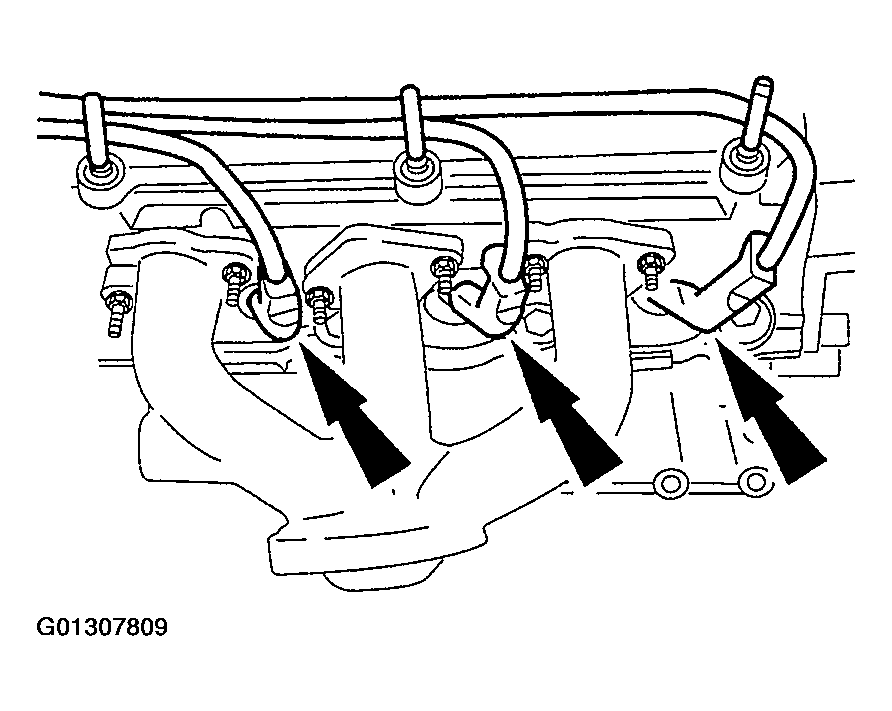

Fig 8: Locating Spark Plug Wires
Courtesy of FORD MOTOR CO.
Install the power steering pump bracket and bolts.

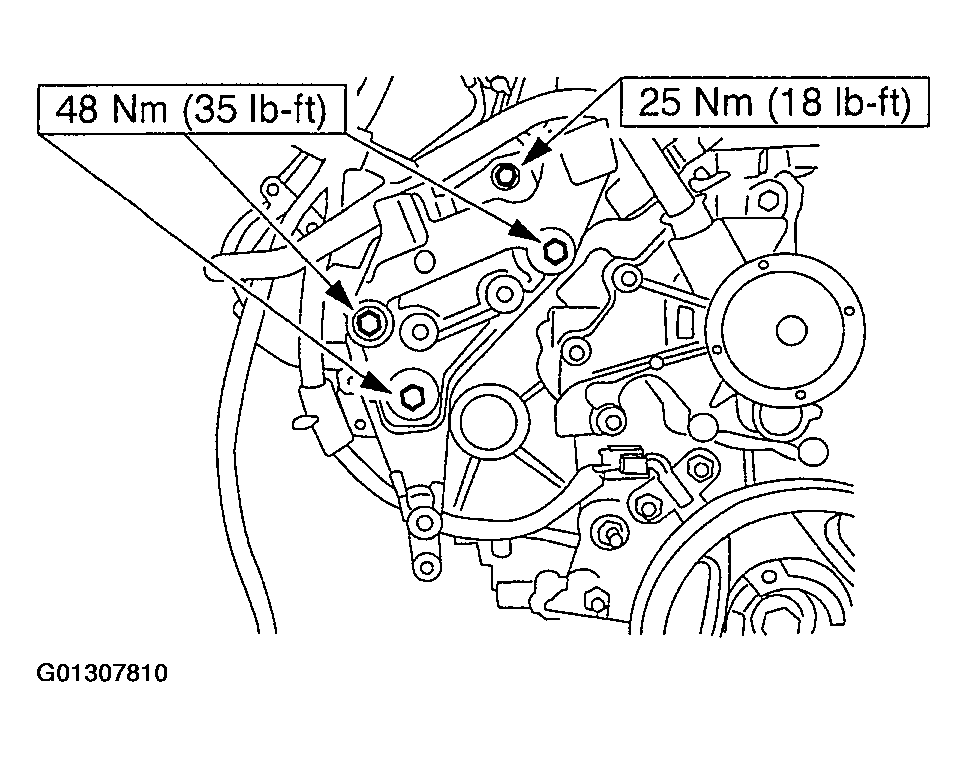

Fig 9: Power Steering Pump Bracket Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Install the heater tube.

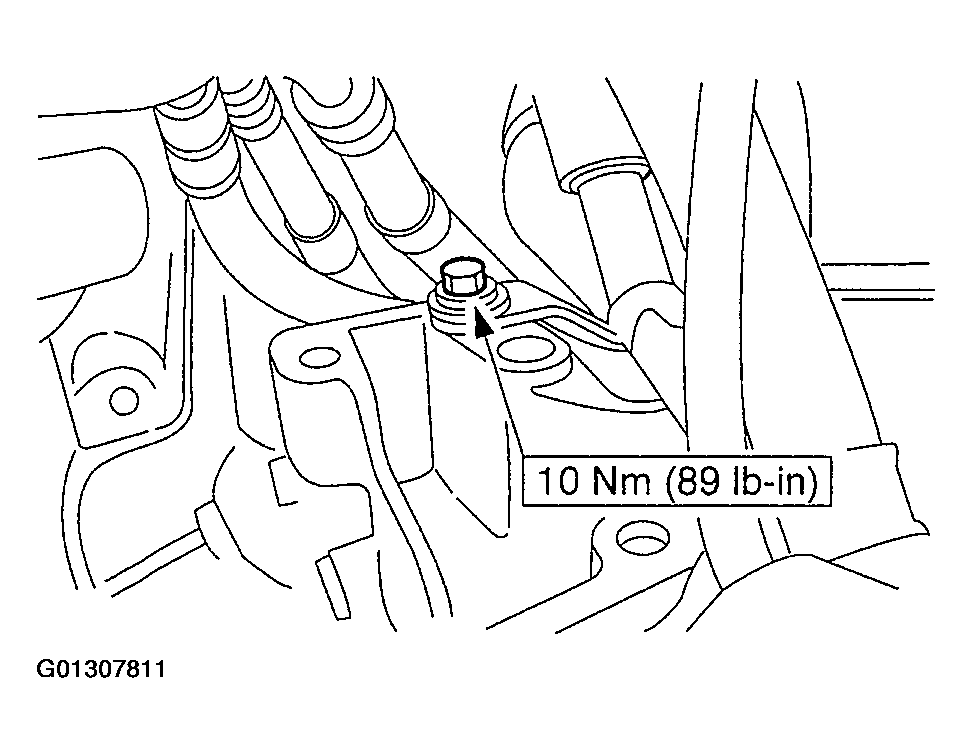

Fig 10: Heater Tube Bracket Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Install the power steering pump.

Fig 11: Power Steering Pump Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Connect the power steering pressure tube.

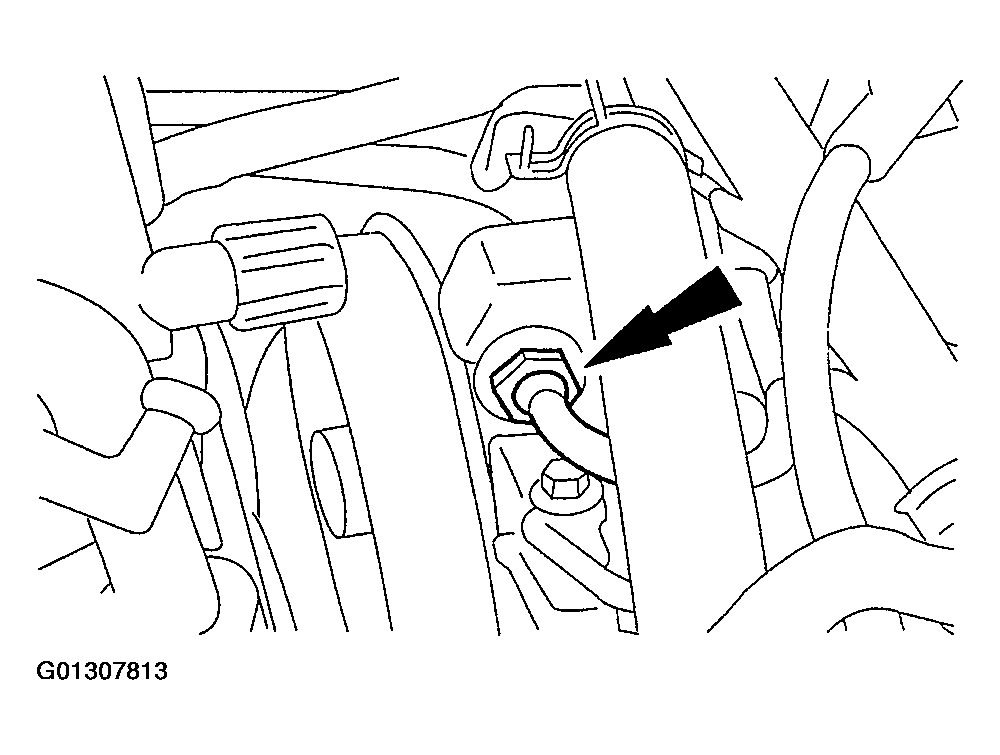

Fig 12: Identifying Power Steering Pressure Tube Nut
Courtesy of FORD MOTOR CO.
Install the accessory drive belt tensioner. For additional information, refer to ACCESSORY DRIVE .
Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
