Ford
>>
2003
>>
Windstar Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Disassembly And Assembly Of Subassemblies
>>

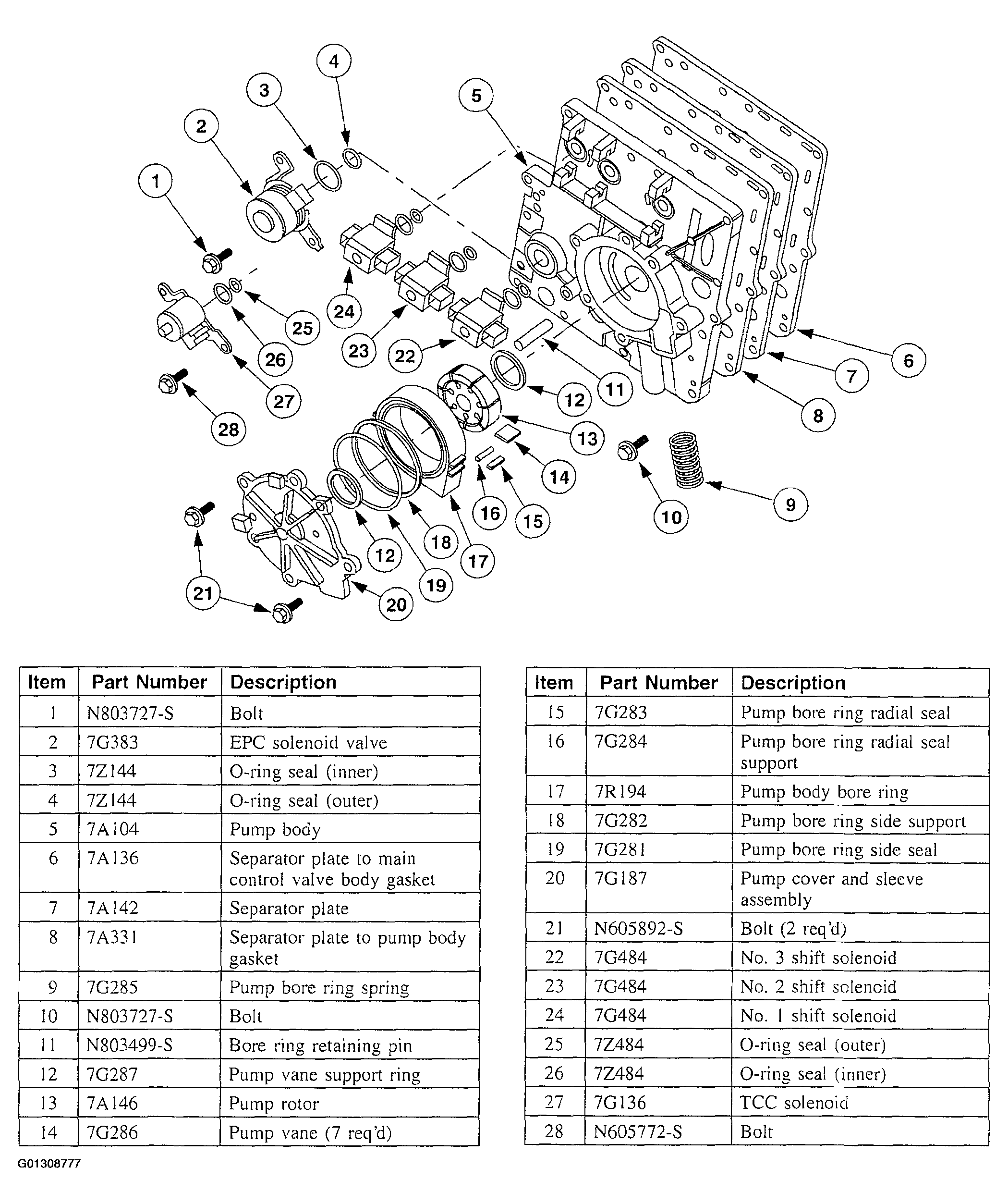

Pump Assembly
>>
Special Tool(s)
Special Tool(s)
Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
