Home
>>
Ford
>>
2003
>>
Windstar Base
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering System-General Information
>>
Description And Operation
>>
Steering System
>>
Steering System Components - 3.0L Engine (CII Power Steering Pump)
Steering System Components - 3.0L Engine (CII Power Steering Pump)

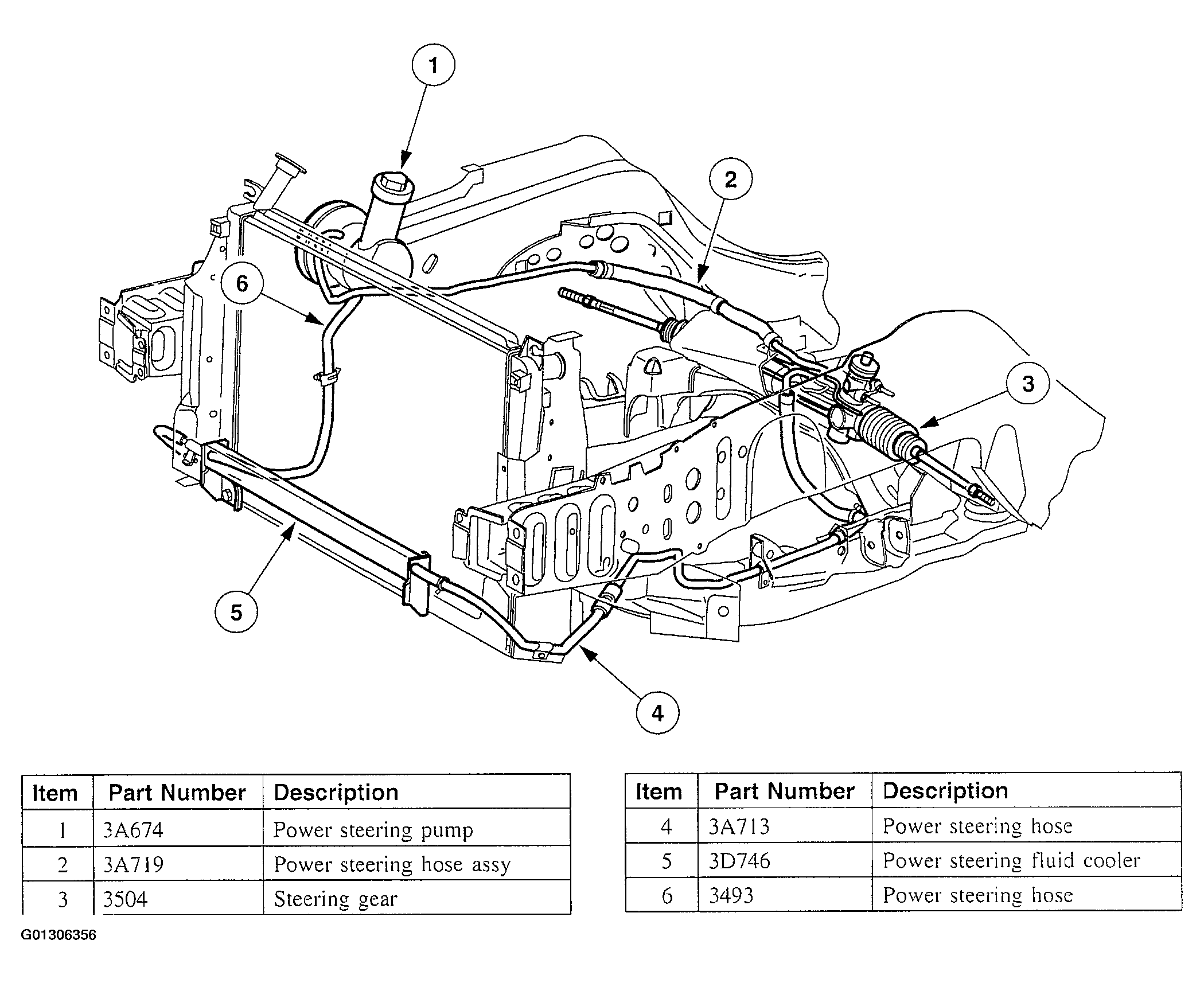

Fig 1: Identifying Steering System Components - 3.0 L Engine (CII Power Steering Pump)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
