Pulley - CIII Pump: Installation

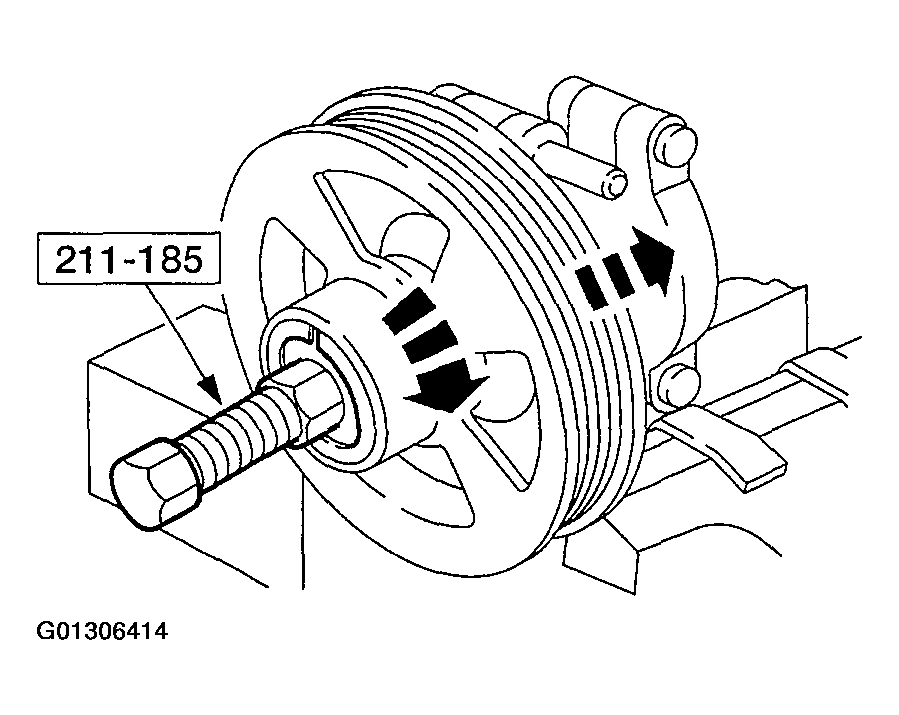

- Using the special tool, install the power steering pump pulley.
- Inspect the power steering pump pulley for paint marks in the web area near the hub. If there are two paint marks, discard and install a new power steering pump pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area near the hub.
- Install the power steering pump. For additional information, refer to PUMP - CIII .
