Pinpoint Test P: The Temperature Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls

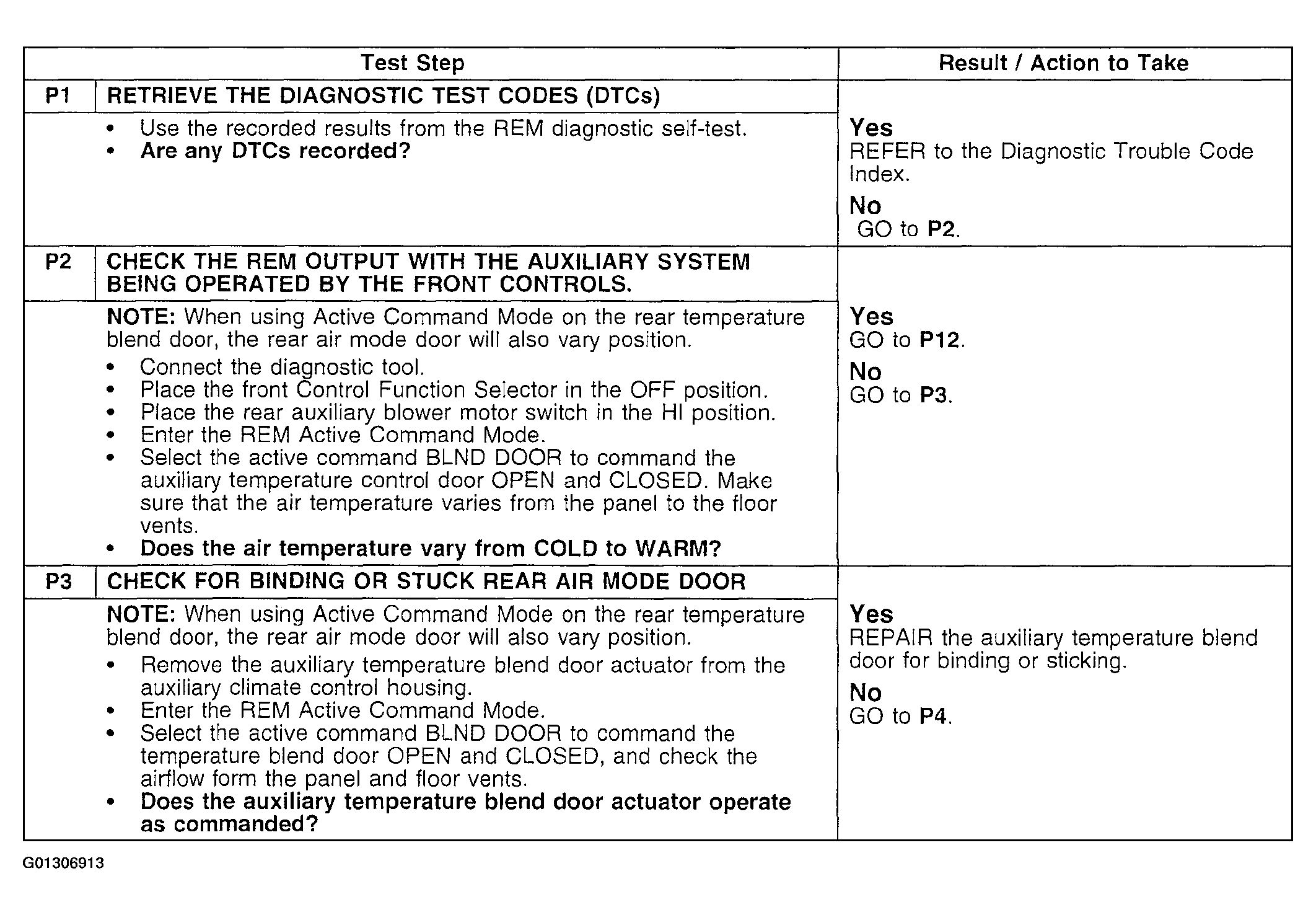

Fig 1: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P1-P3)

Courtesy of FORD MOTOR CO.

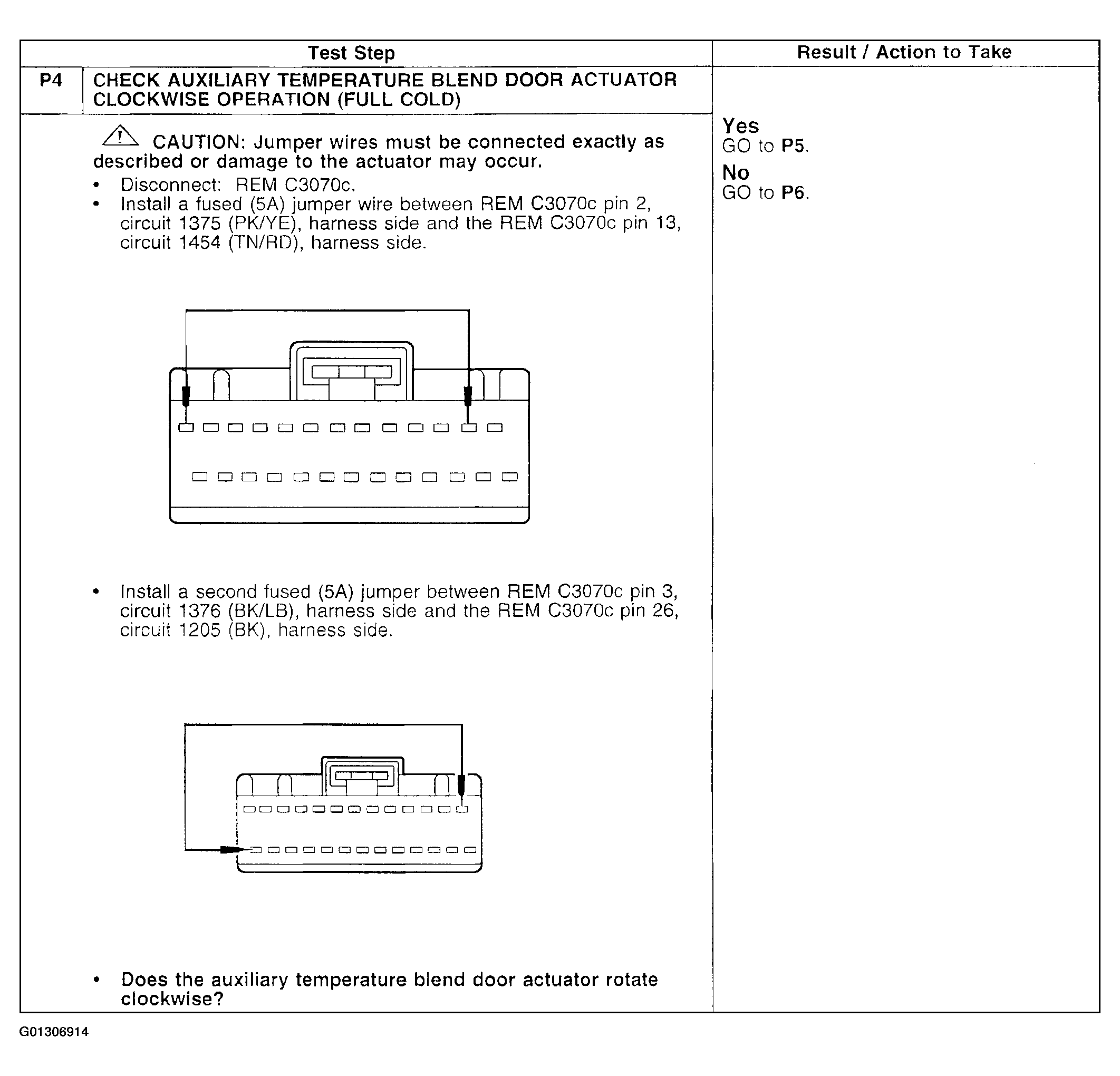

Fig 2: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P4)

Courtesy of FORD MOTOR CO.

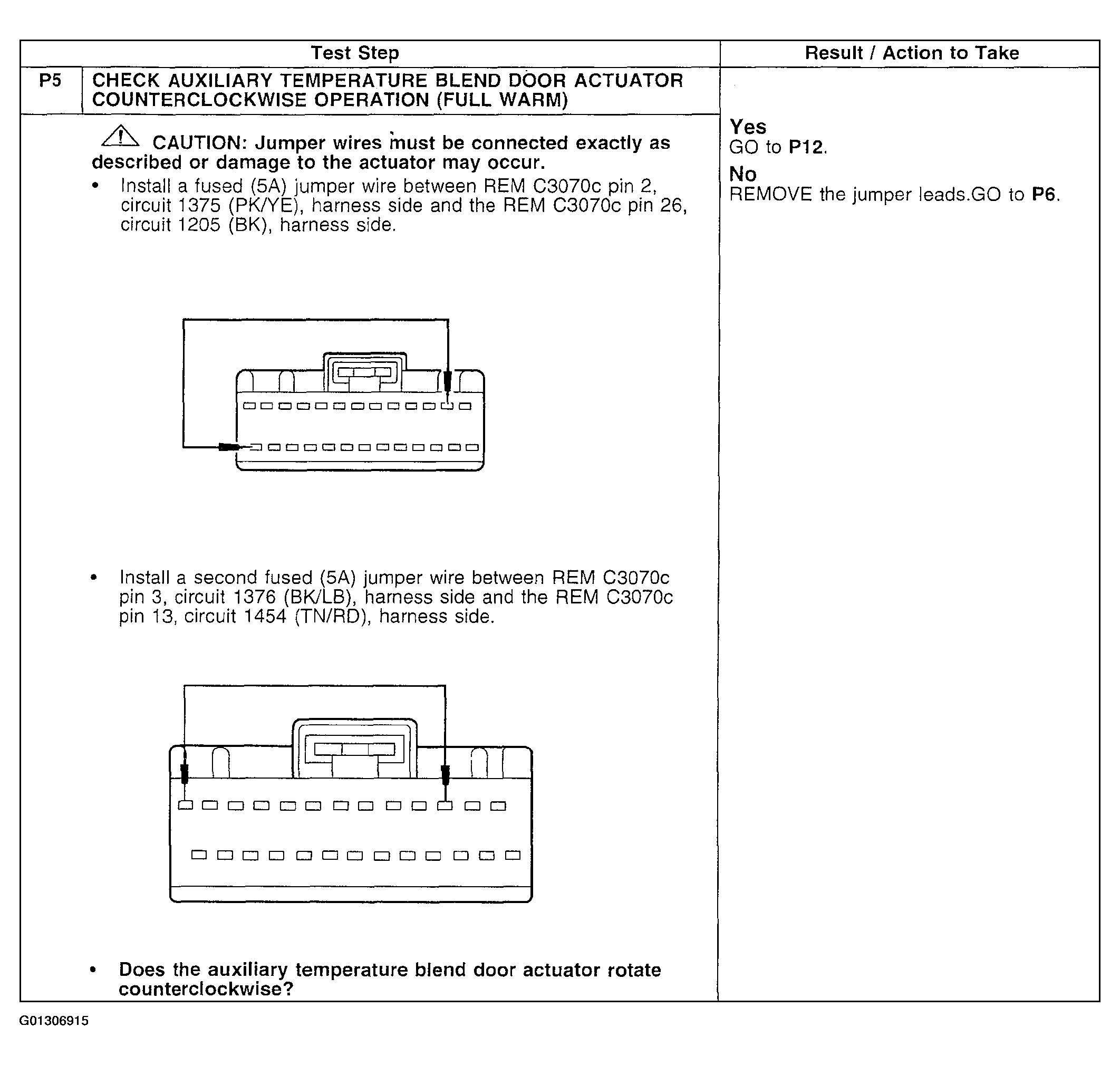

Fig 3: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P5)

Courtesy of FORD MOTOR CO.

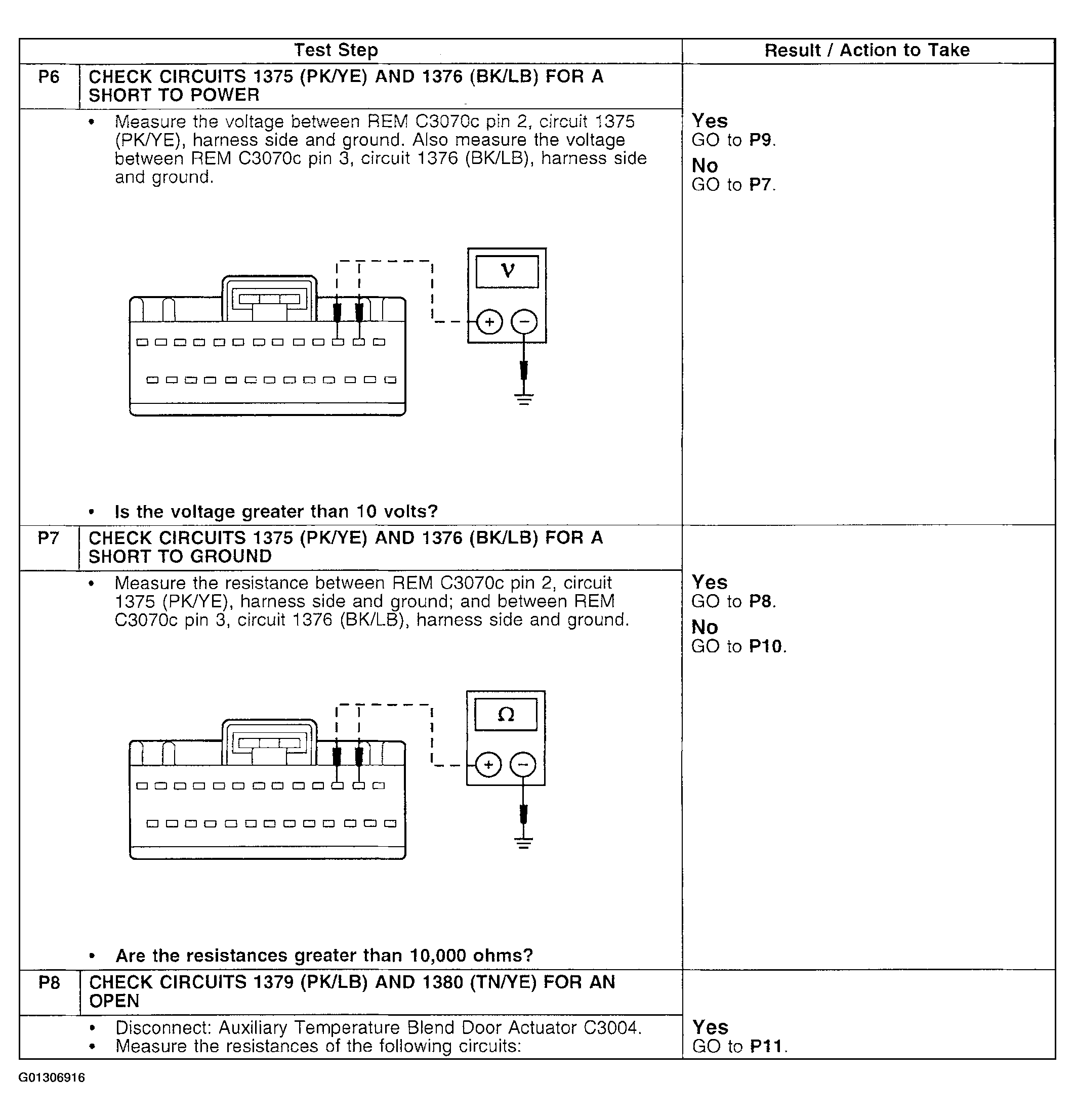

Fig 4: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P6-P8)

Courtesy of FORD MOTOR CO.

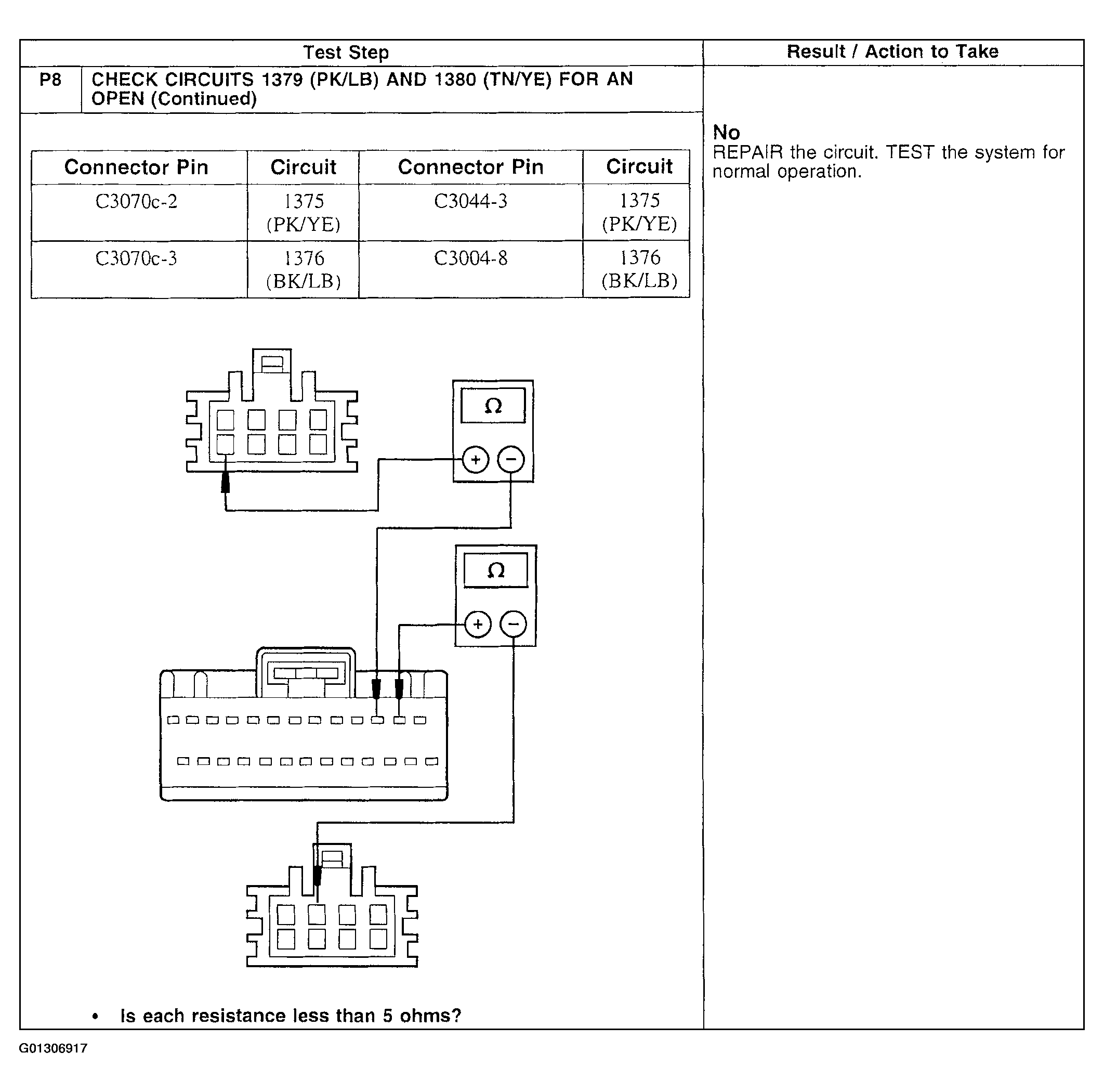

Fig 5: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P8 Cont.)

Courtesy of FORD MOTOR CO.

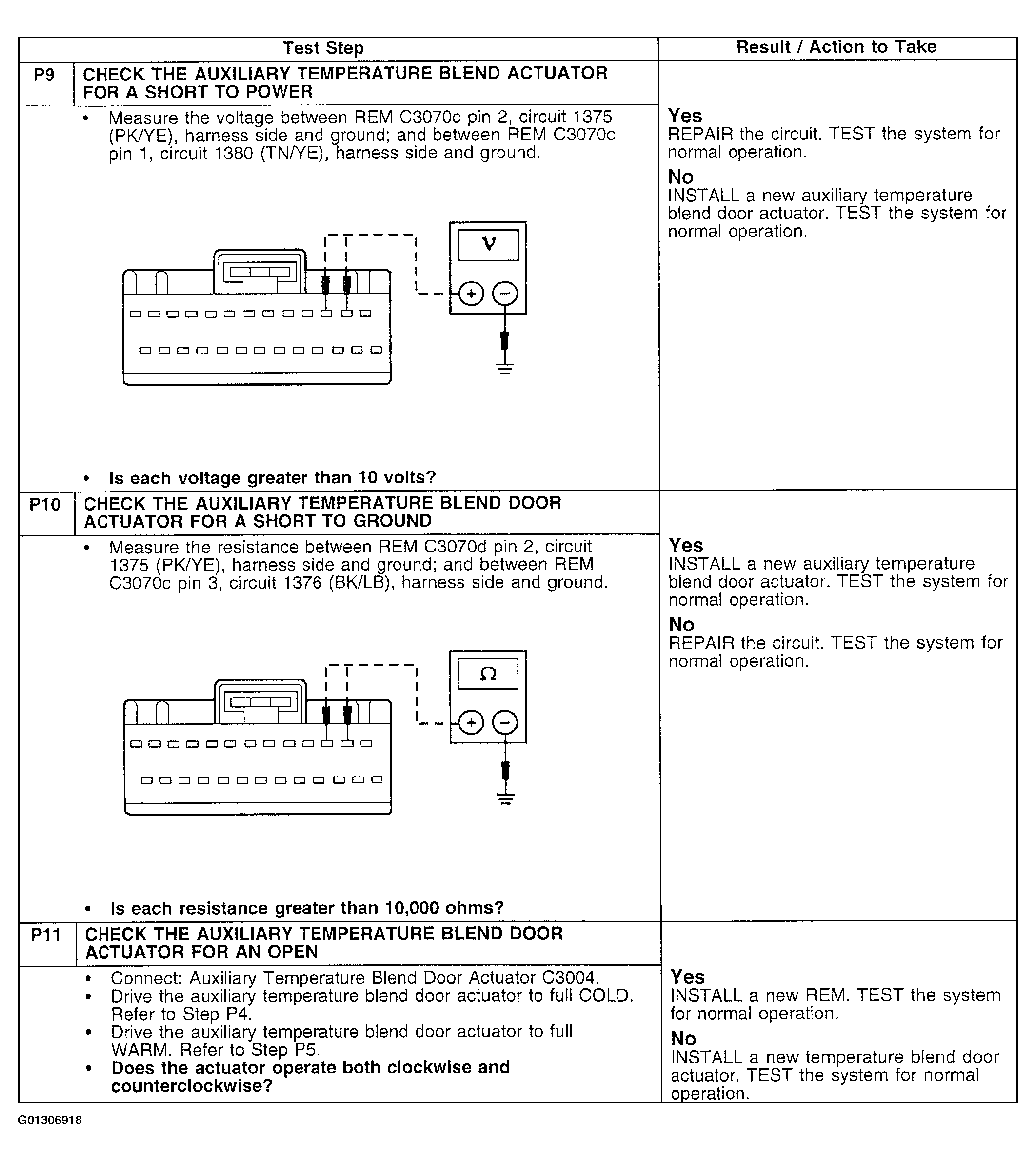

Fig 6: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P9-P11)

Courtesy of FORD MOTOR CO.

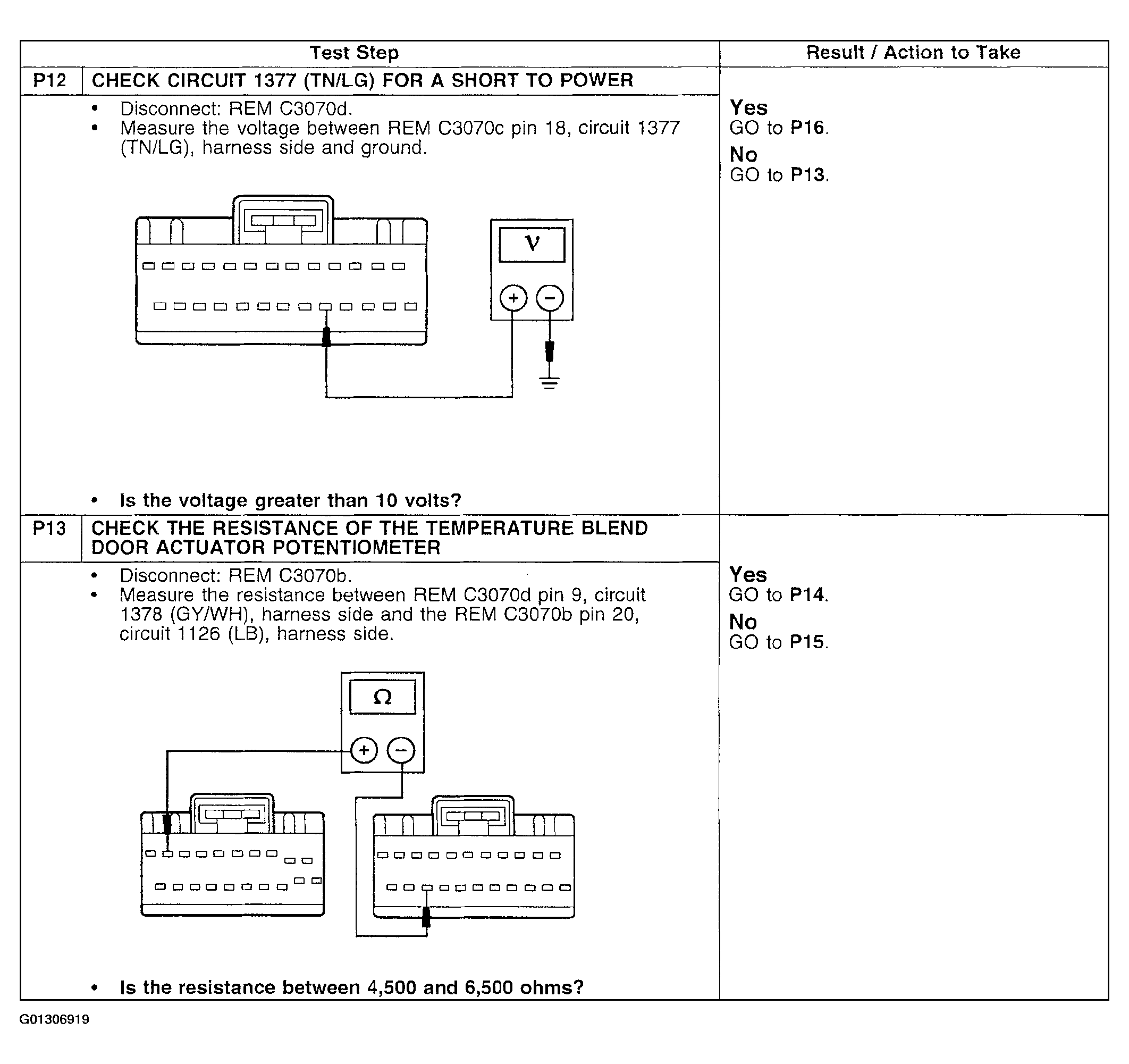

Fig 7: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P12-P13)

Courtesy of FORD MOTOR CO.

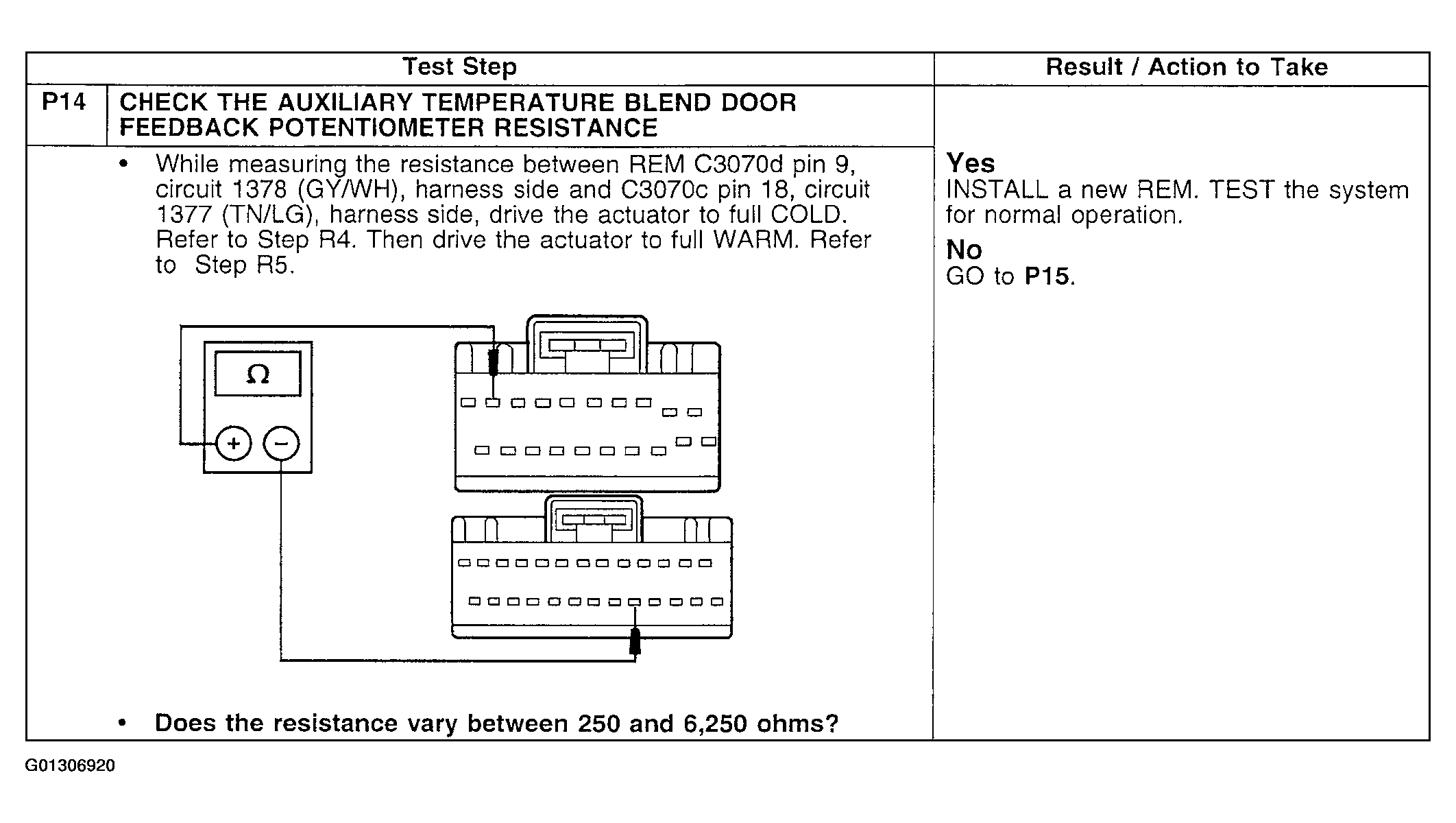

Fig 8: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P14)

Courtesy of FORD MOTOR CO.

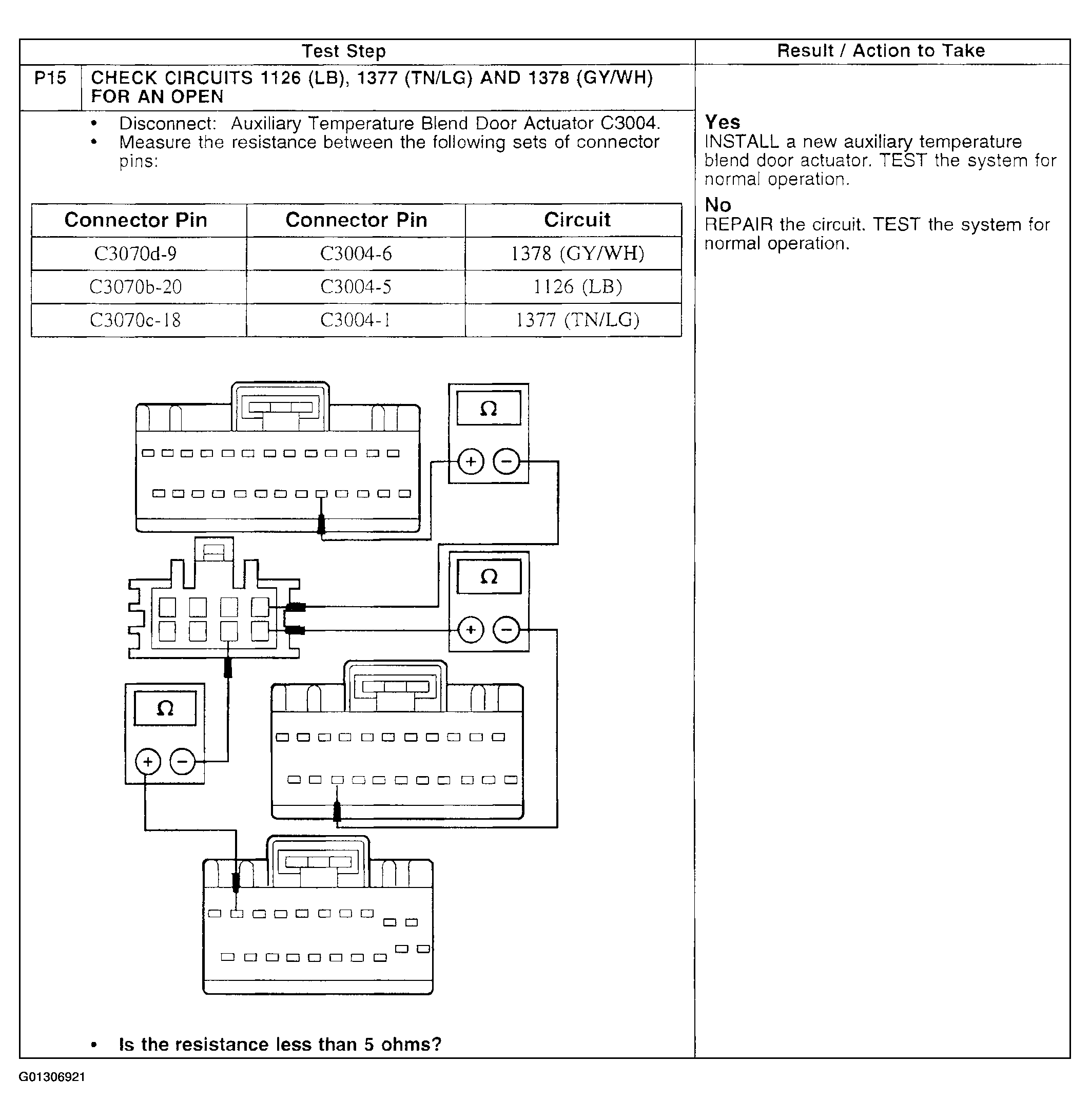

Fig 9: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P15)

Courtesy of FORD MOTOR CO.

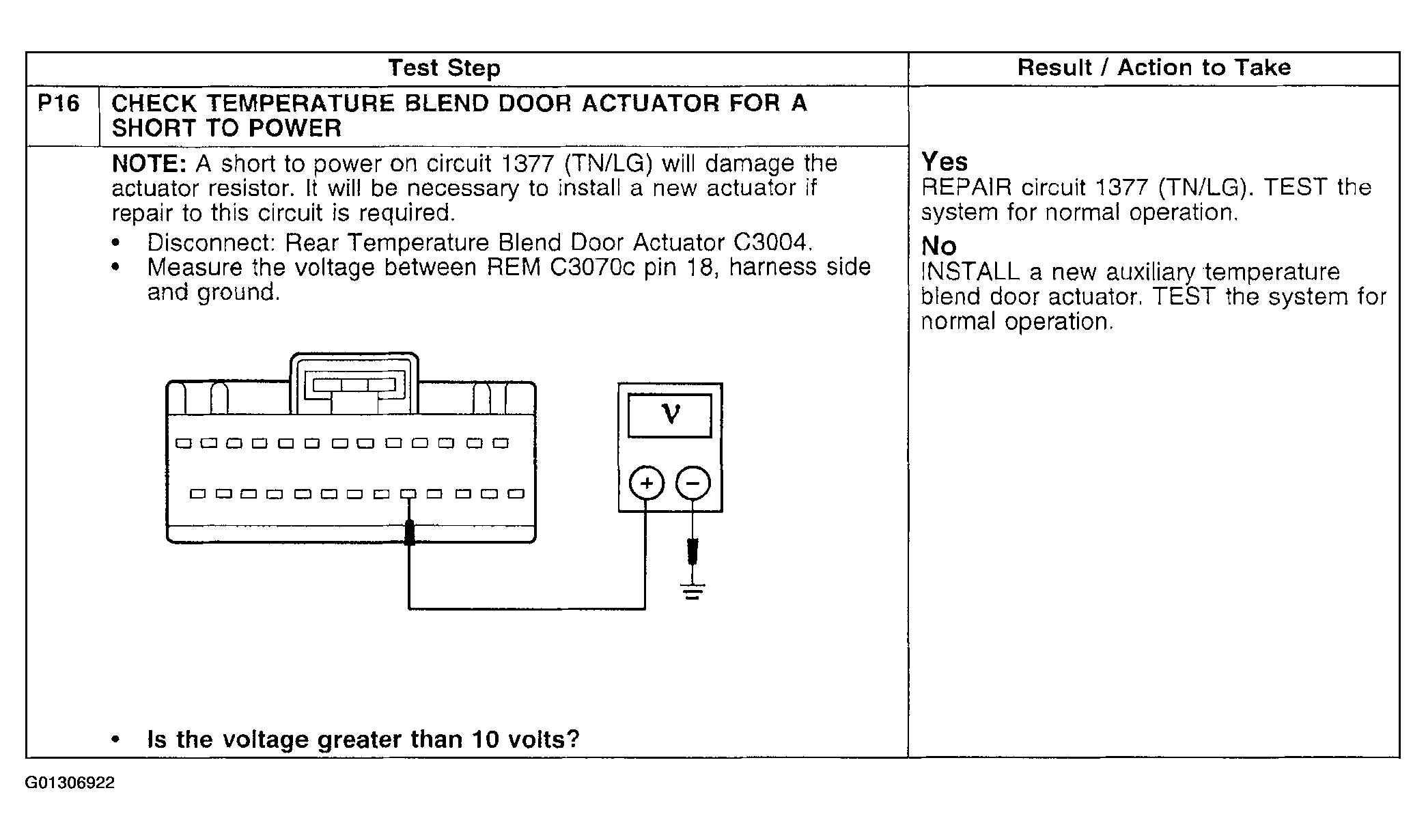

Fig 10: Pinpoint Test P: Temperature Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps P16)

Courtesy of FORD MOTOR CO.
