Pinpoint Test D: The Instrument Cluster Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

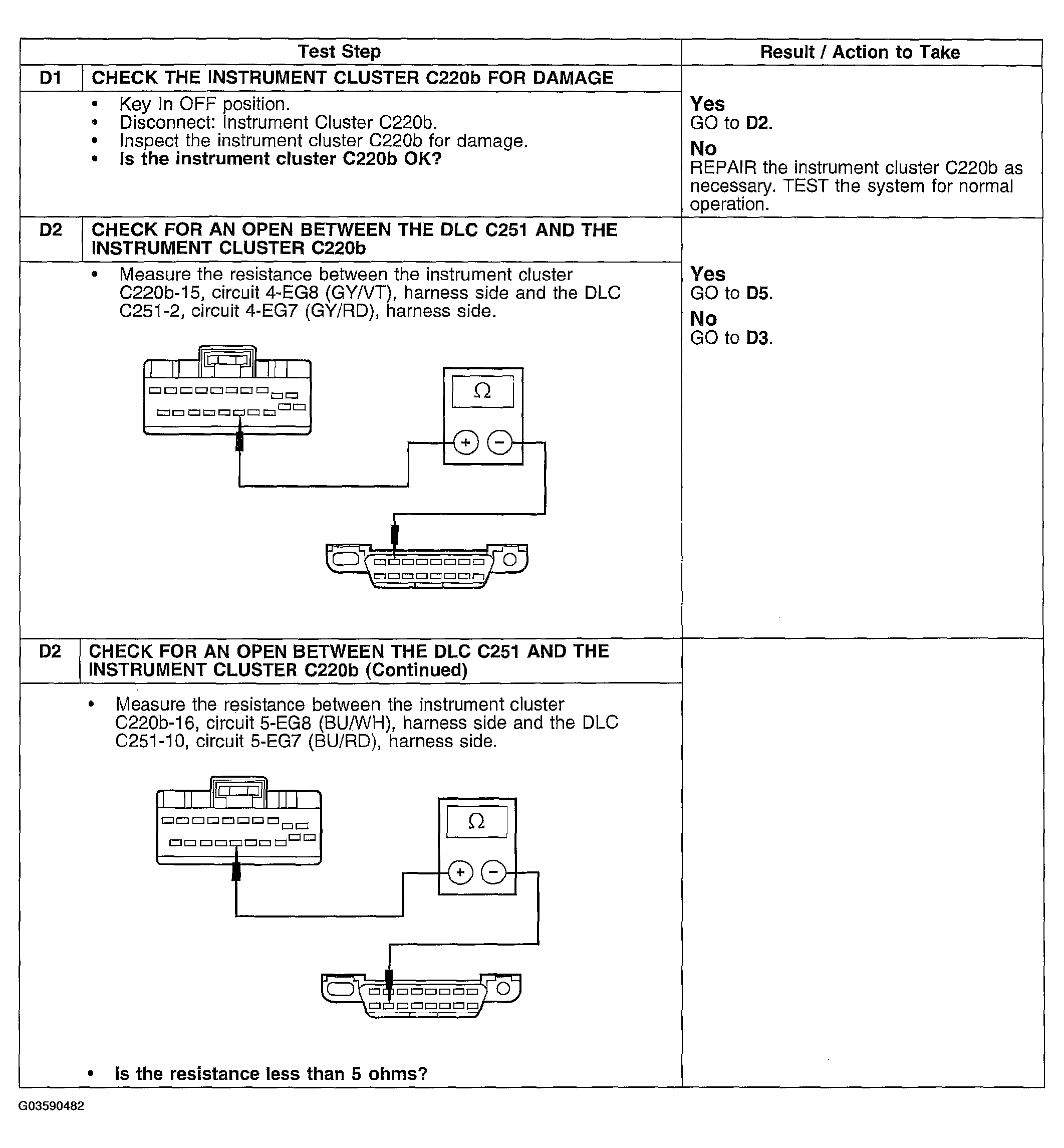

Fig 1: Pinpoint Test D: Instrument Cluster Does Not Respond To Diagnostic Tool (Step D1 - D2)

Courtesy of FORD MOTOR CO.

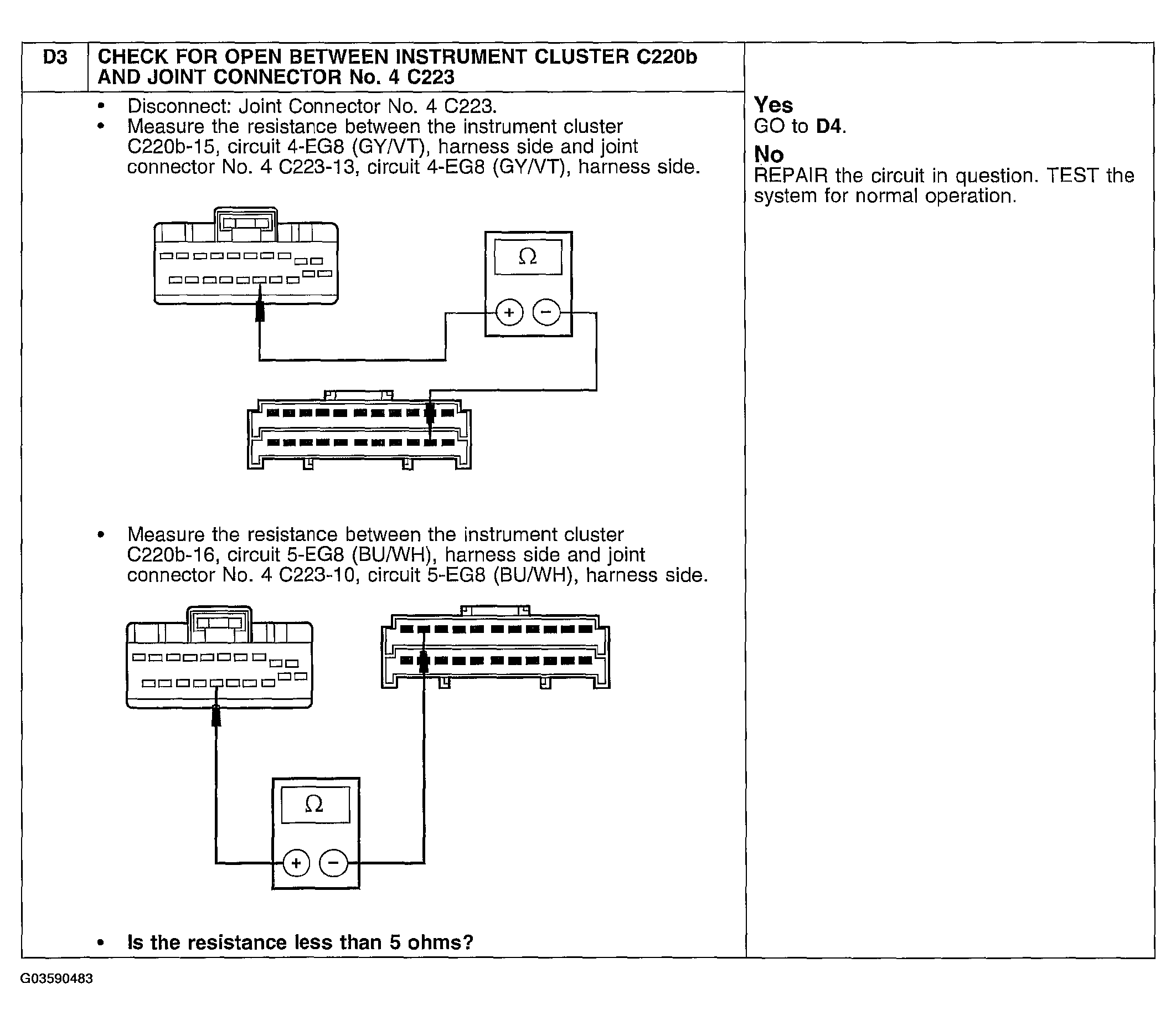

Fig 2: Pinpoint Test D: Instrument Cluster Does Not Respond To Diagnostic Tool (Step D2 - D3)

Courtesy of FORD MOTOR CO.

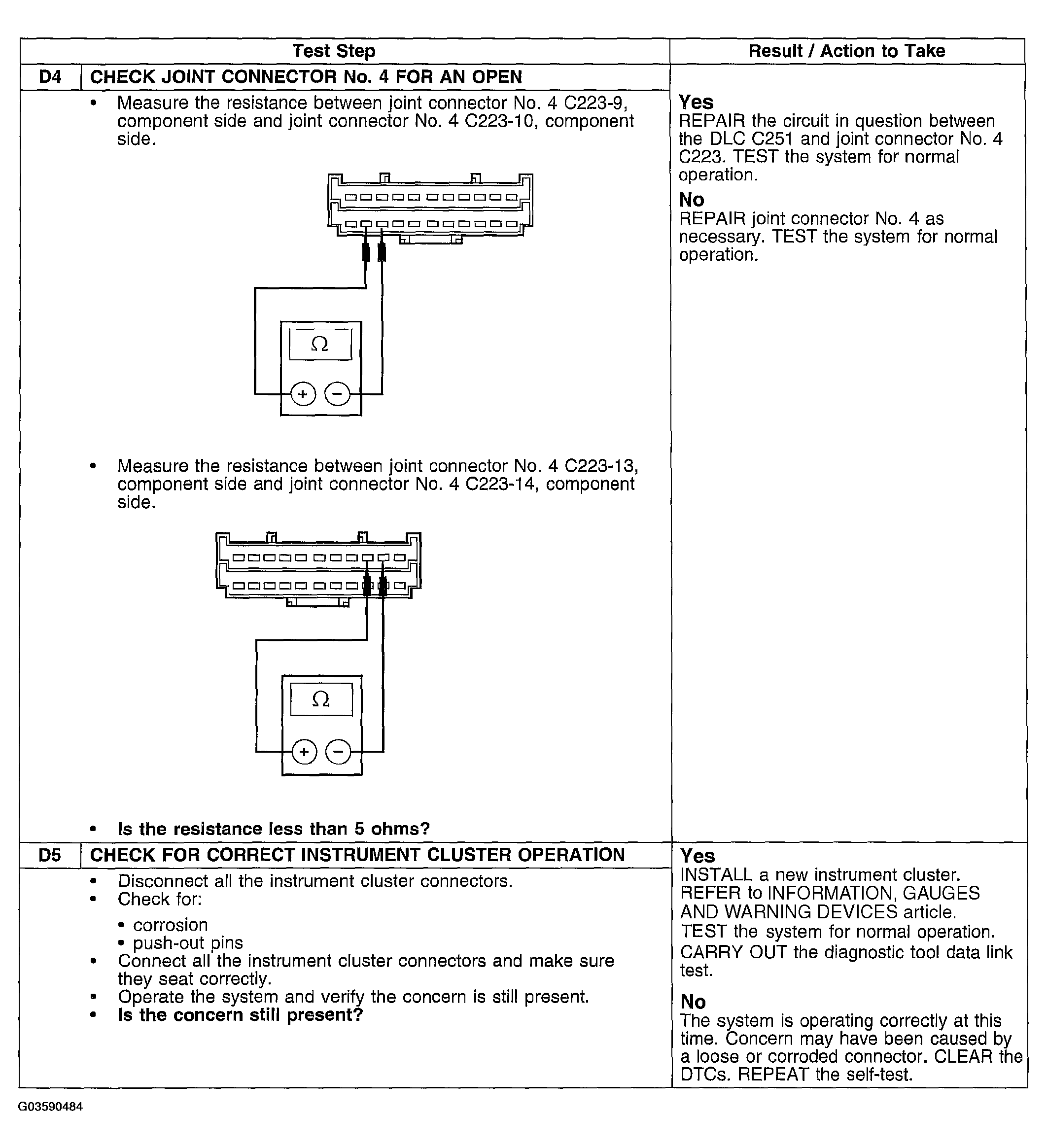

Fig 3: Pinpoint Test D: Instrument Cluster Does Not Respond To Diagnostic Tool (Step D4 - D5)

Courtesy of FORD MOTOR CO.
