Driver Seat Module - C341f

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

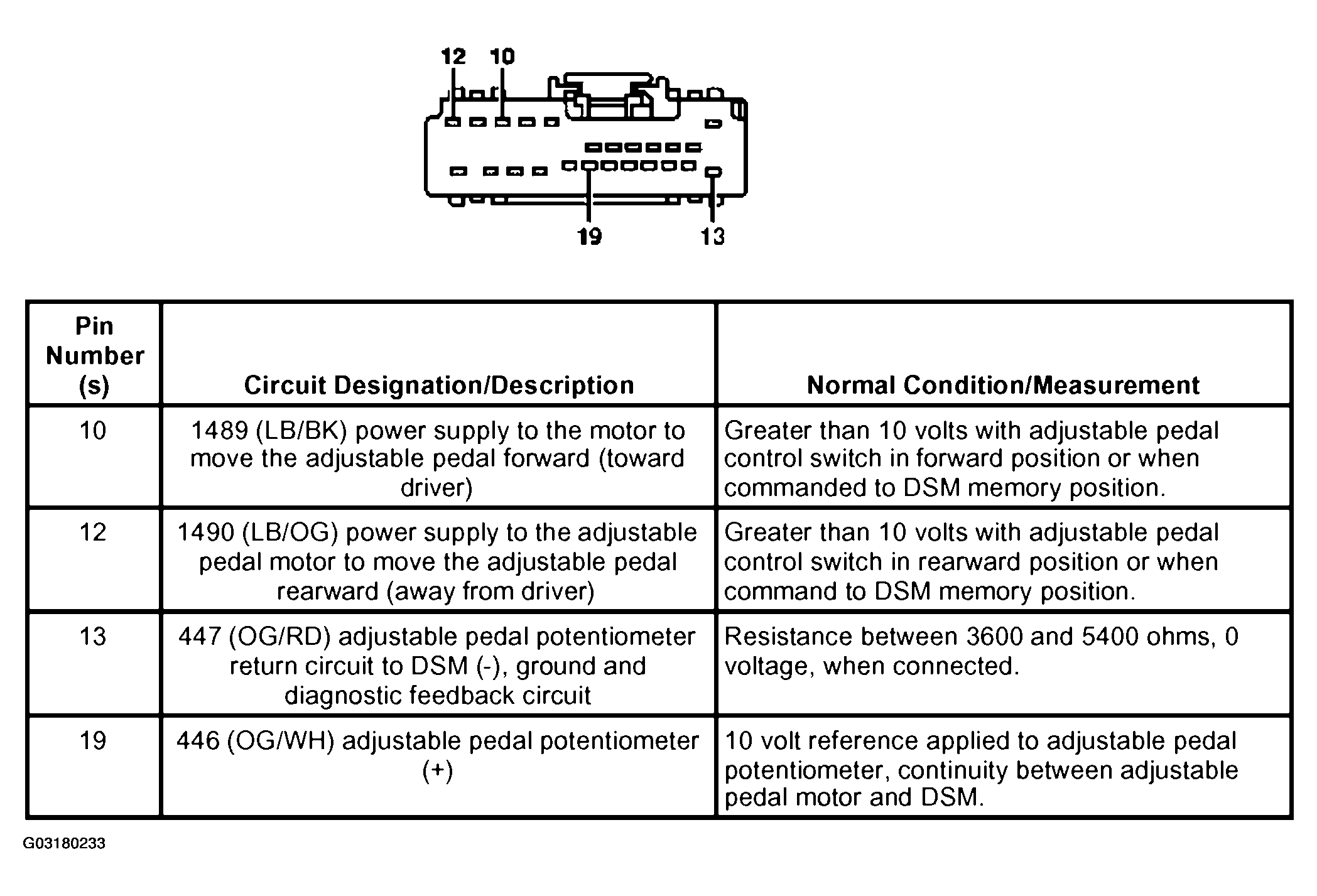

Fig 1: Identifying Driver Seat Module - C341F
G03180233Courtesy of FORD MOTOR CO.
