Switch - Overhead Console: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Use a shop towel or similar material between the overhead console and the switch to avoid damage to the overhead console.

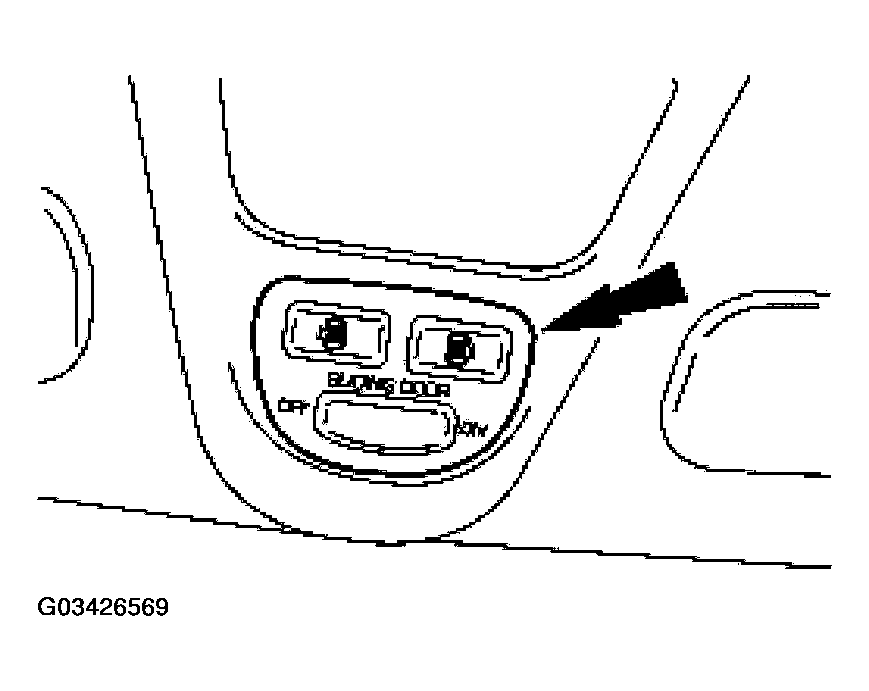

    Fig 1: Identifying Switch
    G03426569Courtesy of FORD MOTOR CO.
  1. Gently lift out the switch.
  2. Remove the switch.

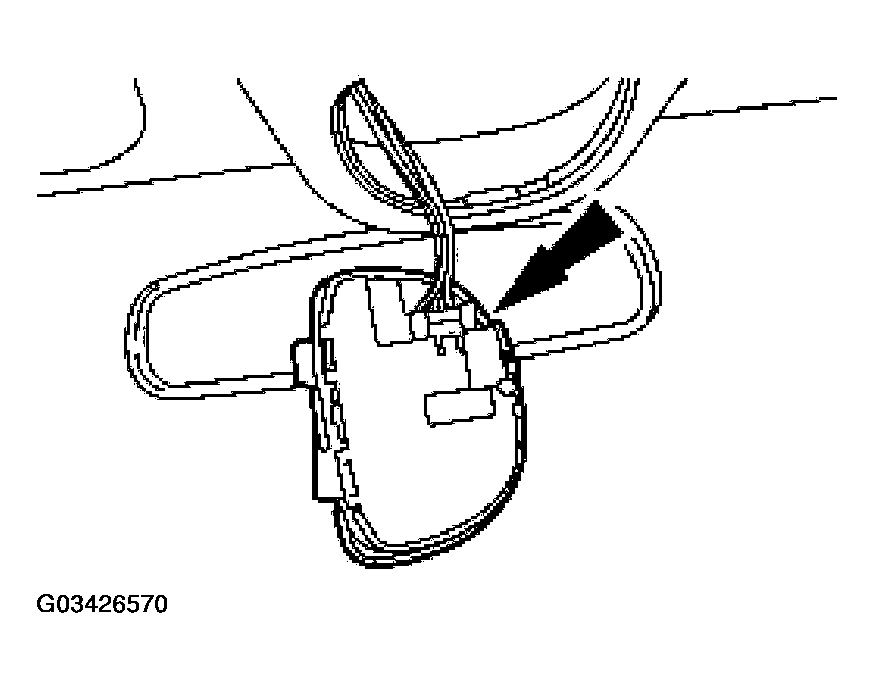

    Fig 2: Removing Switch
    G03426570Courtesy of FORD MOTOR CO.
