Multifunction Switch: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Twist the tilt wheel handle and shank (3F609) counterclockwise and remove.

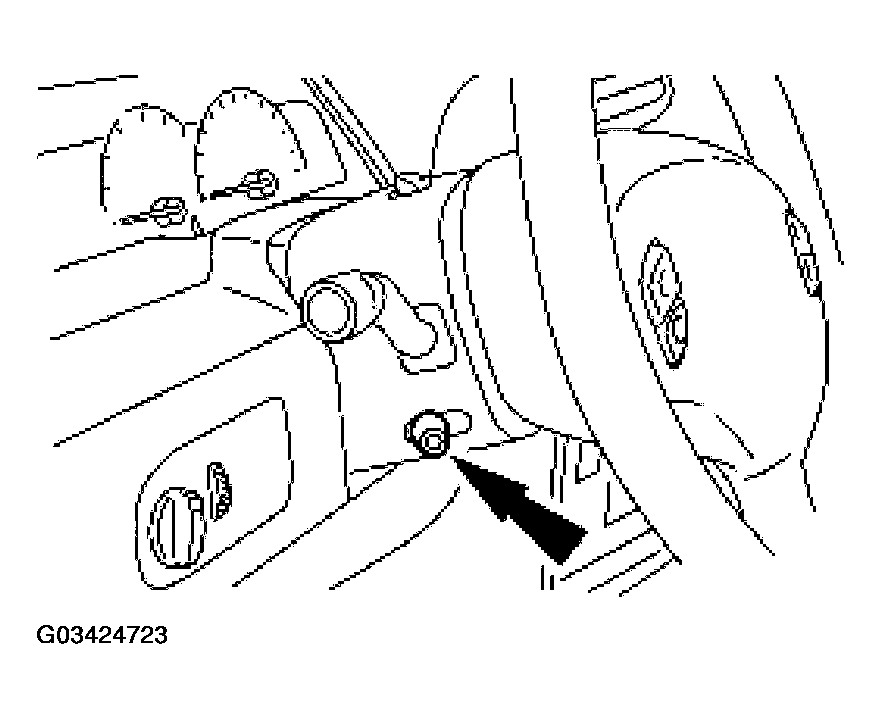

    Fig 1: Twisting Tilt Wheel Handle
    G03424723Courtesy of FORD MOTOR CO.
  3. Remove the upper and lower steering column shrouds.
    1. Remove the screws.
    2. Remove the upper and lower steering column shrouds.
      Fig 2: Removing Upper And Lower Steering Column Shrouds
      G03424724Courtesy of FORD MOTOR CO.
  4. Remove the multifunction switch.
    1. Remove the screws.
    2. Disconnect the electrical connectors.
    3. Remove the multifunction switch.

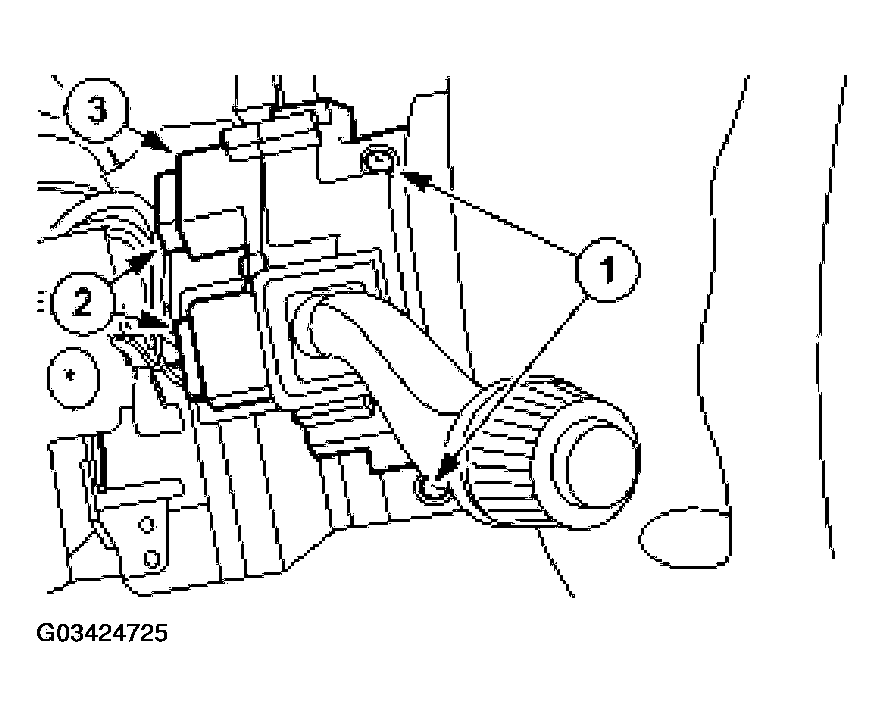

      Fig 3: Removing Multifunction Switch
      G03424725Courtesy of FORD MOTOR CO.
