Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the front wheels are in the straight-ahead position.

Disconnect the battery.
Remove the steering wheel assembly. Refer to WHEEL .
Twist off the cap from the ignition switch cylinder.

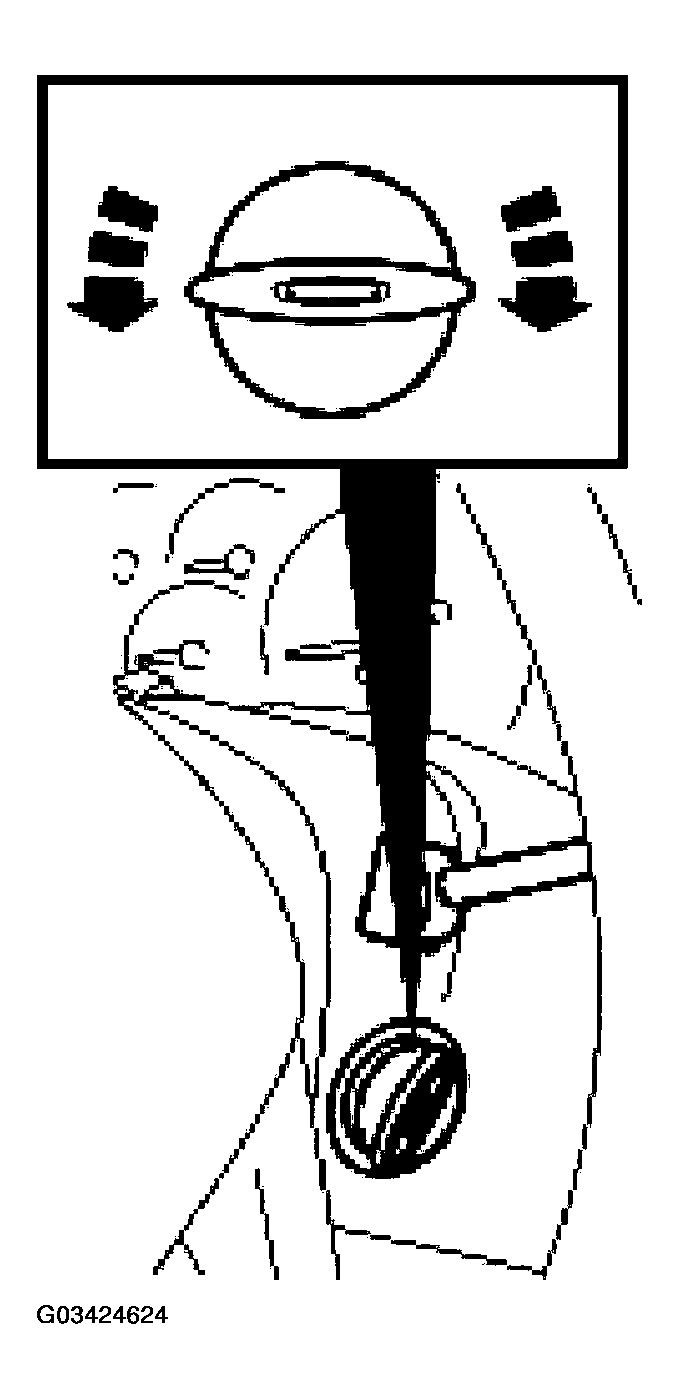

Fig 1: Twisting Off Cap From Ignition Switch Cylinder
Courtesy of FORD MOTOR CO.

NOTE: The lock cylinder is repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair package (F85Z-11582-AA). The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

Remove the ignition switch lock cylinder.
- Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.
- Use a 3/8-inch drill bit to drill down the middle of the ignition lock key slot until the ignition switch lock cylinder breaks loose.
- Remove and discard the ignition switch lock cylinder and clean the drill shavings from the steering column.

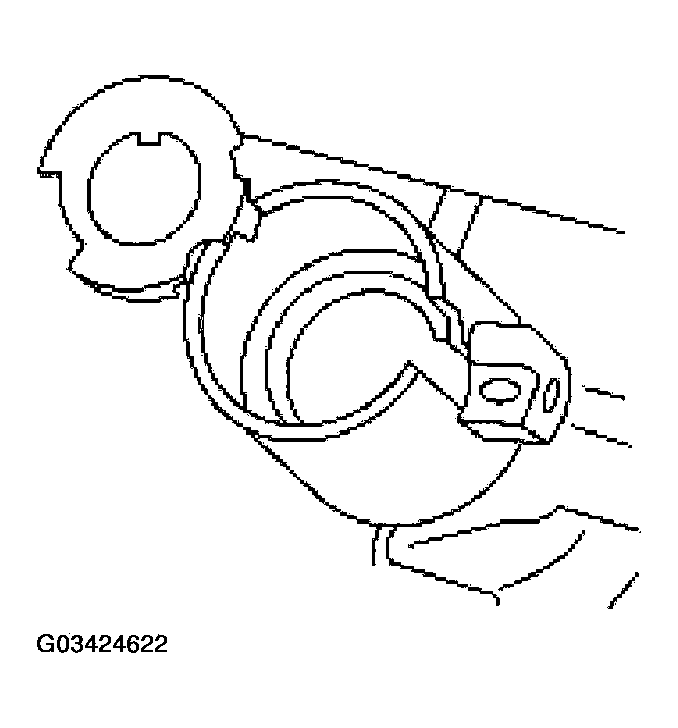

  Fig 2: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
Remove the bearing retainer.

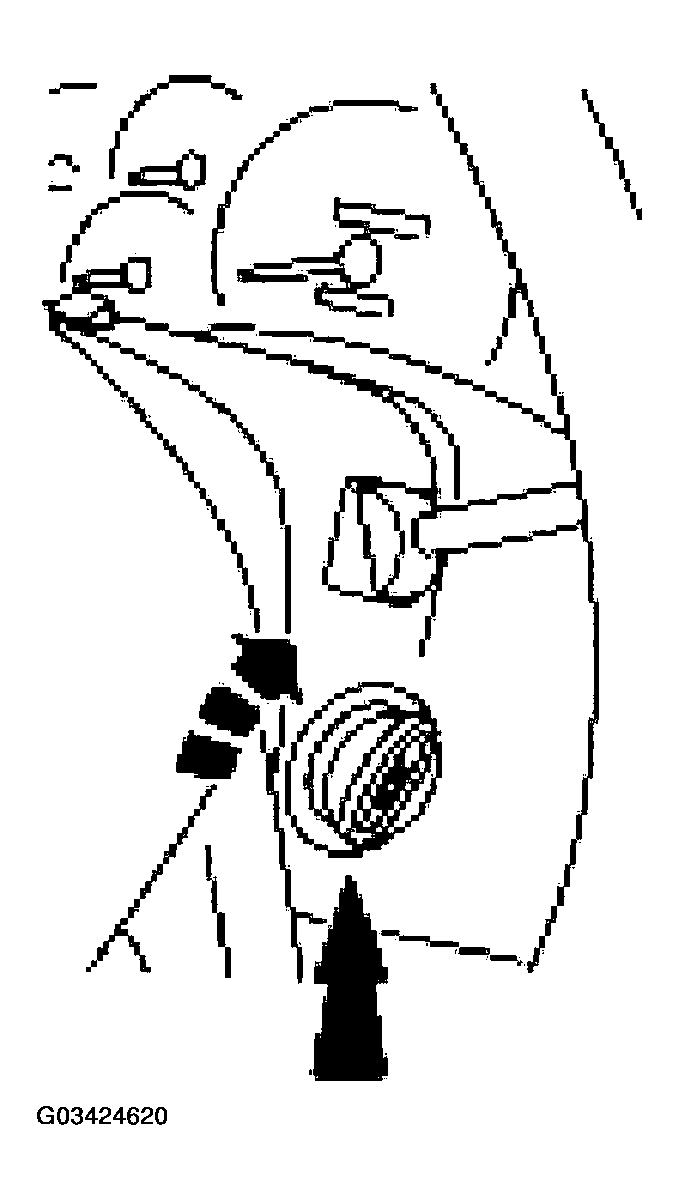

Fig 3: Removing Bearing Retainer
Courtesy of FORD MOTOR CO.
Remove the bearing and gear.
- Thoroughly clean all drill shavings from the steering column and inspect it for damage.

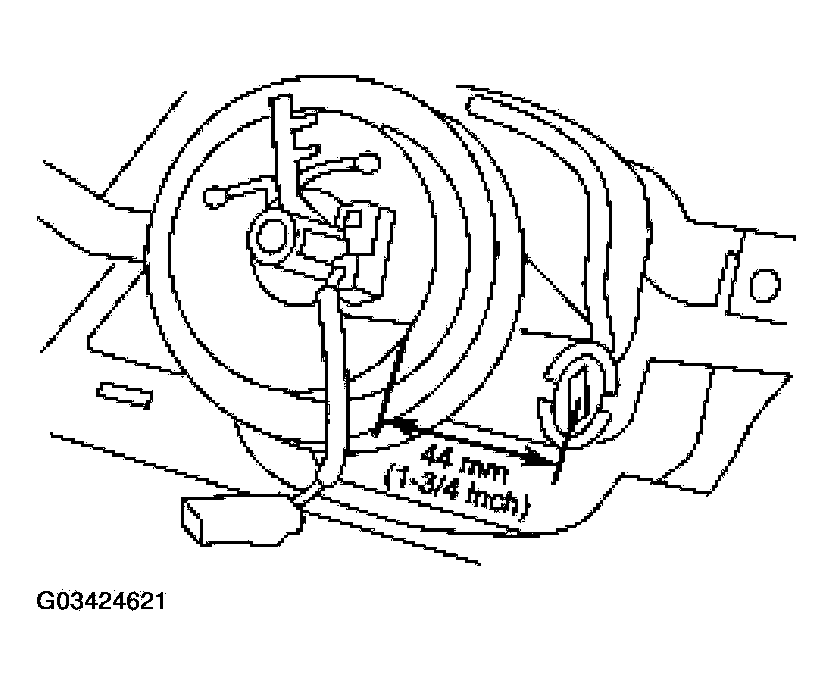

  Fig 4: Removing Bearing And Gear
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new ignition switch lock cylinder.
- Verify ignition switch lock cylinder operation.

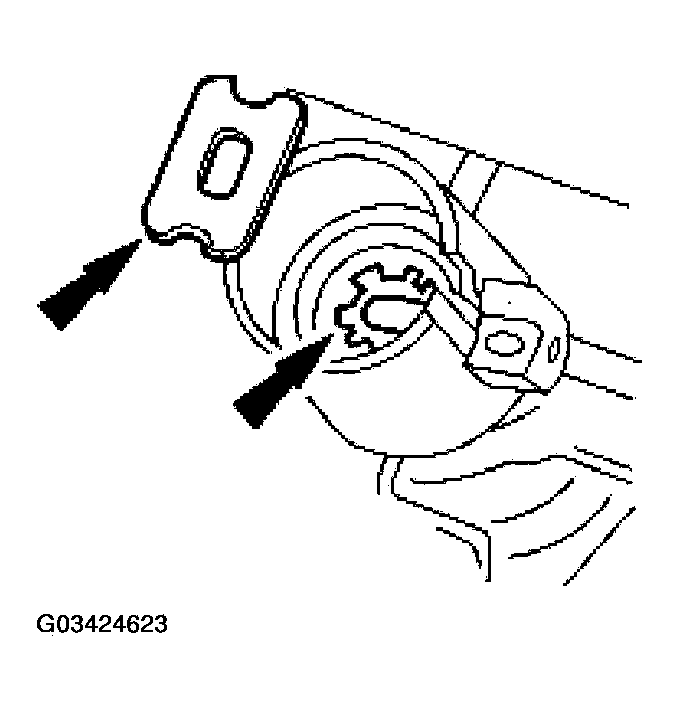

  Fig 5: Installing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
Connect the battery.
