Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery.
Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.
2. While pressing in the ignition switch lock cylinder release pin, pull the lock cylinder out of the steering column.

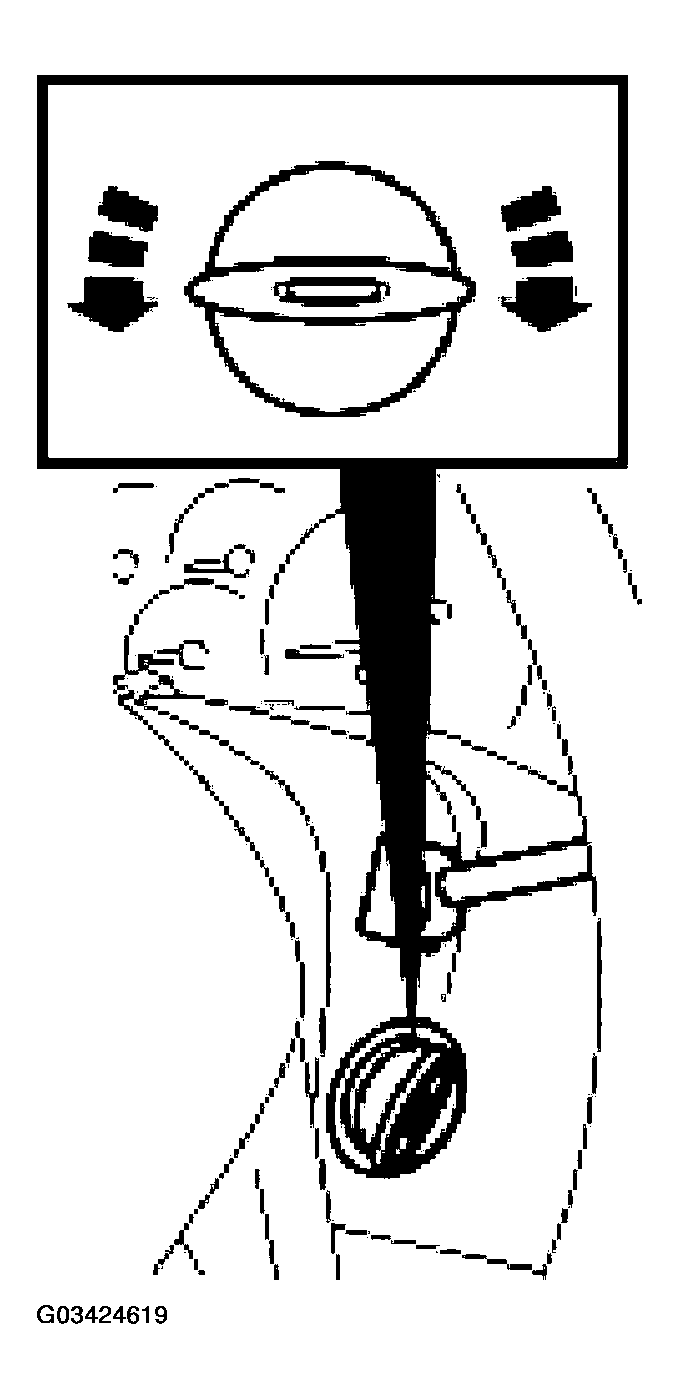

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify the ignition switch lock cylinder operation.

  Fig 2: Identifying ignition switch lock cylinder operation
  Courtesy of FORD MOTOR CO.
