Rear Seat: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order listed in the following 2 illustration and table. To remove individual components, only carry out the listed steps:

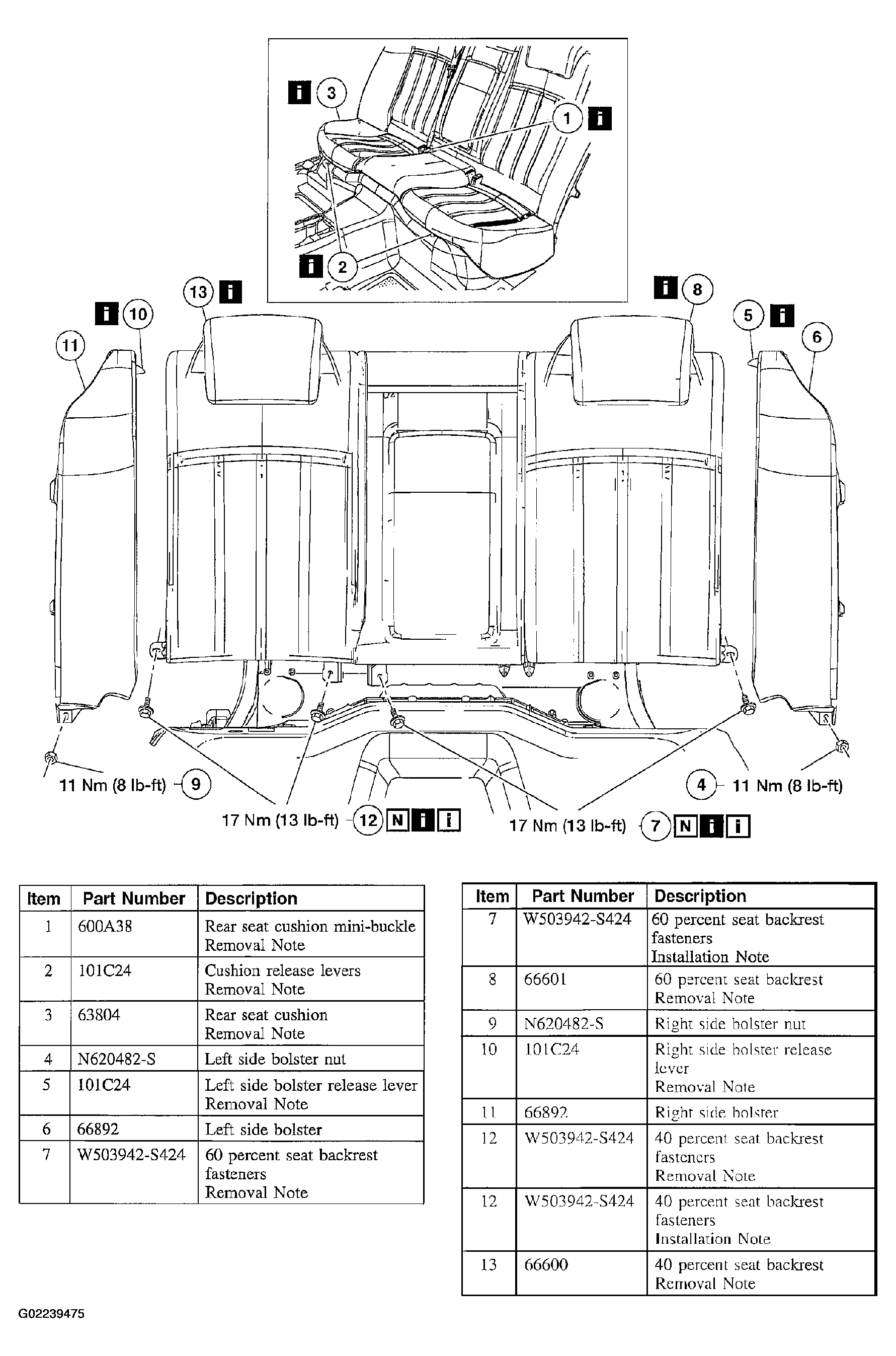

Fig 1: Components List
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 2: Locating Rear Seat Components
Courtesy of FORD MOTOR CO.
Check the active restraint system for correct operation. For additional information, Refer to SAFETY BELT SYSTEM .
