Roof Opening Panel: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner. For additional information, Refer to HEADLINER .
To remove individual components only, carry out the listed steps.

Fig 1: Components Stepping Chart
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in Fig 2.

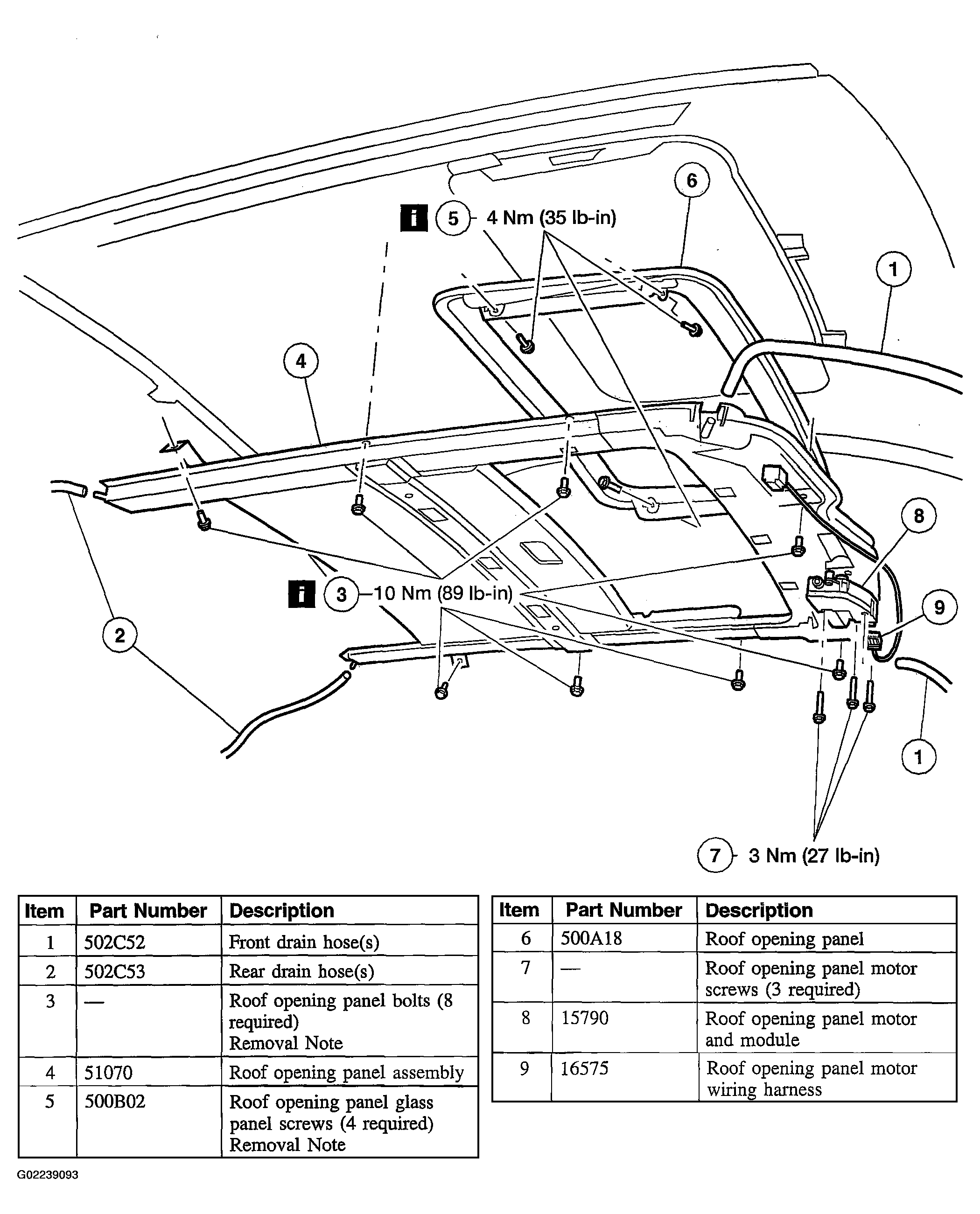

Fig 2: Identifying Roof Opening Panel Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
