Item 59: Center Support Assembly Inspection Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The center support is repaired as an assembly. Any damage requires installing a new component.

Inspect the center support assembly for wear or damage.
1. Inspect the thrust surfaces for wear, scoring or damage.
2. Inspect the center support sealing surface.
3. Inspect the fluid passage for blockage or damage.

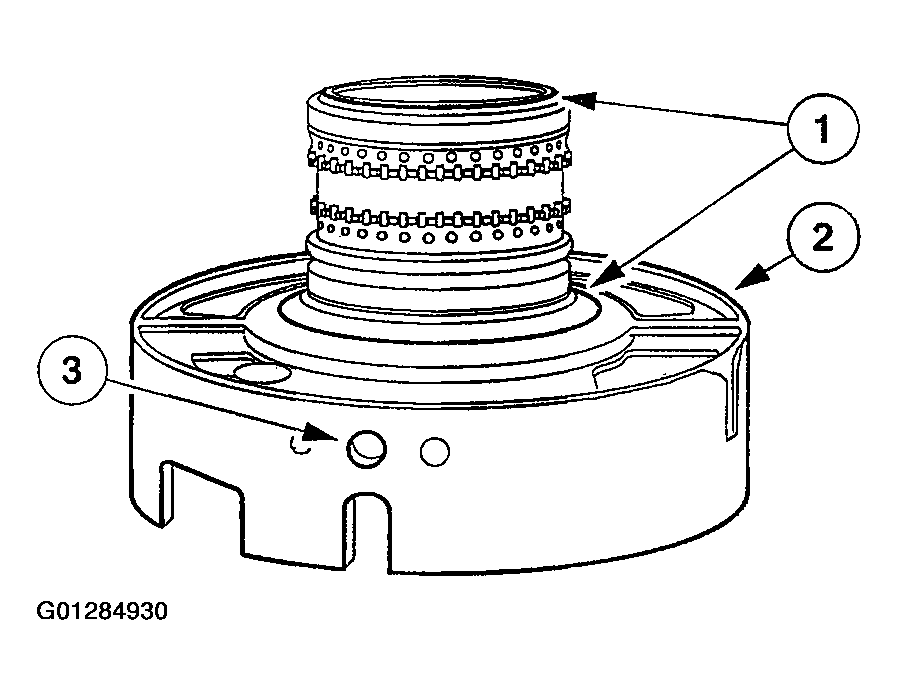

Fig 1: Inspecting Center Support Assembly
Courtesy of FORD MOTOR CO.

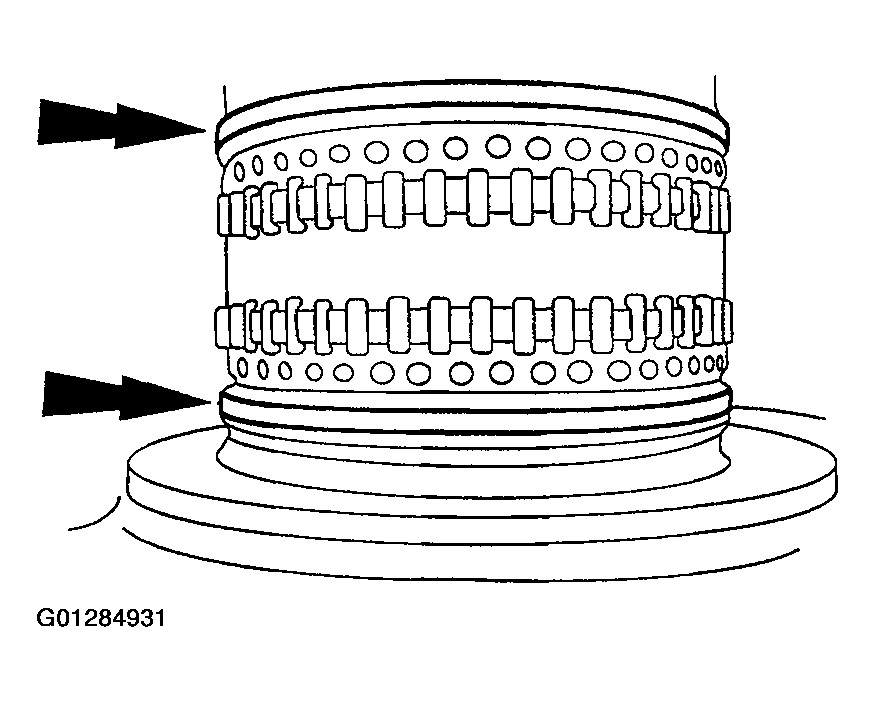

Inspect the seal rings for damage.

Fig 2: Inspecting Seal Rings
Courtesy of FORD MOTOR CO.
Inspect the bearing for missing rollers or damage.

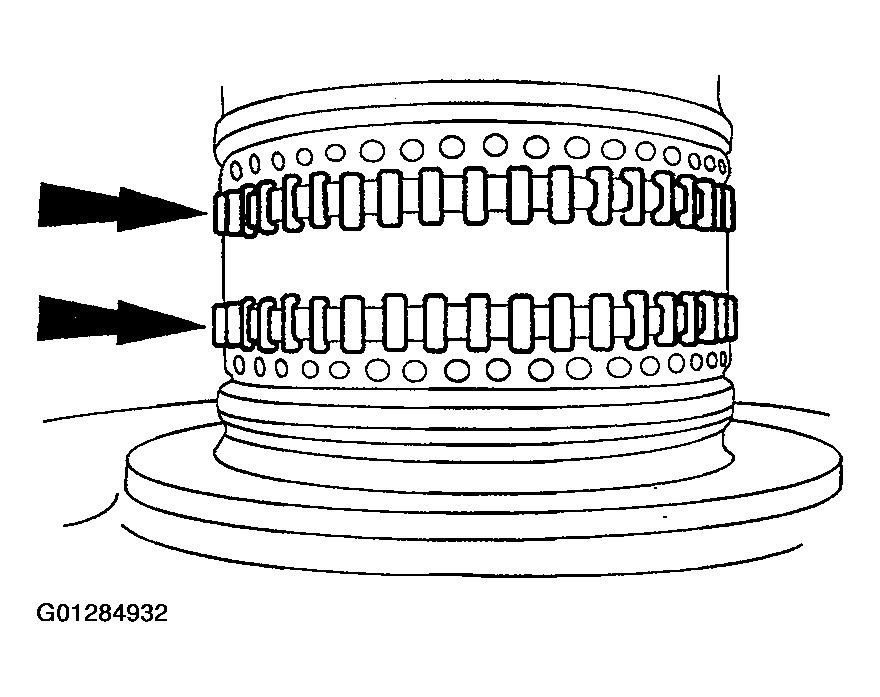

Fig 3: Inspecting Bearing For Missing Rollers Or Damage
Courtesy of FORD MOTOR CO.
Inspect the direct clutch feed hole for blockage or damage.
1. Rotate center support bearing to locate the direct clutch feed hole.
2. Inspect the direct clutch feed hole for blockage or damage.

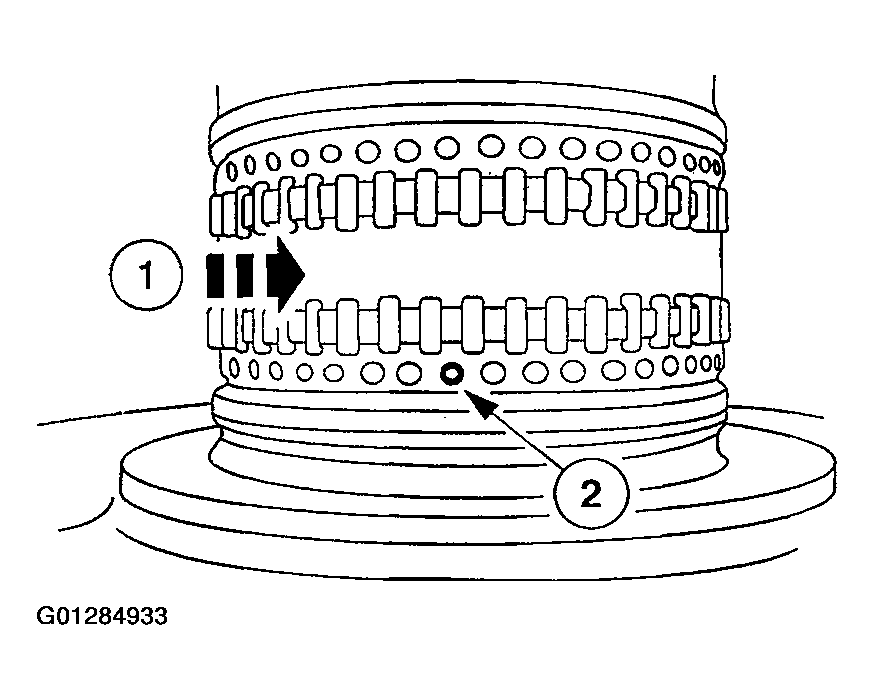

Fig 4: Inspecting Direct Clutch Feed Hole
Courtesy of FORD MOTOR CO.
