Item 1: Retaining Ring Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Make sure the cylinder is facing down as shown. Failure to follow these instructions may result in personal injury.

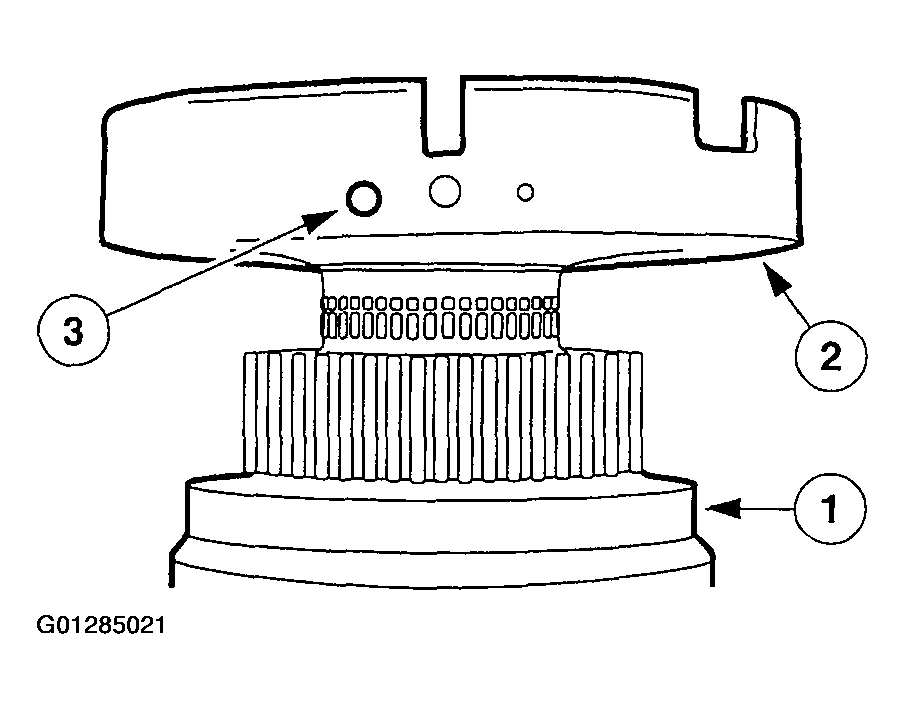

    Fig 1: Applying Air Pressure To Left Port Of Center Support
    G01285021Courtesy of FORD MOTOR CO.
  1. Air check the forward clutch piston.
    1. Place the forward clutch cylinder with forward clutch piston facing down.
    2. Install the transmission center support on the forward clutch cylinder.
    3. Apply air pressure to the left port of the center support.
  2. Check forward clutch disc pack free play.
    1. Press down on forward clutch disc pack.
    2. Using a feeler gauge, check the gap between the forward clutch retaining ring and the forward clutch pressure plate.
      • If the clearance is not within specifications, install the correct size retaining ring.

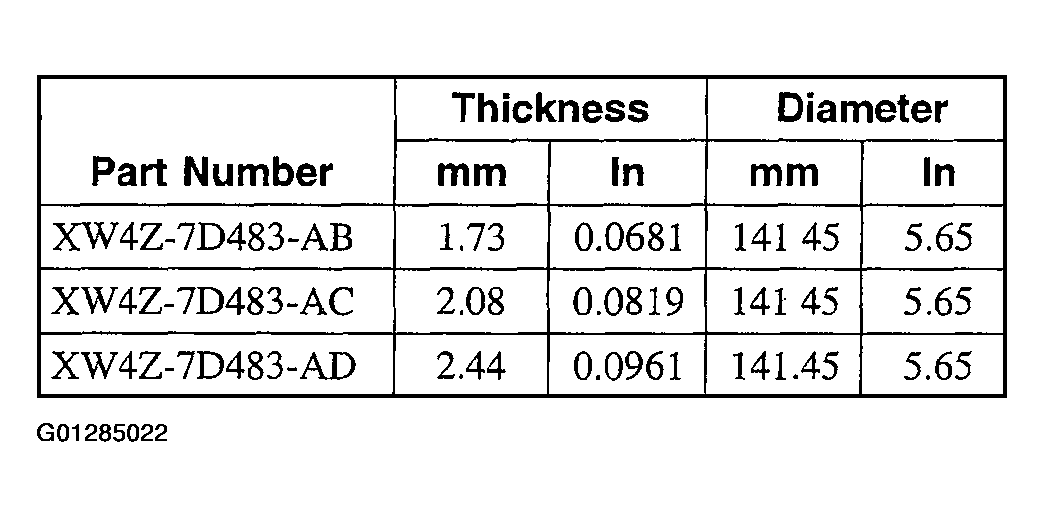

        Fig 2: Thickness Specification
        G01285022Courtesy of FORD MOTOR CO.

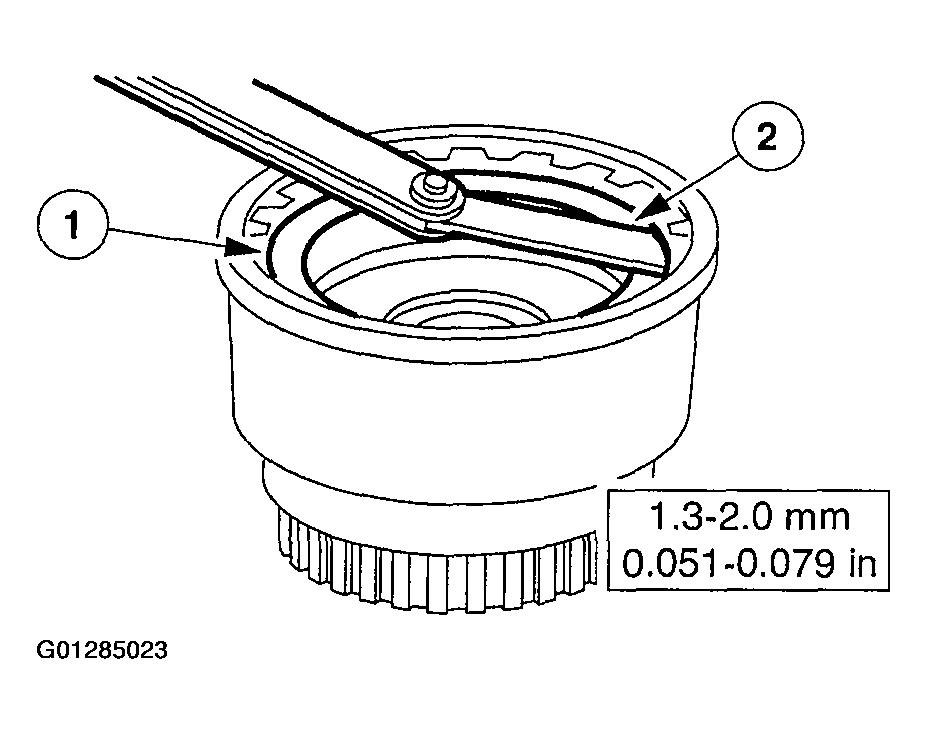

        Fig 3: Checking Gap Between Forward Clutch Retaining Ring And Forward Clutch Pressure Plate
        G01285023Courtesy of FORD MOTOR CO.
