Section 225 (Automatic Transmission - LS): Assembly: Transmission: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

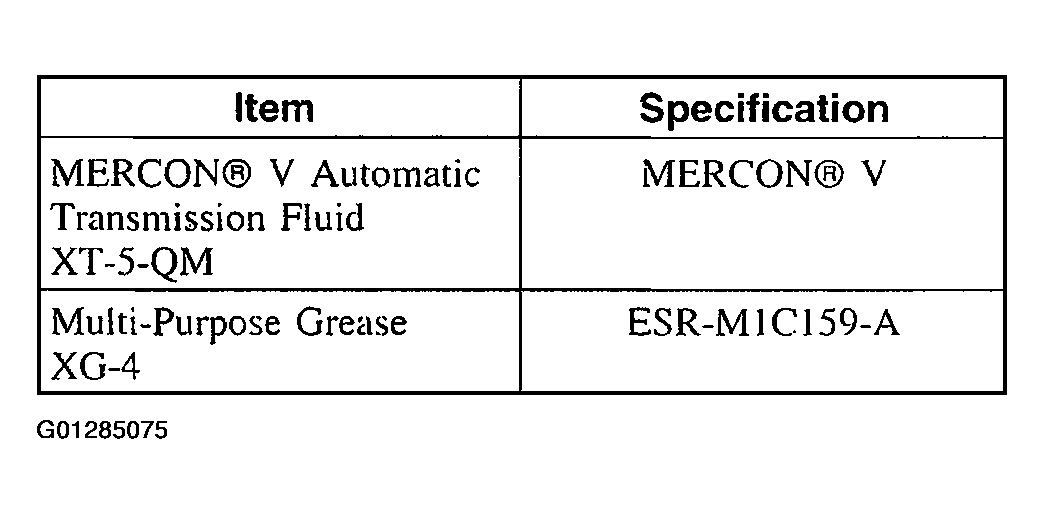

Fig 1: Material Specification

Courtesy of FORD MOTOR CO.

NOTE: Inspect the transmission case and extension housing for the following:

stripped screw hole threads
gasket and mating surfaces for burrs or nicks
obstructions to vent and fluid passages
cracks or warpage

NOTE: Thoroughly clean the transmission case and extension housing in solvent and blow dry with compressed air.

NOTE: Lubricate all seals and the servo bores with clean automatic transmission fluid.

If installing a new transmission case bearing, carry out the steps listed.

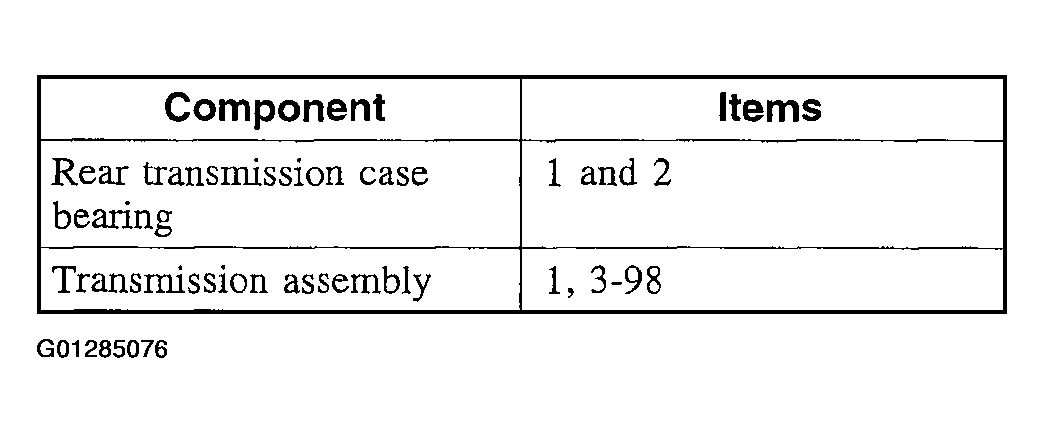

Fig 2: Installing Transmission Case Bearing
Courtesy of FORD MOTOR CO.
Illustration 1 of 2. Assemble the components in the order indicated in the following illustration and table.

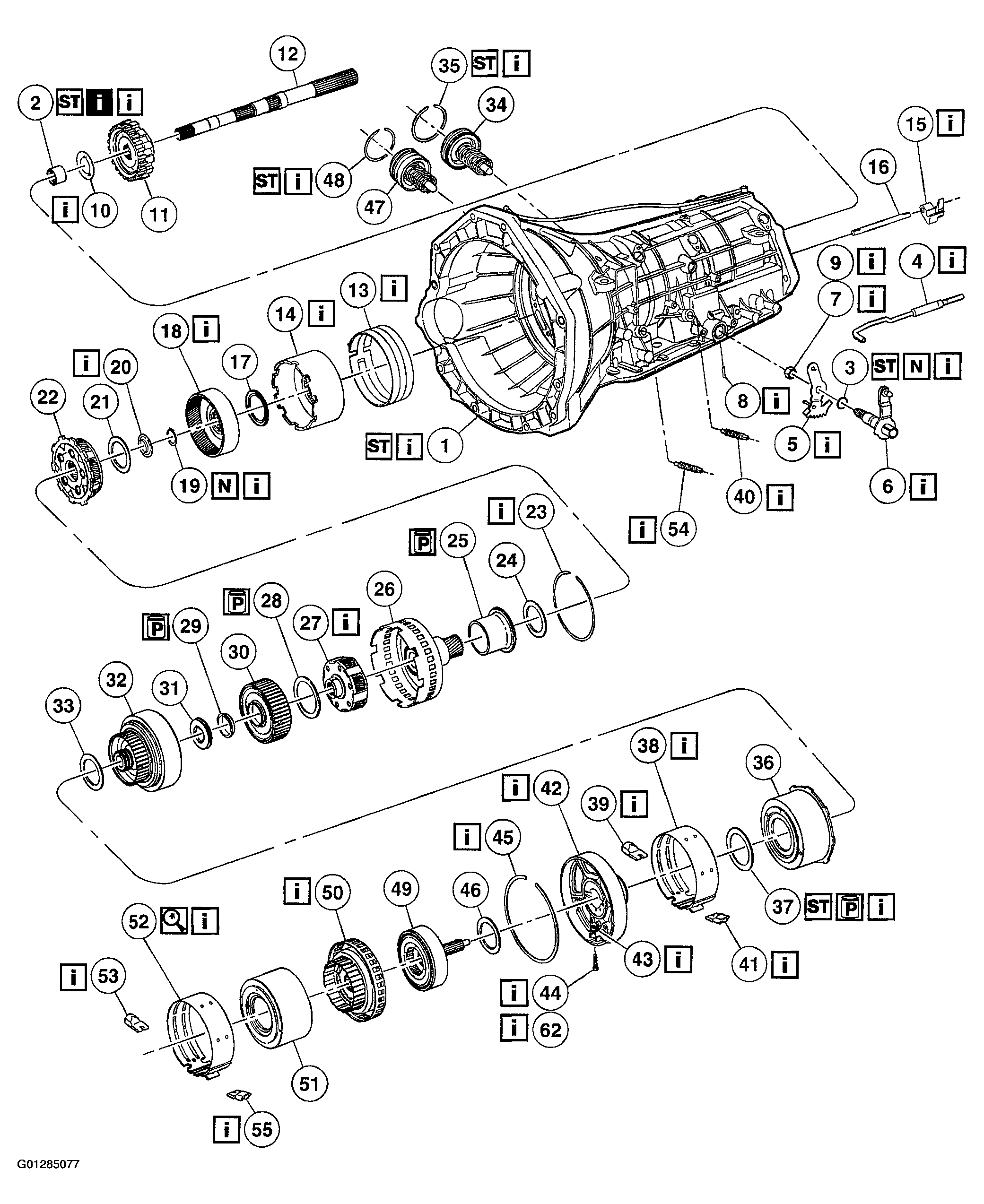

Fig 3: Exploded View of Components - 1 of 2
Courtesy of FORD MOTOR CO.

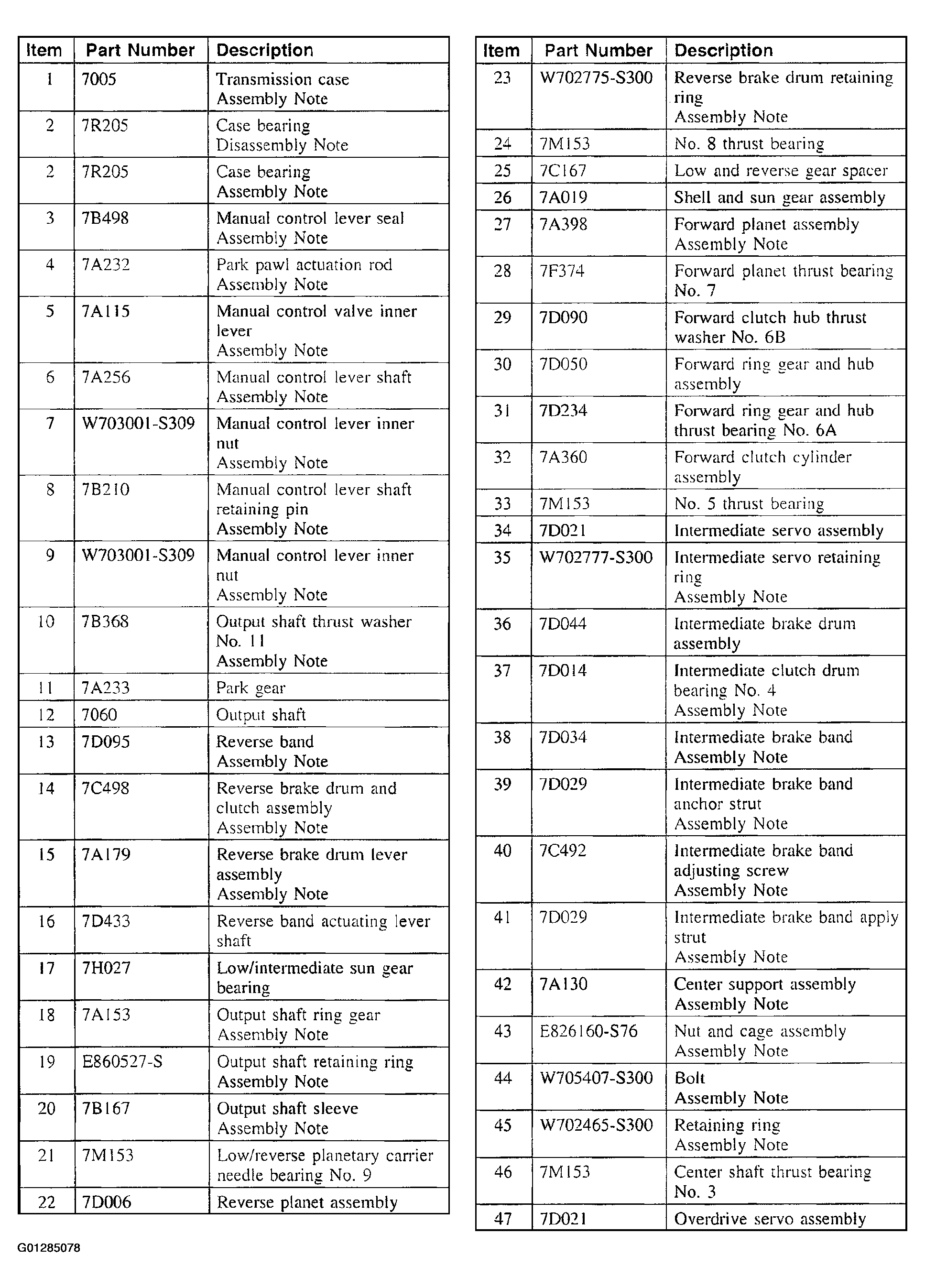

Fig 4: Description Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

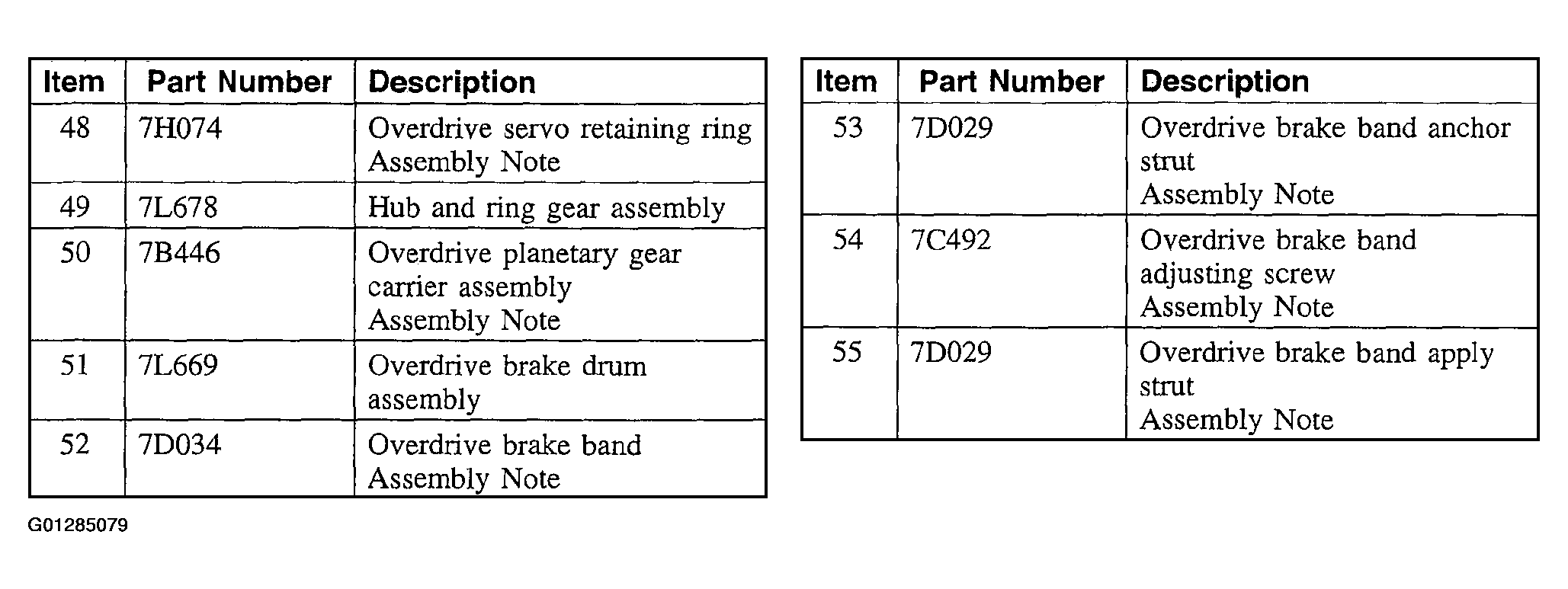

Fig 5: Description Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Illustration 2 of 2. Assemble the components in the order indicated in the following illustration and table.

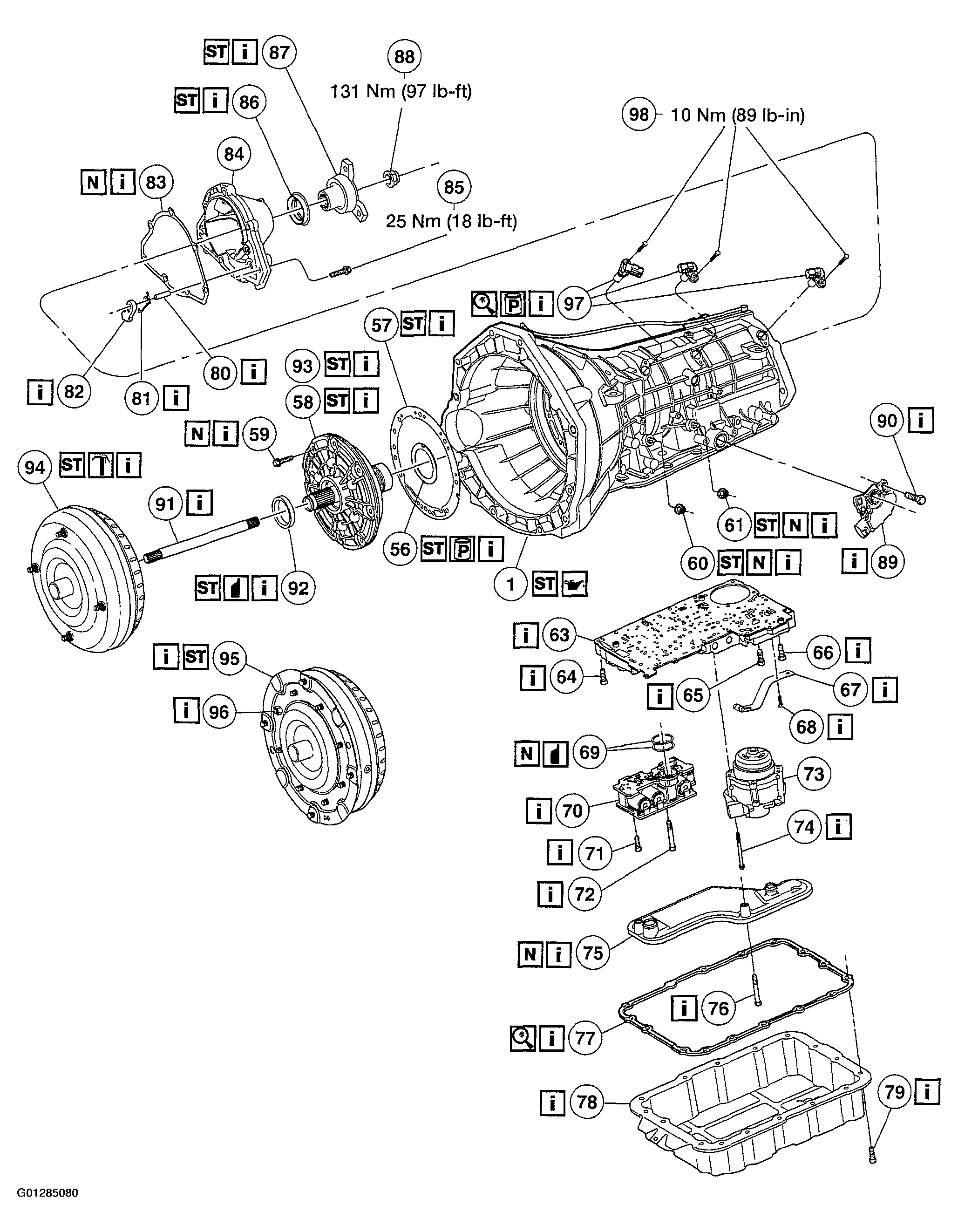

Fig 6: Exploded View Of Components - 2 Of 2
Courtesy of FORD MOTOR CO.

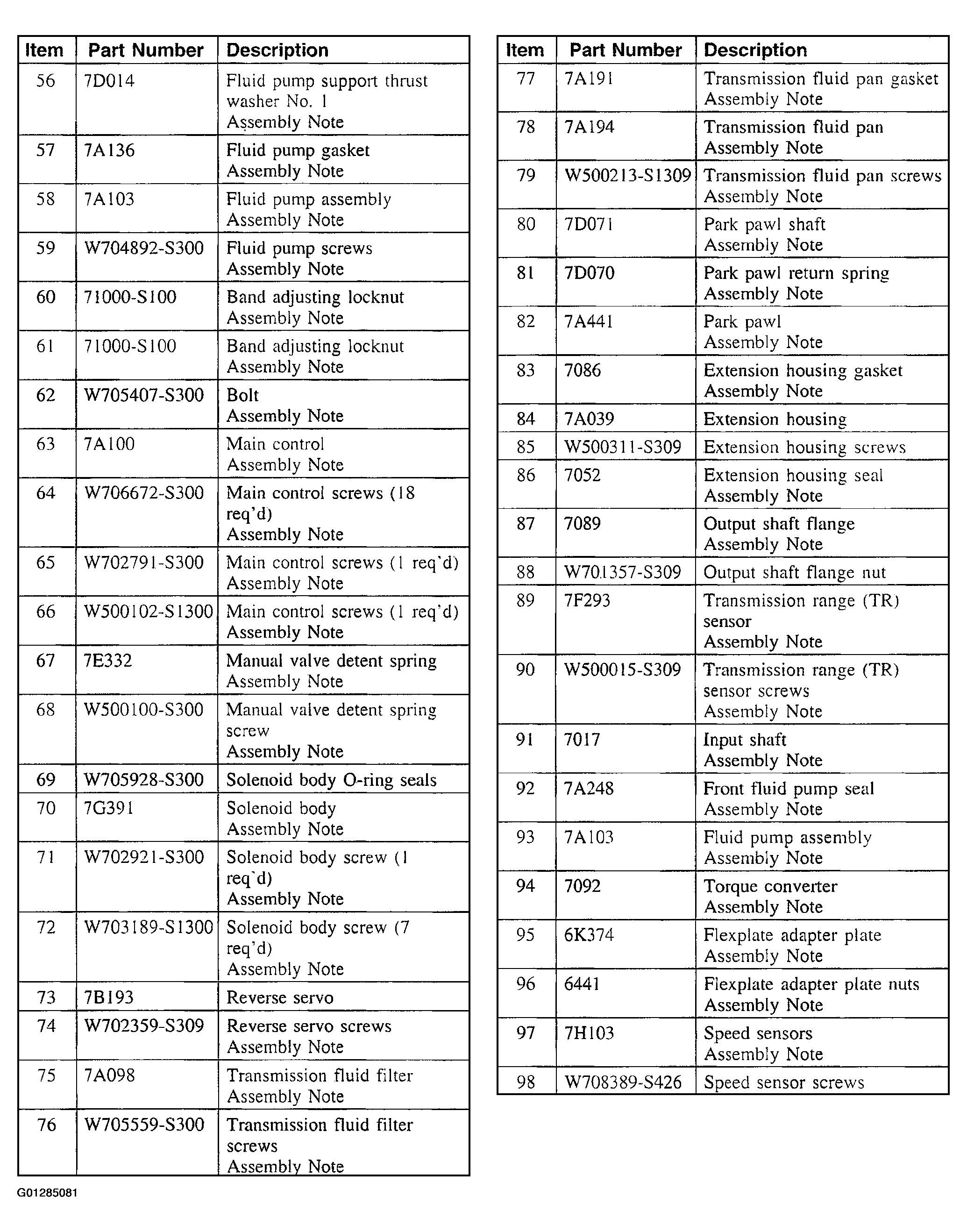

Fig 7: Description Chart
Courtesy of FORD MOTOR CO.
