Item 94: Torque Converter Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not damage the fluid pump gear O-ring seal when installing the torque converter.
    CAUTION: Make sure the converter hub is fully engaged in the pump support and gear and rotates freely. Do not damage the hub seal.
    CAUTION: If the torque converter slides out, the hub seal may become damaged.

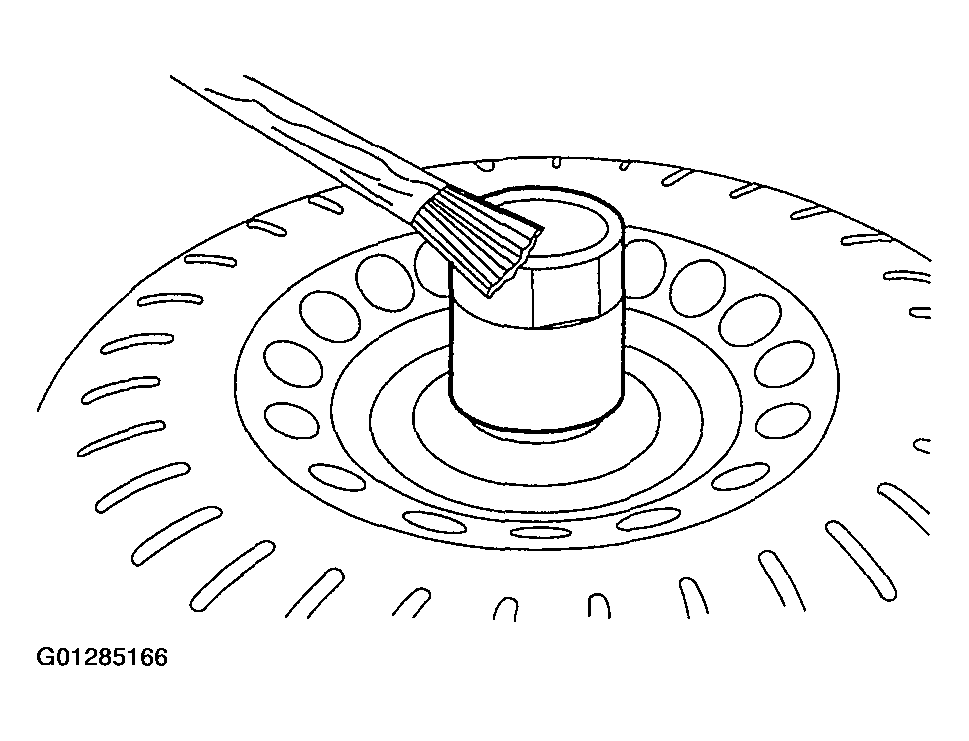

    Fig 1: Identifying Torque Converter Assembly Note
    G01285166Courtesy of FORD MOTOR CO.
  1. Lubricate the converter hub with clean automatic transmission fluid.
    2. WARNING: The torque converter can fall out if the transmission is tipped. Failure to follow these instructions may cause personal injury.

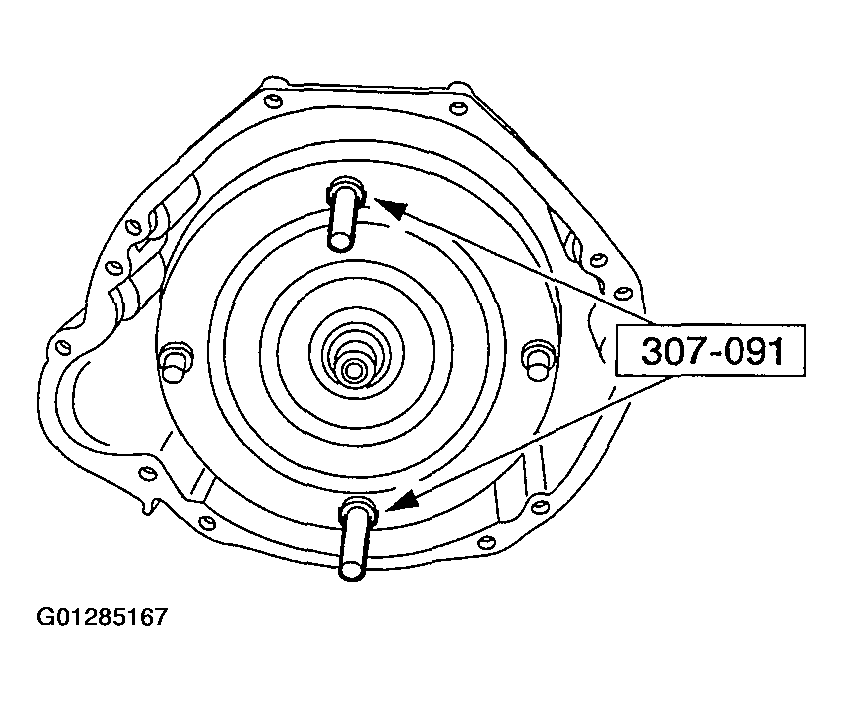

    Fig 2: Installing Torque Converter By Pushing And Rotating
    G01285167Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the torque converter by pushing and rotating.
  3. Lubricate the torque converter pilot hub with multipurpose grease.

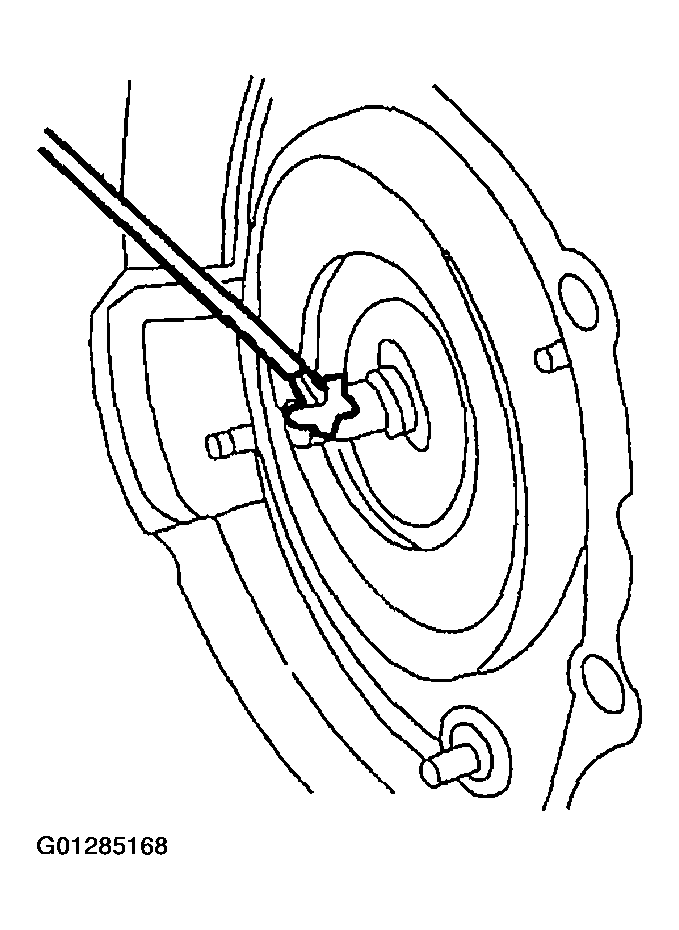

    Fig 3: Lubricating Torque Converter Pilot Hub With Multipurpose Grease
    G01285168Courtesy of FORD MOTOR CO.
