Item 91: Input Shaft Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The splines of the input shaft are not the same length on both ends. The shaft end with the shorter splines goes into the fluid pump.

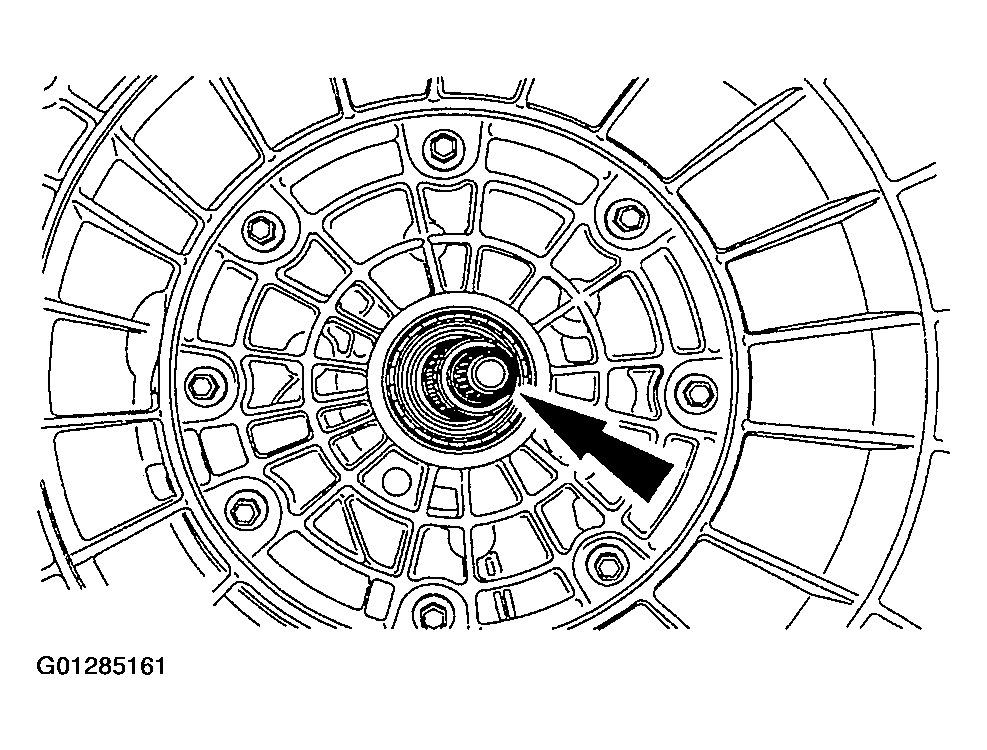

Fig 1: Installing Input Shaft

Courtesy of FORD MOTOR CO.

Install the input shaft.
