Item 7: Manual Control Lever Inner Nut Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the manual valve inner lever onto the manual shaft and loosely install the nut.

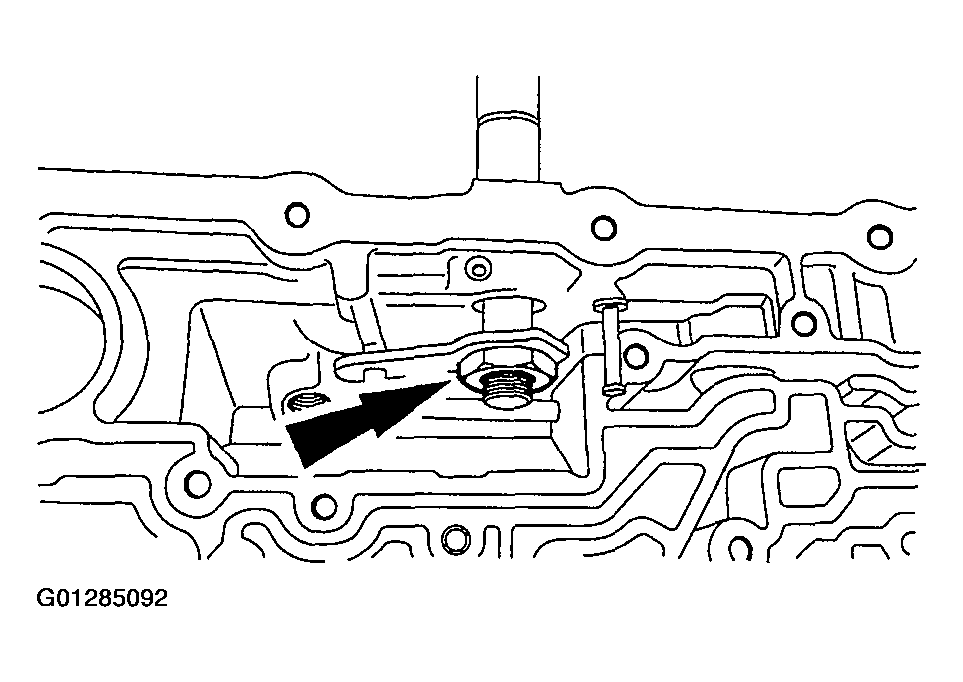

    Fig 1: Installing Manual Valve Inner Lever Onto Manual Shaft
    G01285092Courtesy of FORD MOTOR CO.
