Rear Axle Backlash Shim Variation Table

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

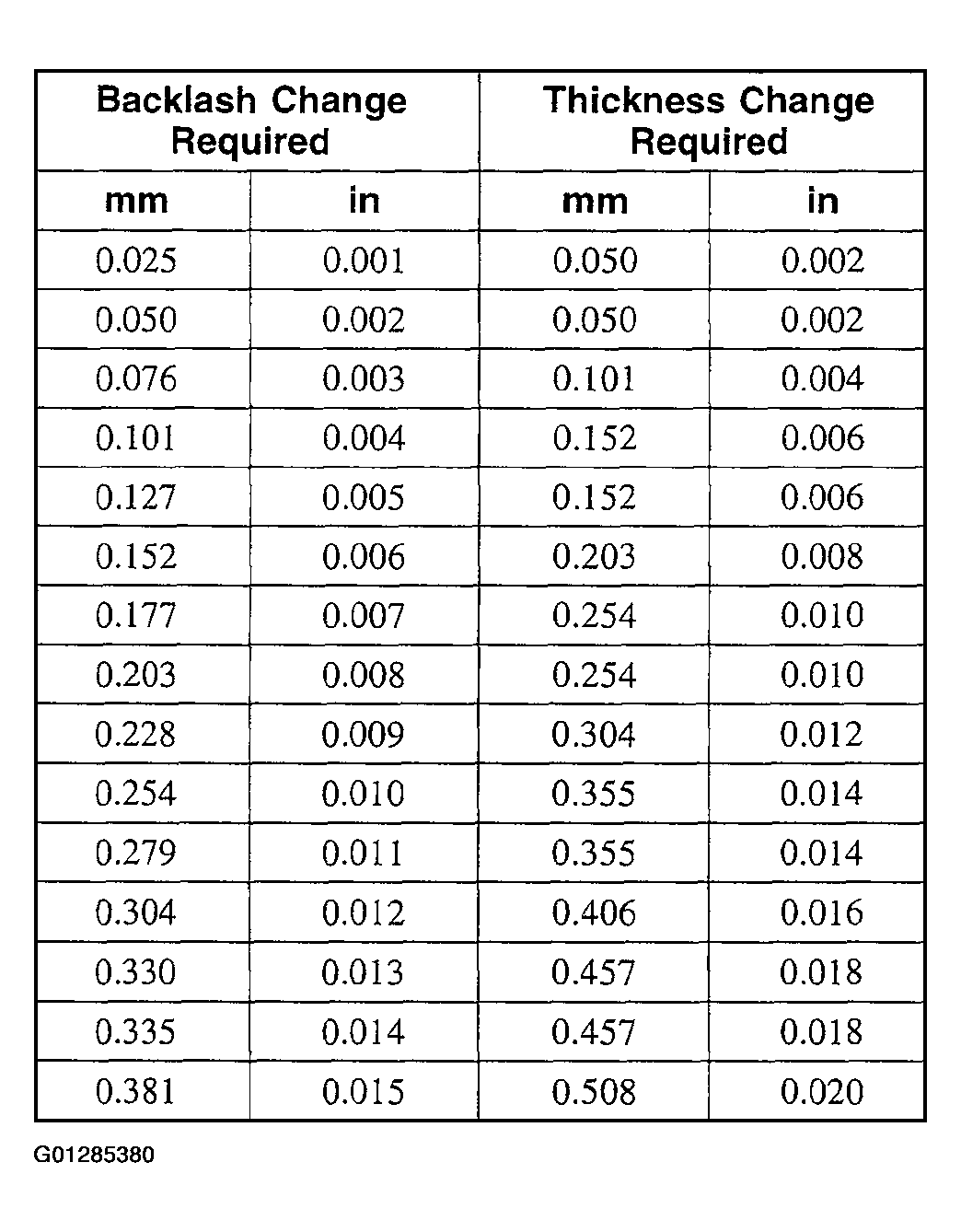

Fig 1: Rear Axle Backlash Shim Variation Table
G01285380Courtesy of FORD MOTOR CO.
