Section 1166 (Battery, Mounting And Cables)
>>
Removal And Installation
>>
Battery Cables
>>
Notes
Battery Cables: Notes
WARNING:
This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

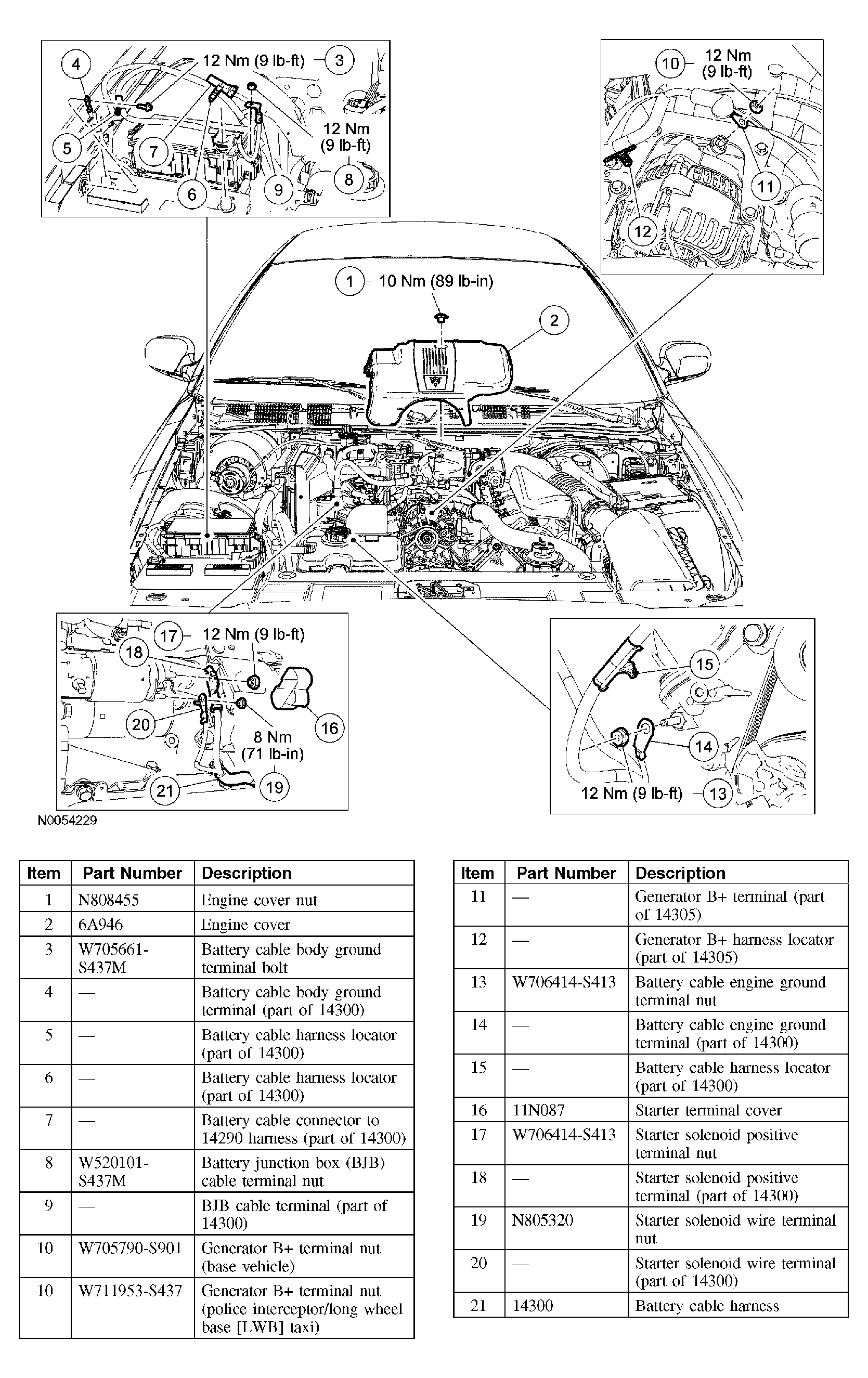

Fig 1: Removing & Installing Battery Cables
Courtesy of FORD MOTOR CO.
