Ho2S Heater Monitor

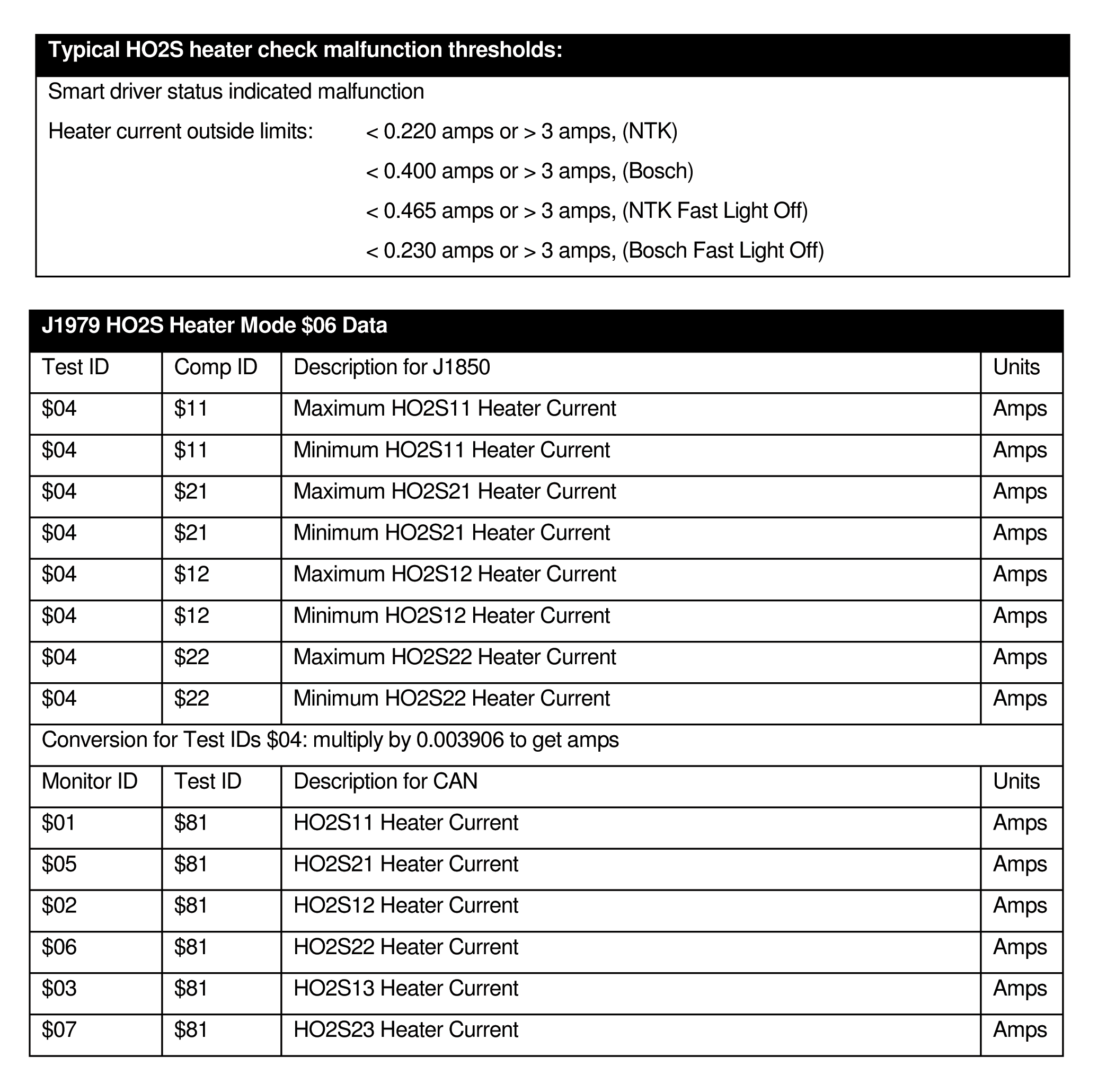

Fig 1: Mode $06 Data For HO2S Heater Monitor

G00152287

Courtesy of FORD MOTOR CO.
