Removal and Installation

  1. Remove the oil level indicator.

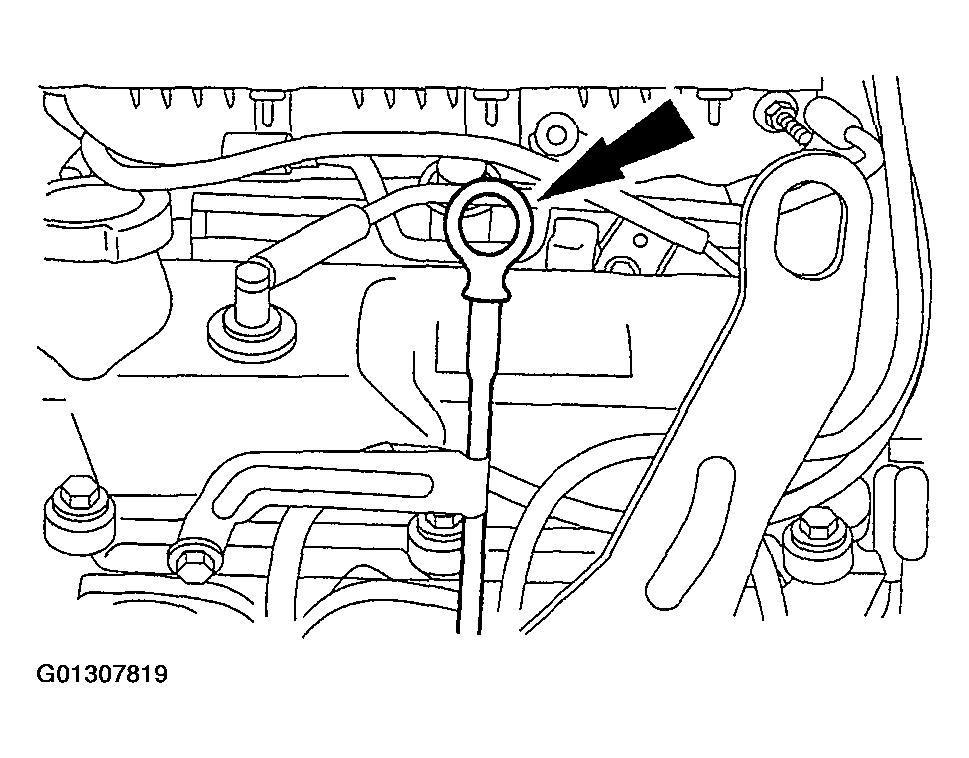

    Fig 1: Identifying Oil Level Indicator
    G01307819Courtesy of FORD MOTOR CO.
  2. Remove the oil level indicator tube.
    • Remove the bolt.
    • Remove the oil level indicator tube.
    • Remove and discard the oil level indicator tube O-ring seal.

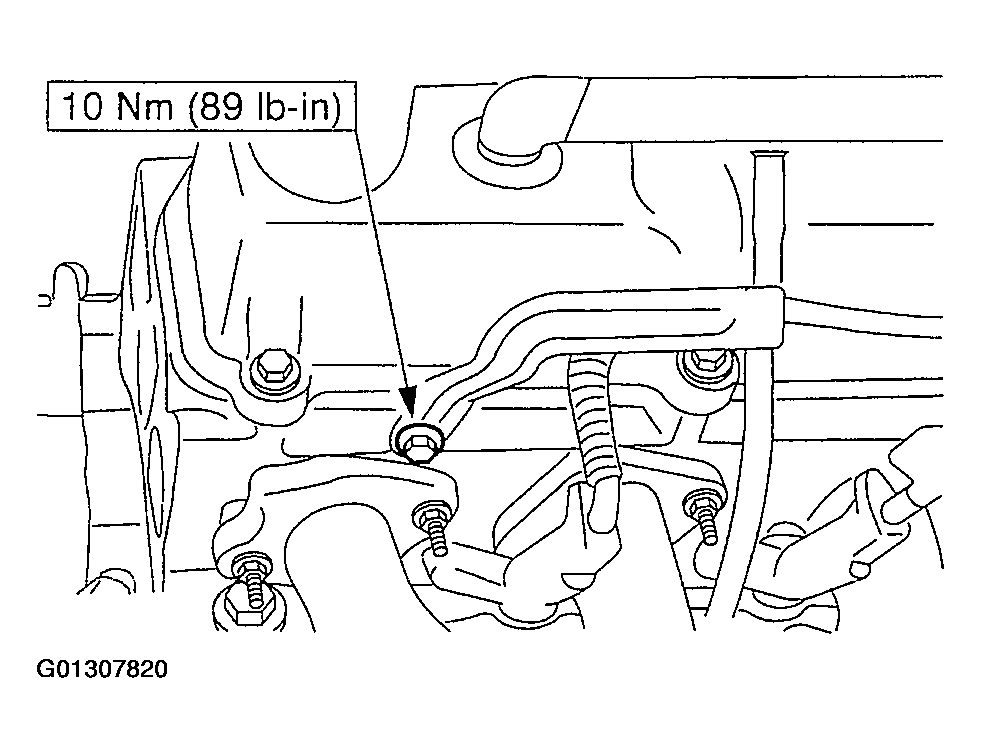

      Fig 2: Oil Level Indicator Tube Bracket Bolt Tightening Torque
      G01307820Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
