Crankshaft Front Seal: Installation

  1. Install the crankshaft front seal.

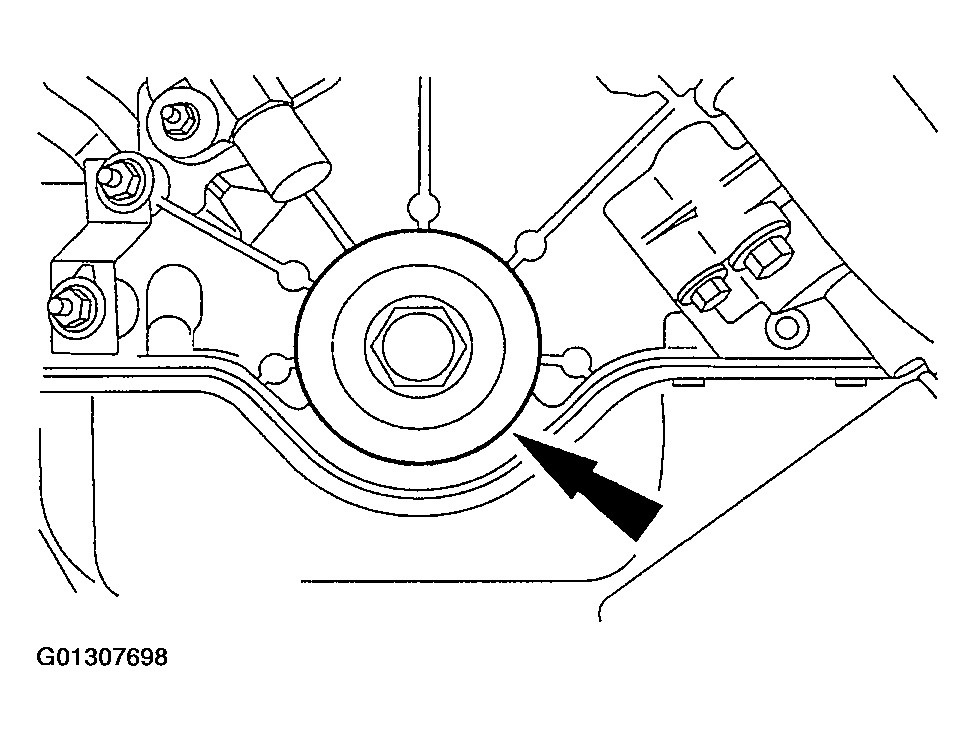

    Fig 1: Installing Crankshaft Front Seal
    G01307698Courtesy of FORD MOTOR CO.
  2. Install the crankshaft damper and pulley assembly. For additional information, refer to CRANKSHAFT PULLEY .
