Door Glass Run Retainer: Removal

  1. Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the watershield.

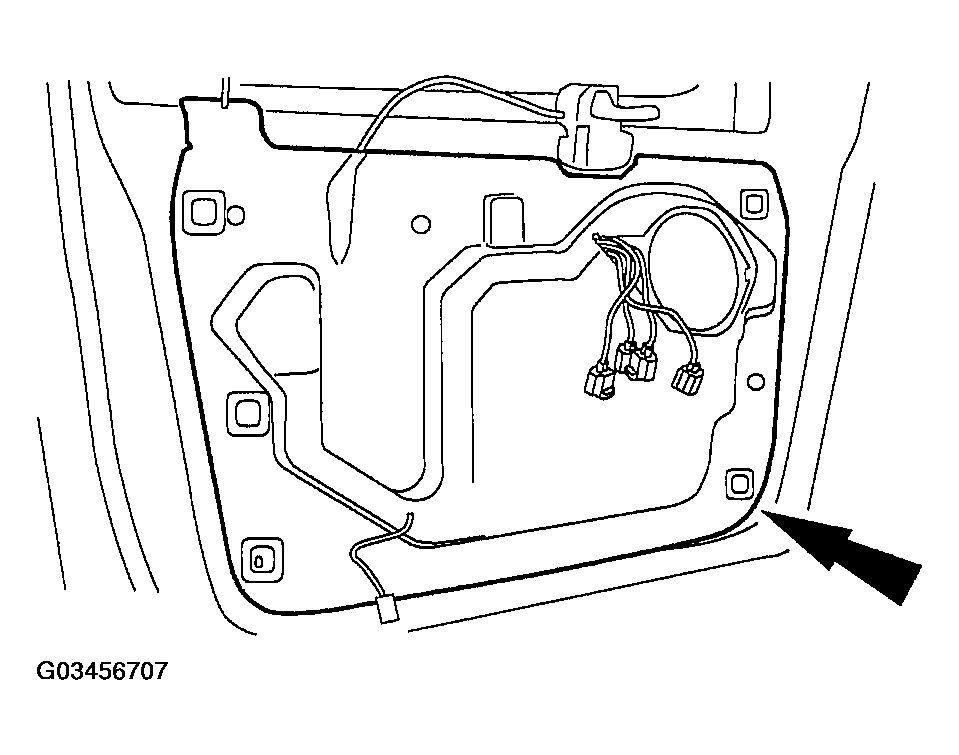

    Fig 1: Removing Watershield
    G03456707Courtesy of FORD MOTOR CO.
  3. Remove the door glass run retainer nut.

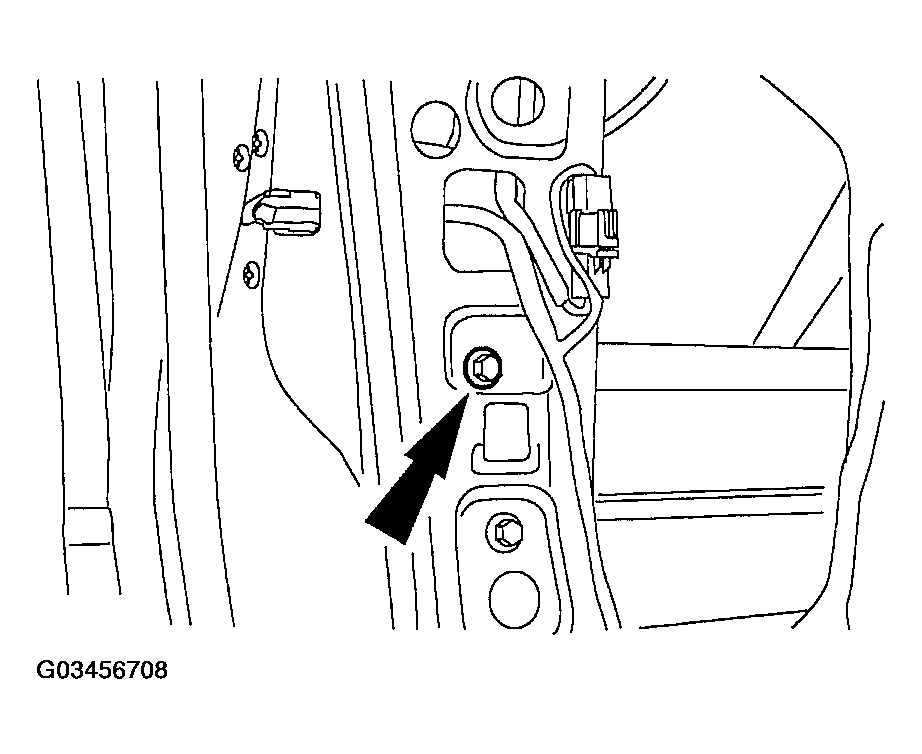

    Fig 2: Removing Door Glass Run Retainer Nut
    G03456708Courtesy of FORD MOTOR CO.
  4. Remove the rear door glass run retainer.

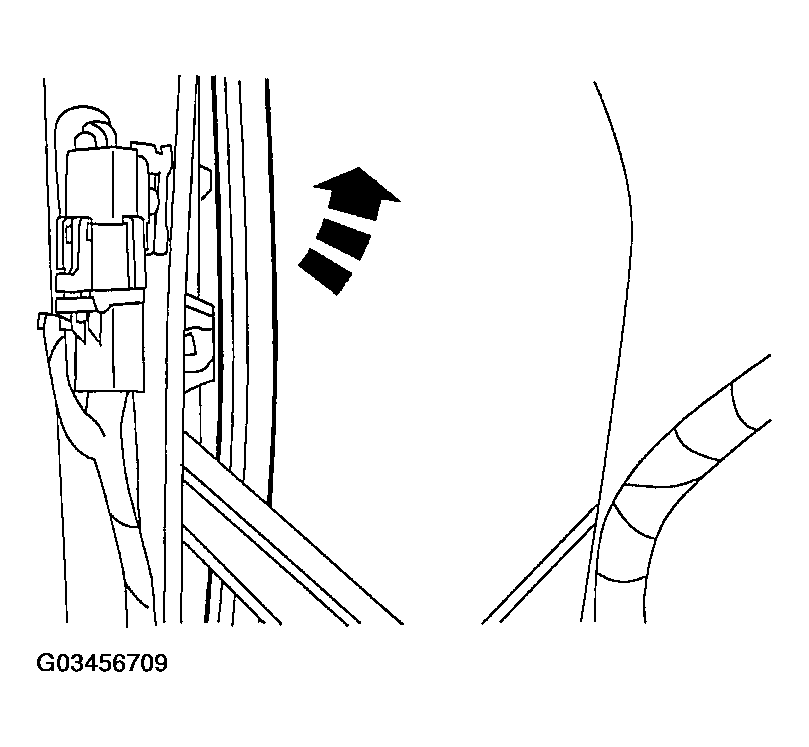

    Fig 3: Removing Rear Door Glass Run Retainer
    G03456709Courtesy of FORD MOTOR CO.
