Pinpoint Test A: No Communication With The Front Electronic Module (Fem)-Unable To Carry Out The Front Electronic Module (Fem) Self-Test

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

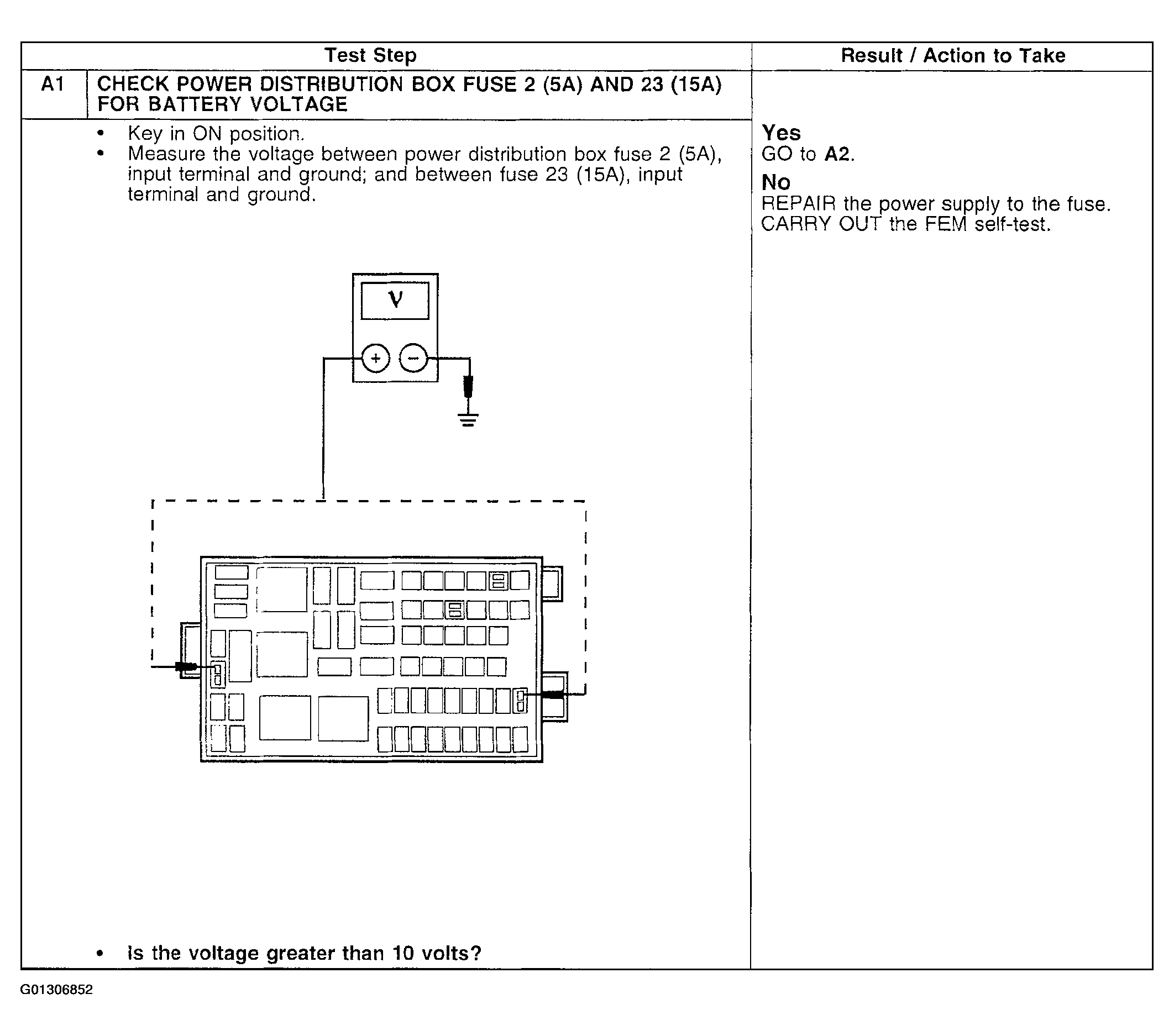

Fig 1: Pinpoint Test A: No Communication With Front Electronic Module (FEM)-Unable To Carry Out Front Electronic Module (FEM) Self-Test (Steps A1)

Courtesy of FORD MOTOR CO.

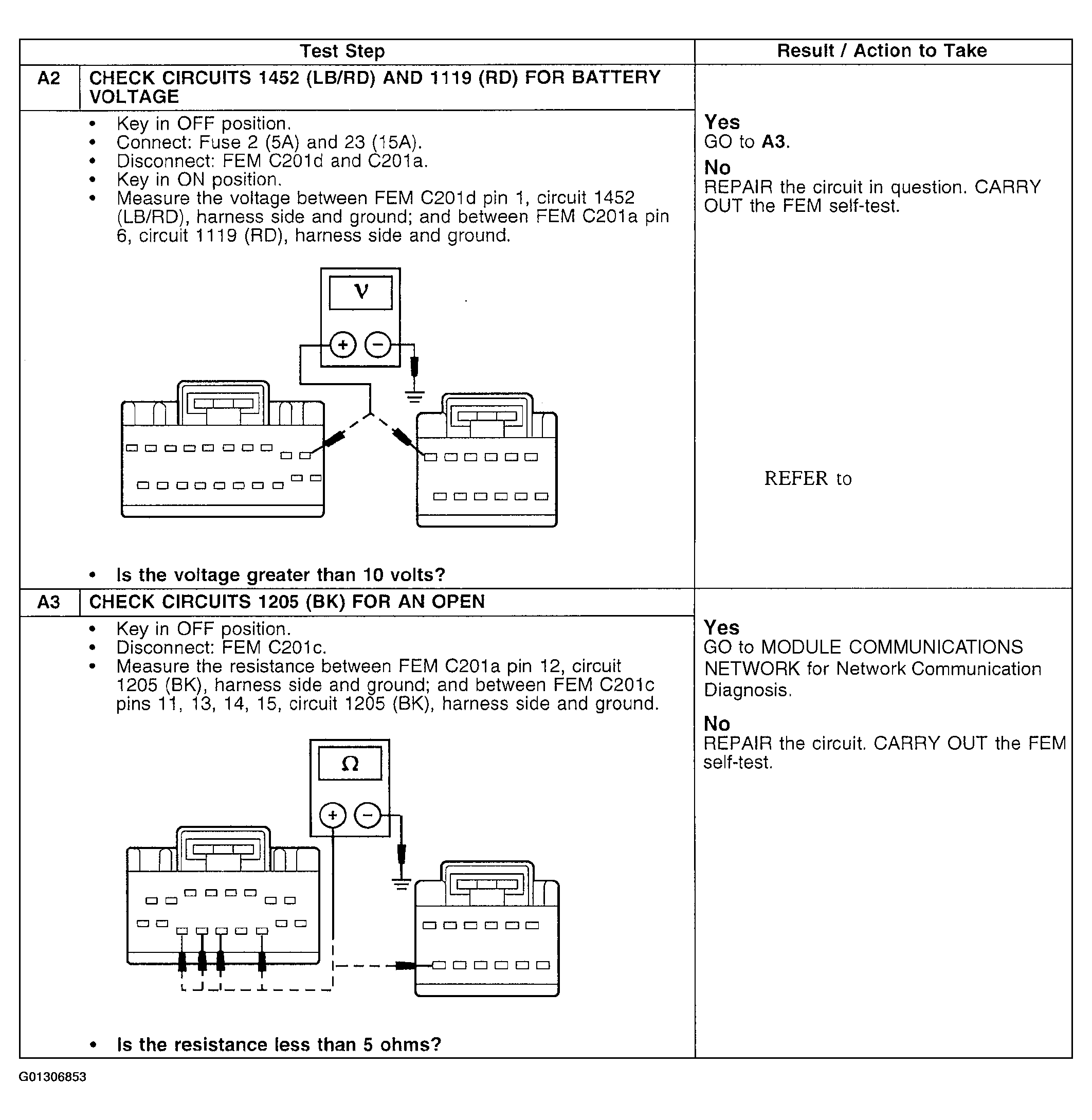

Fig 2: Pinpoint Test A: No Communication With Front Electronic Module (FEM)-Unable To Carry Out Front Electronic Module (FEM) Self-Test (Steps A2-A3)

Courtesy of FORD MOTOR CO.
