Pinpoint Test B: No Communication With The Rear Electronic Module (Rem)

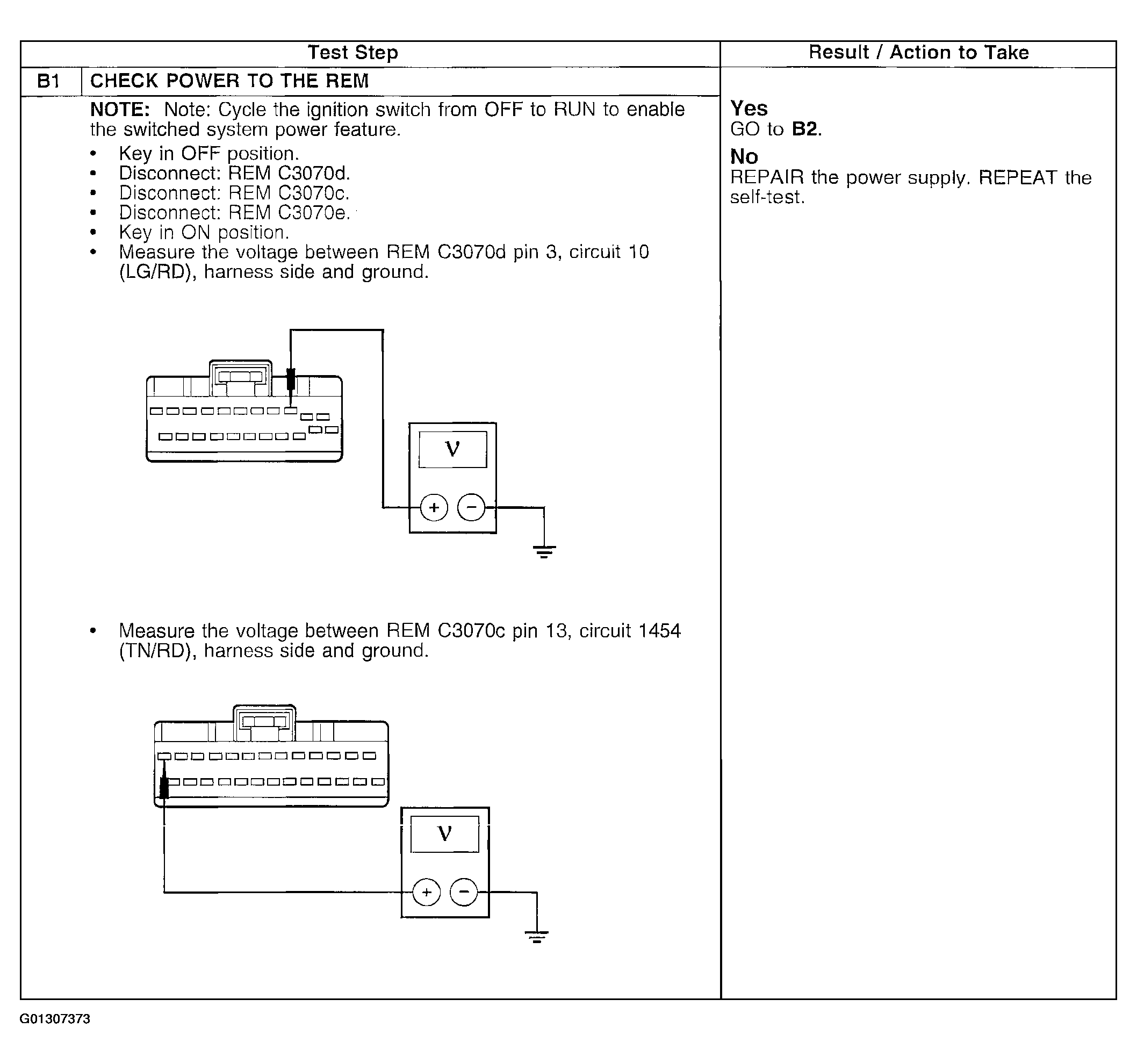

Fig 1: Pinpoint Test B: No Communication With Rear Electronic Module (REM) (Steps B1)
G01307373Courtesy of FORD MOTOR CO.

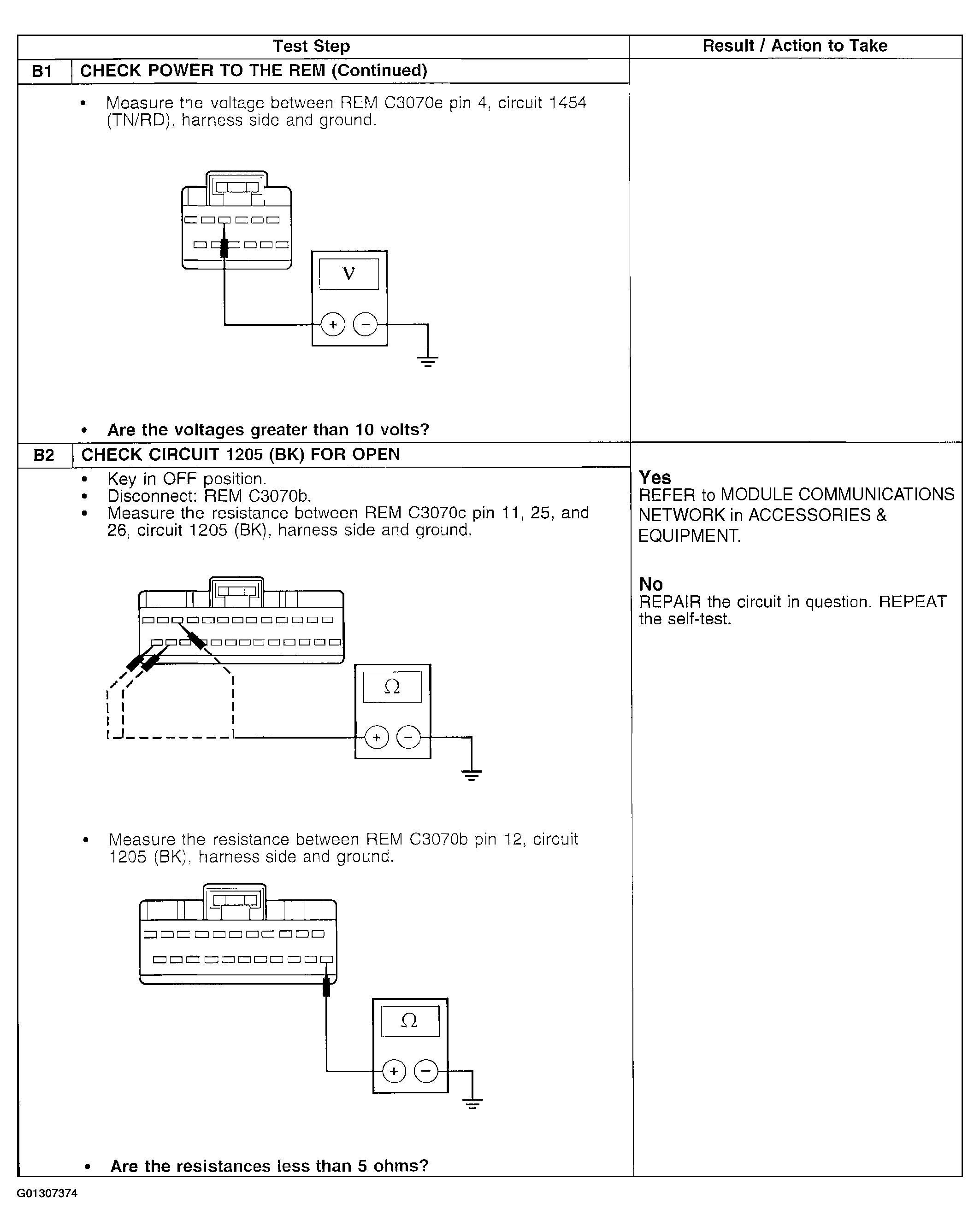

Fig 2: Pinpoint Test B: No Communication With Rear Electronic Module (REM) (Steps B1 Continued-B2)
G01307374Courtesy of FORD MOTOR CO.
