Pinpoint Test A: No Communication With The Front Electronic Control Module (Fem)

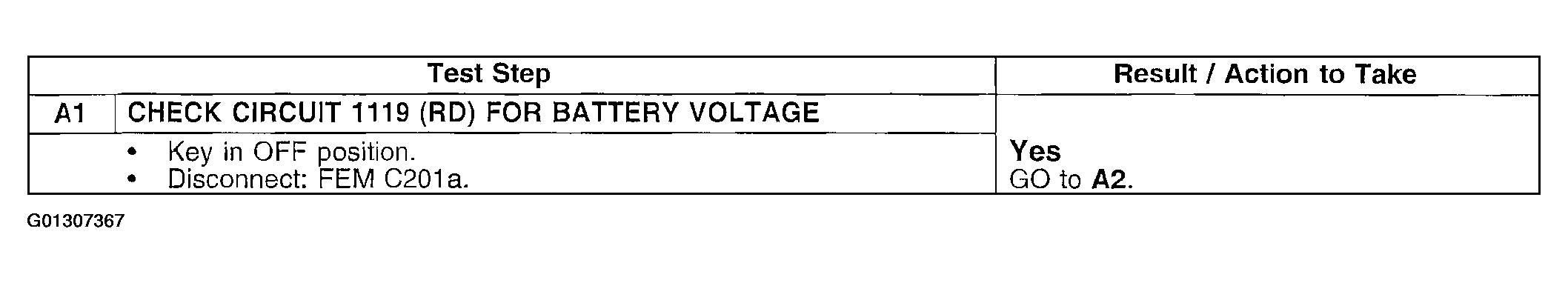

Fig 1: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A1)
G01307367Courtesy of FORD MOTOR CO.

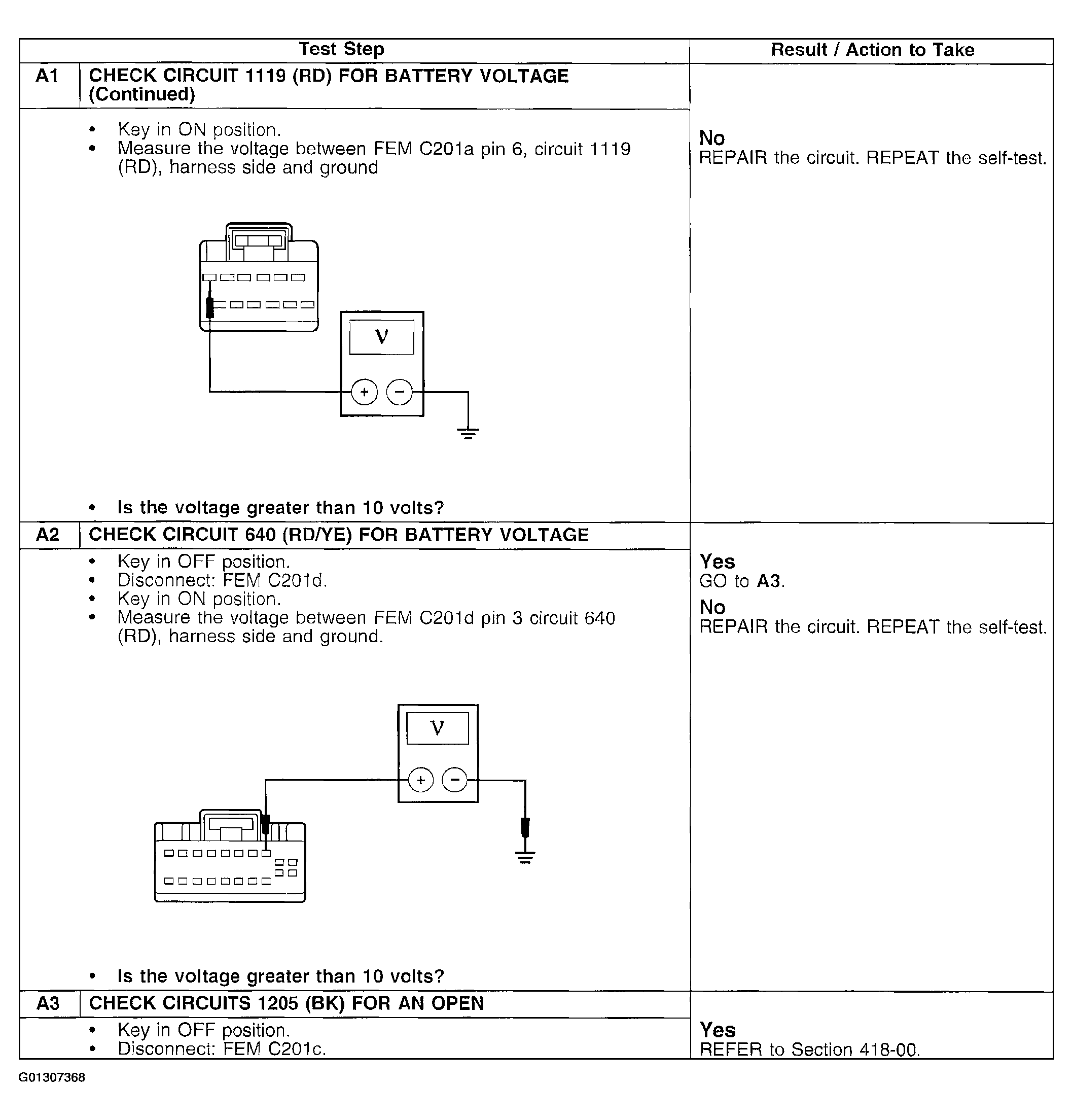

Fig 2: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A1 Continued-A2)
G01307368Courtesy of FORD MOTOR CO.

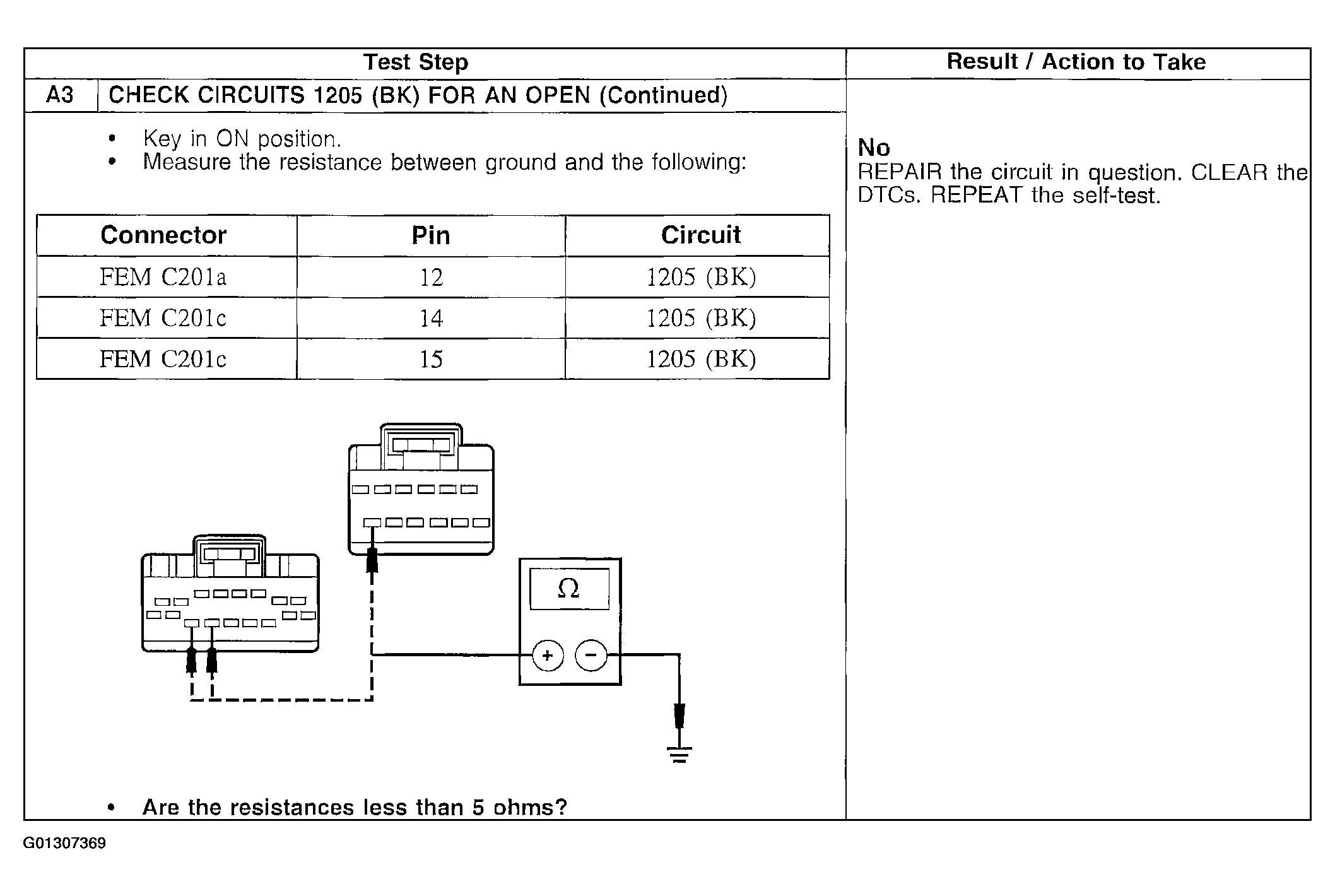

Fig 3: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A3)
G01307369Courtesy of FORD MOTOR CO.
