Band/Clutch Application Chart B

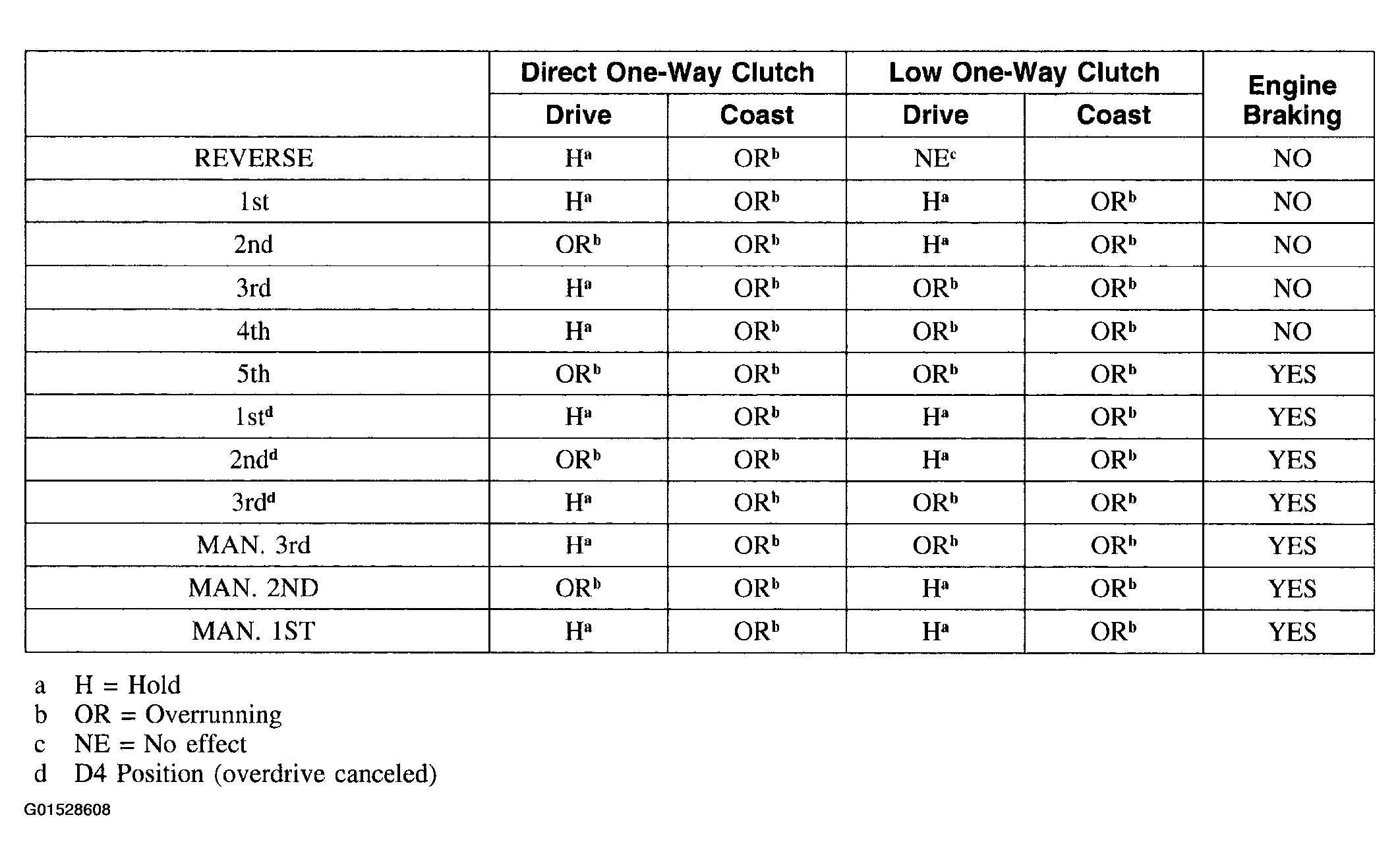

Fig 1: Band/Clutch Application Chart B

G01528608

Courtesy of FORD MOTOR CO.
