Items 6 and 7: Fluid Pump Adapter Plate Assembly Note

First install the special tools in the fluid pump cover, then install the fluid pump adapter plate.

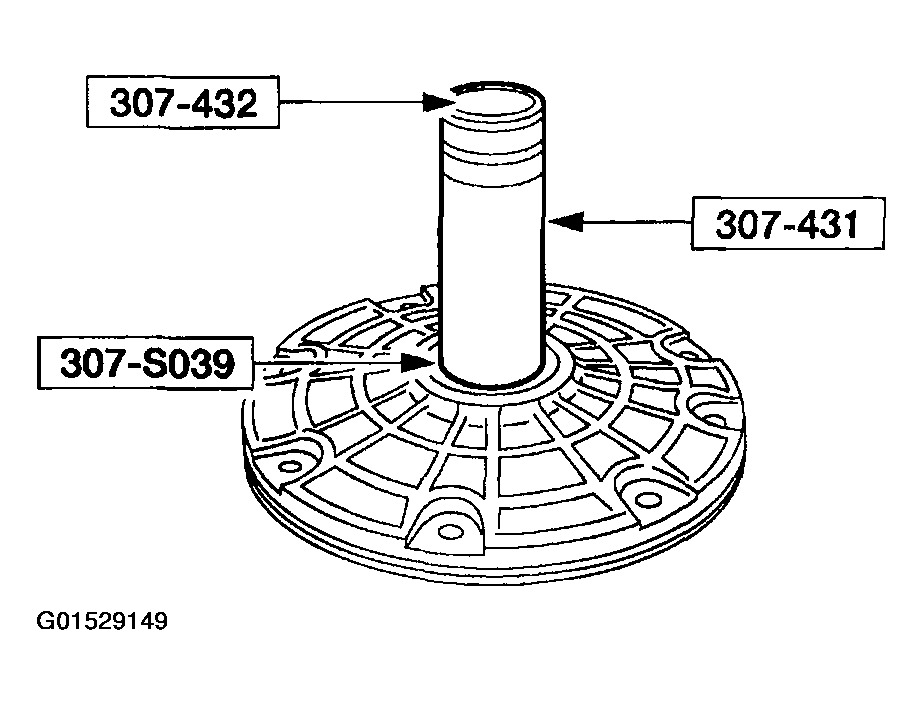

Fig 1: Installing Fluid Pump Adapter Plate
Courtesy of FORD MOTOR CO.

CAUTION: The special tools must be used to correctly align the pump with the adapter plate to reduce gear noise, bushing failure, and leakage.

Using the special tool, align the fluid pump to the adapter plate.

Fig 2: Aligning Fluid Pump To Adapter Plate
Courtesy of FORD MOTOR CO.
