Shock Absorber and Spring Assembly - Rear: Notes

With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
Position the luggage compartment trim panel aside.

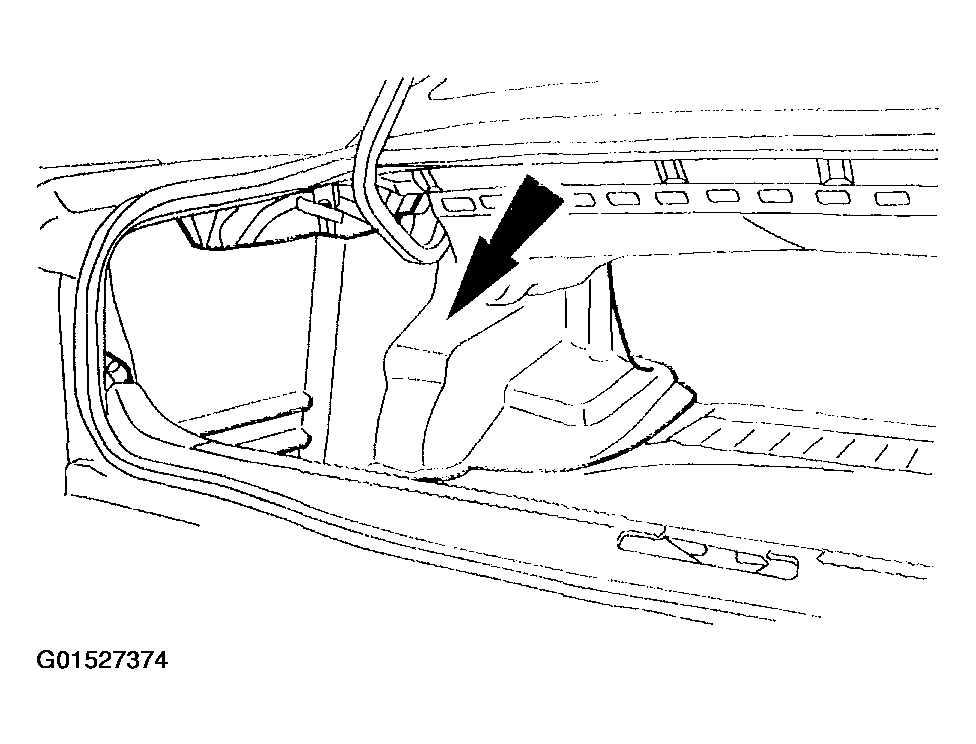

Fig 1: Removing Luggage Compartment Trim Panel
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

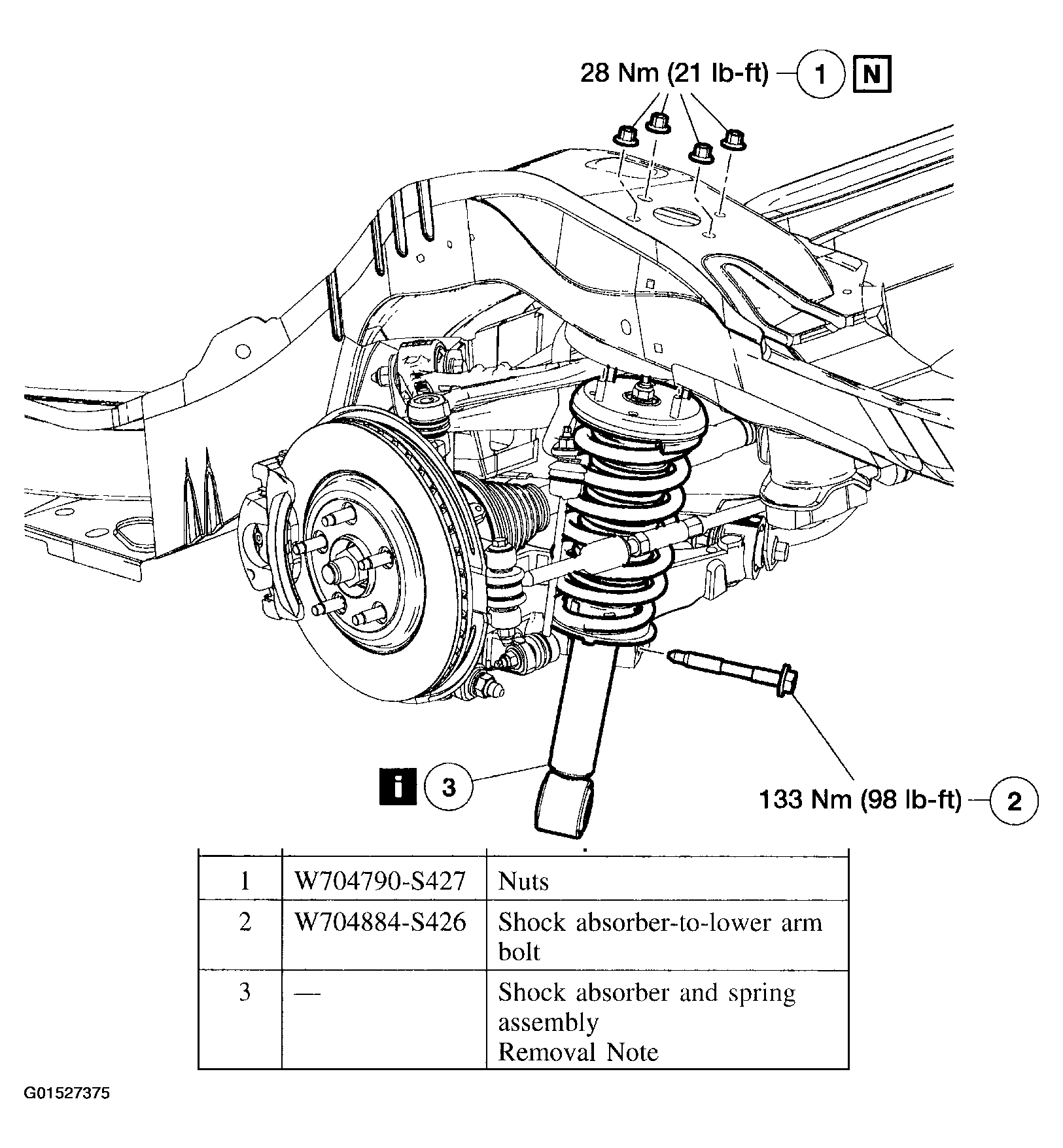

Fig 2: Rear Shock Absorber And Spring Assembly Component Locator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
