Instrument Cluster Module (ICM) C220c

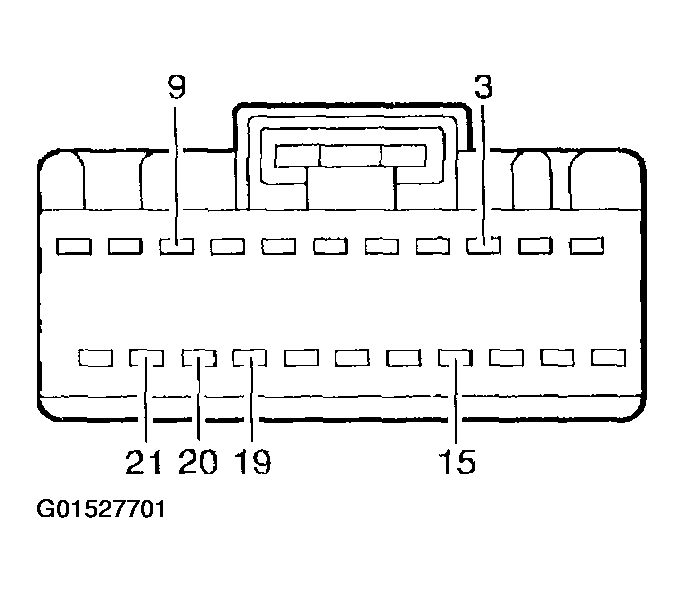

Fig 1: Instrument Cluster Module (ICM) C220c Terminal
G01527701Courtesy of FORD MOTOR CO.

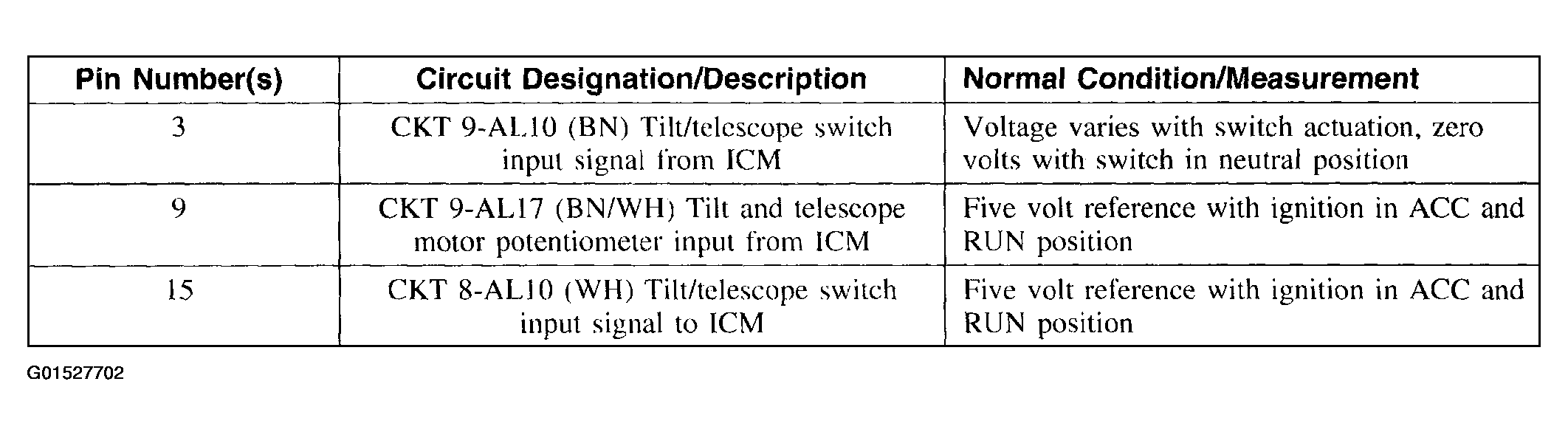

Fig 2: Connector Reference Chart (Pin Numbers 3, 9, 15)
G01527702Courtesy of FORD MOTOR CO.

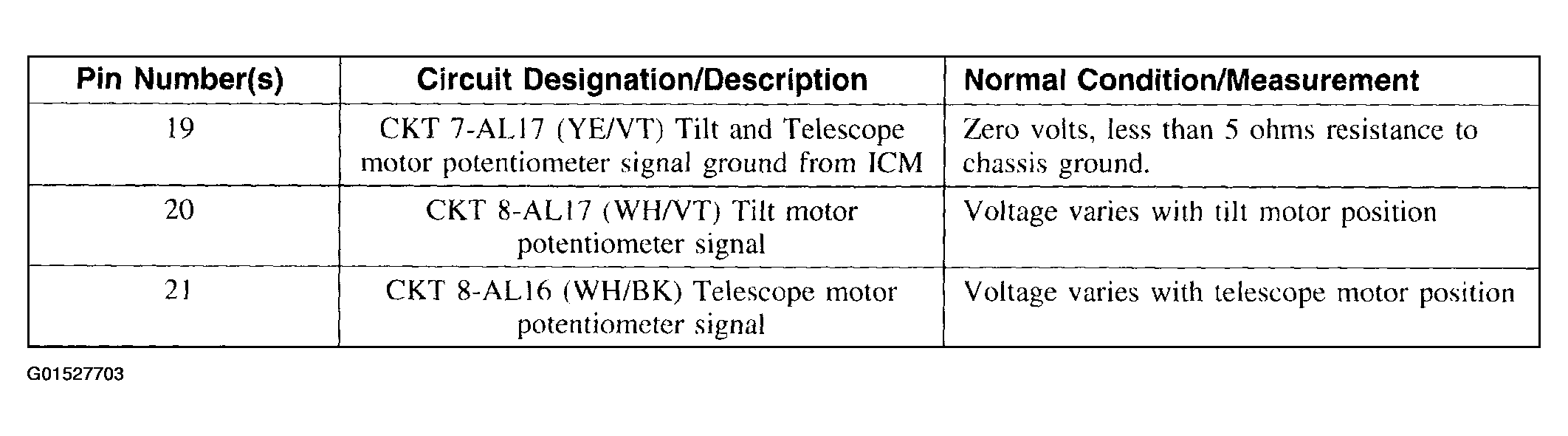

Fig 3: Connector Reference Chart (Pin Numbers 19, 20, 21)
G01527703Courtesy of FORD MOTOR CO.
