Pivot Arm - Front: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply Threadlock to the new pivot arm nut.

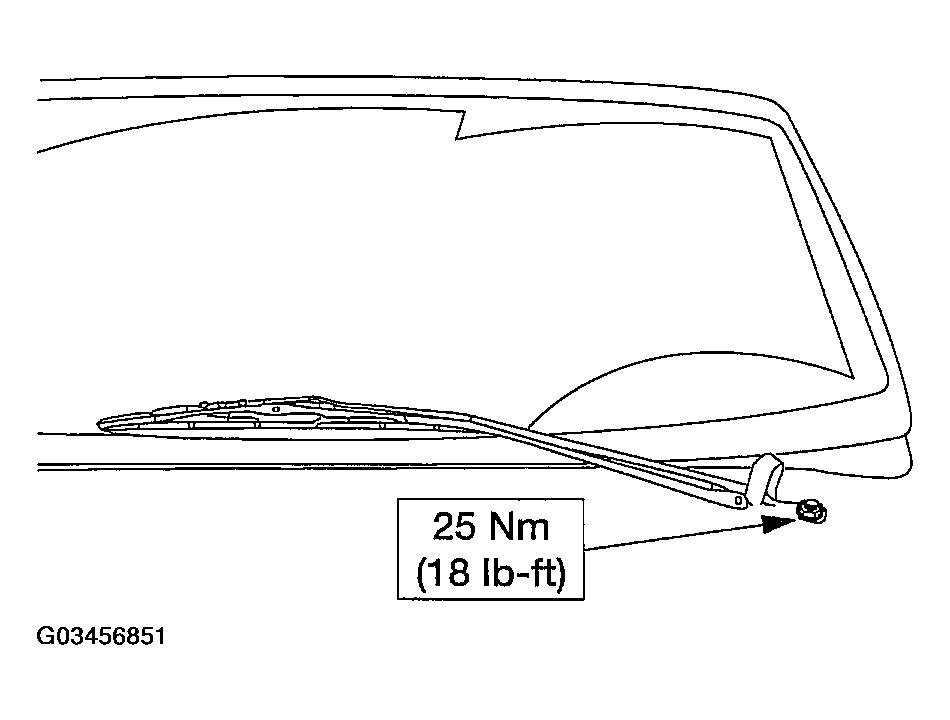

Fig 1: Tightening Torque For Pivot Arm

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
