Lamp Assembly - Reading: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: When removing lamp assembly, use care to avoid damaging the lamp assembly.
  1. Position the reading lamp aside.
    1. Remove the screw.
    2. Position the reading lamp aside.

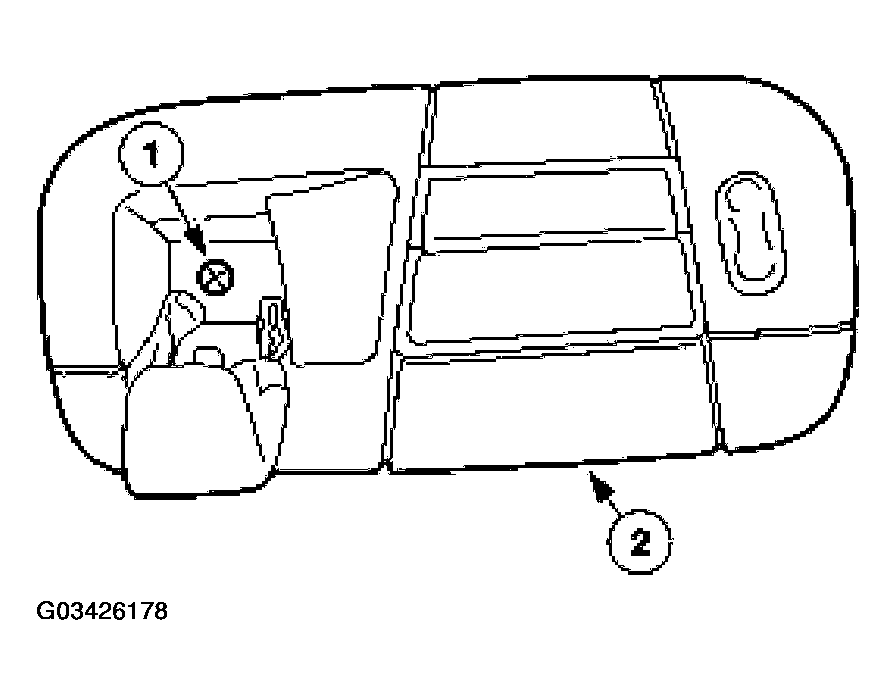

      Fig 1: Identifying Position Reading Lamp Aside
      G03426178Courtesy of FORD MOTOR CO.
  2. Remove the reading lamp.
    • Disconnect the electrical connector.

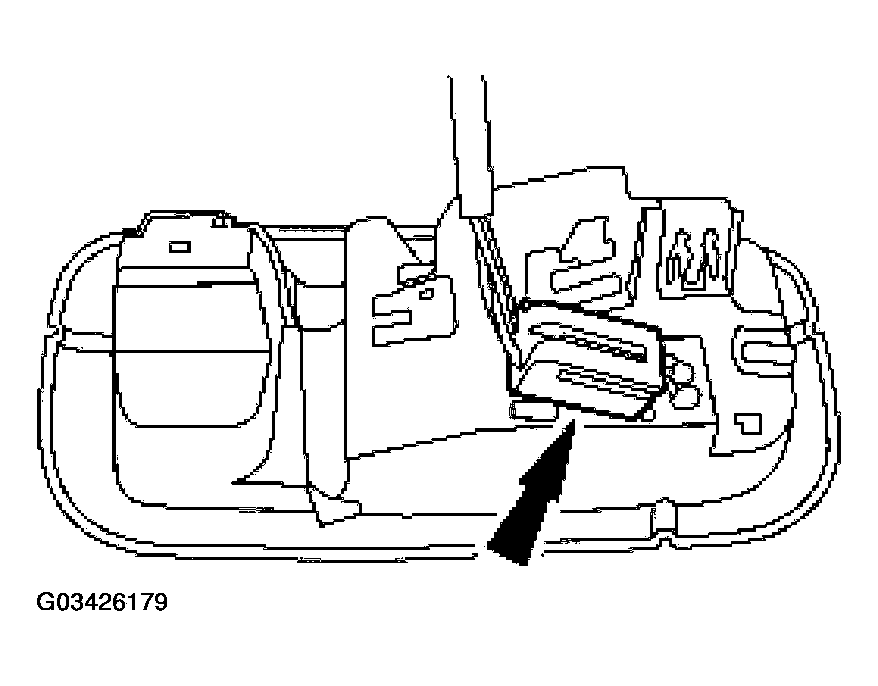

      Fig 2: Disconnecting Electrical Connector
      G03426179Courtesy of FORD MOTOR CO.
