Charging System
>>
Symptom Chart
Symptom Chart

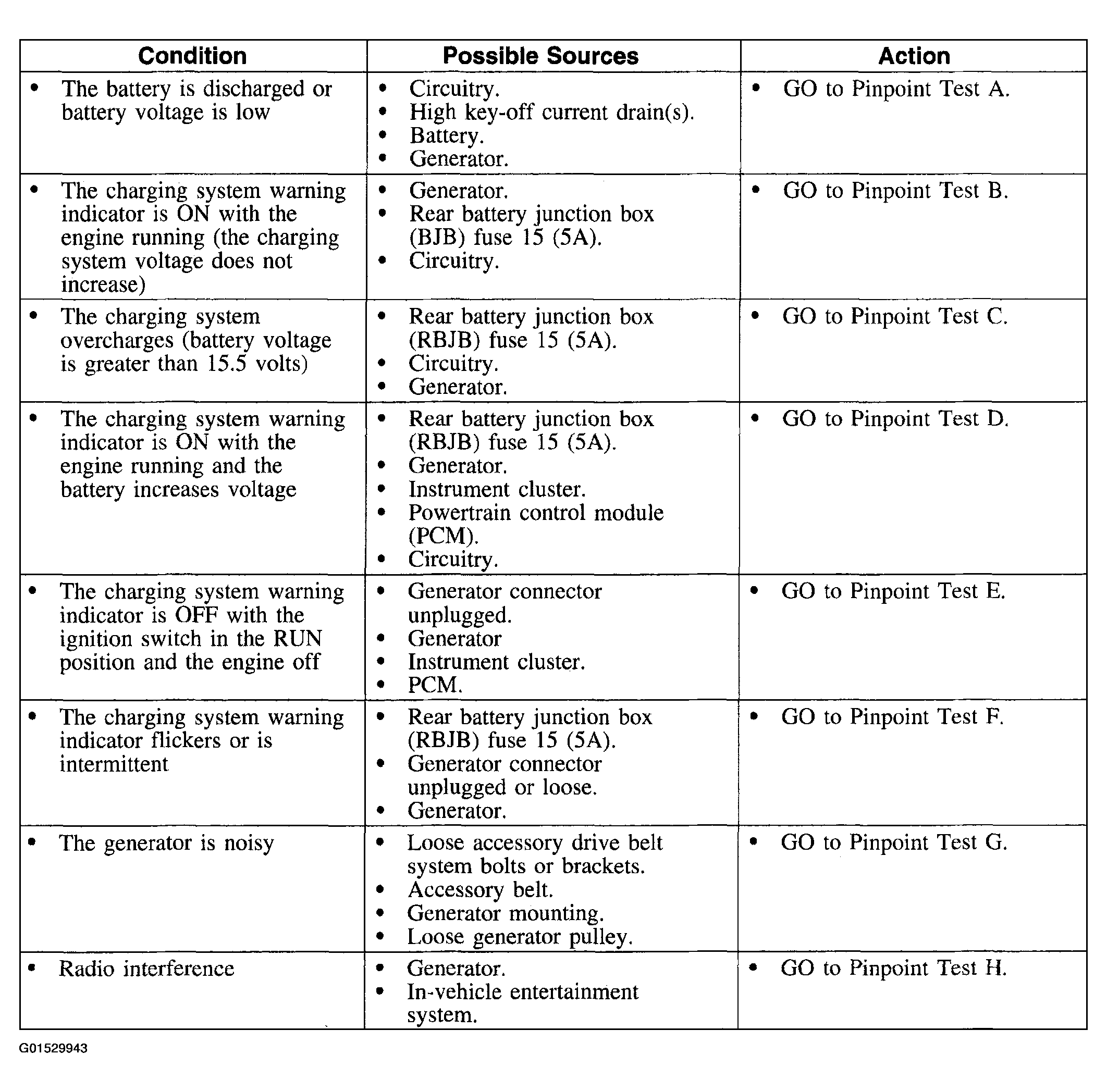

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
