Rear Window Glass: Notes

Special Tool(s)

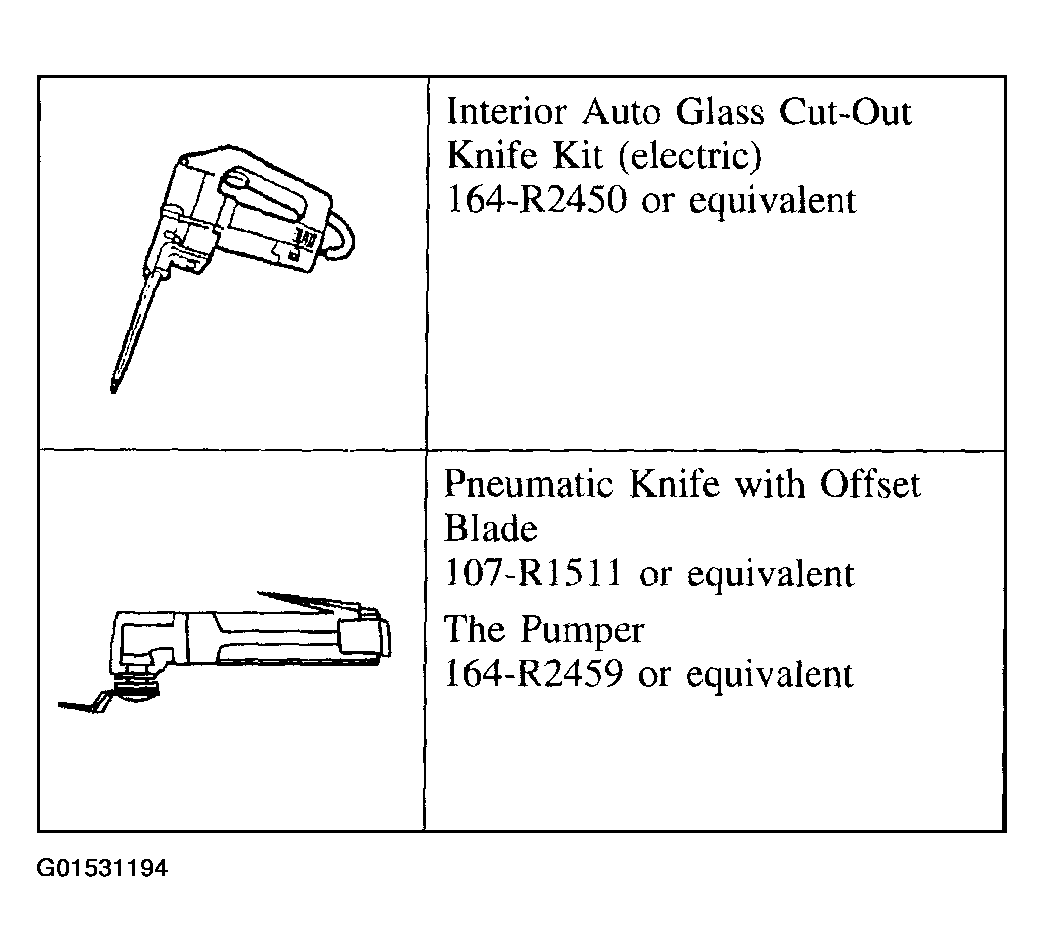

Fig 1: Identifying Special Tools
G01531194Courtesy of FORD MOTOR CO.

Material

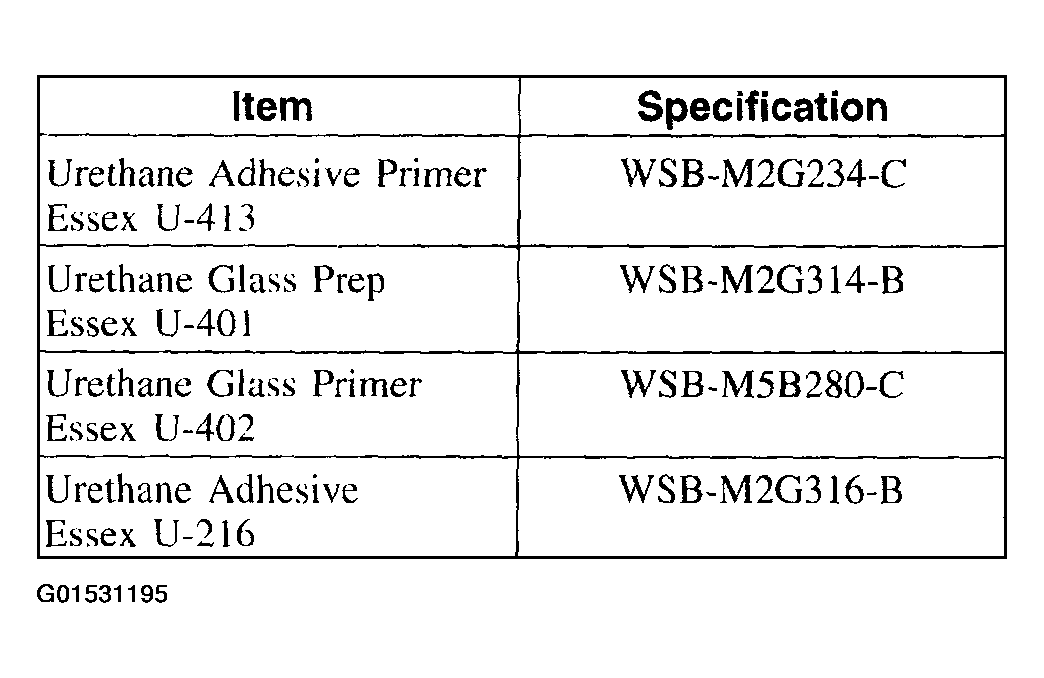

Fig 2: Rear Window Glass Material Specifications
G01531195Courtesy of FORD MOTOR CO.
NOTE: For removal and installation of the convertible top rear window glass, refer to CONVERTIBLE TOP ASSEMBLY .
  1. Remove the removable top from the vehicle.
  2. Remove the components in the order indicated in the figure.

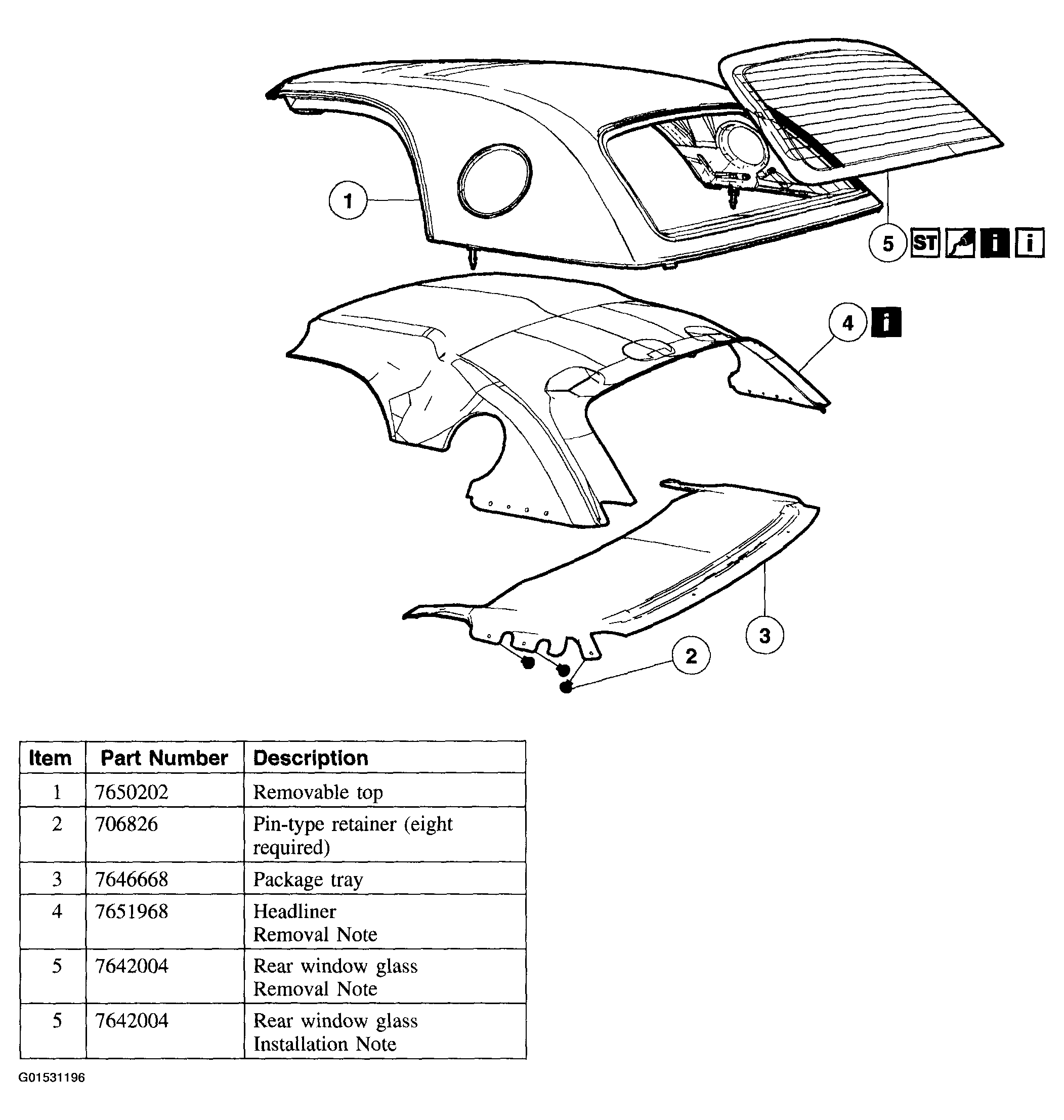

    Fig 3: Rear Window Glass Components Removal Sequence
    G01531196Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
