Rear Bumper: Notes

Special Tool(s)

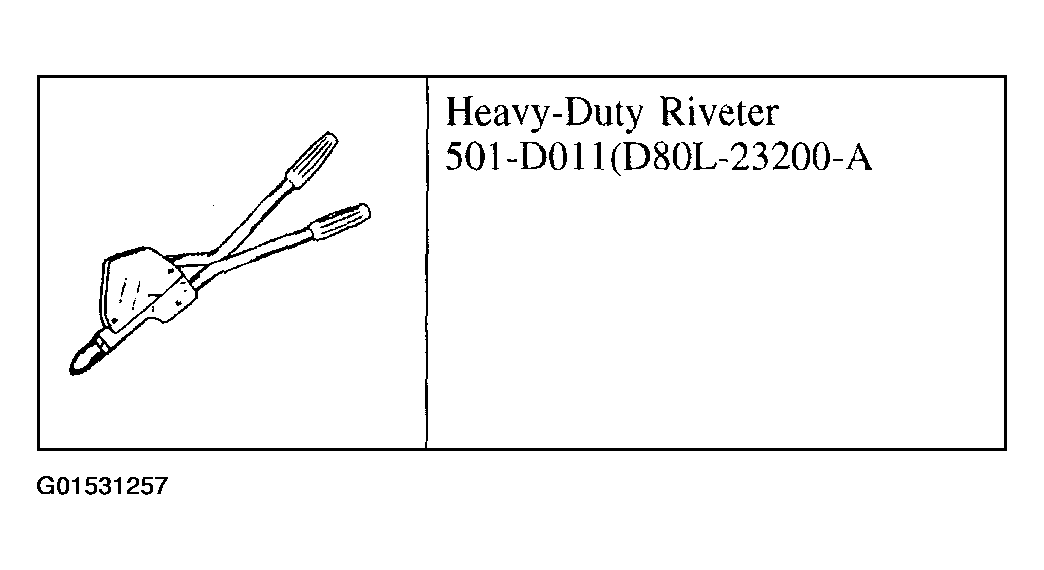

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. To remove the individual components, only carry out the listed steps.

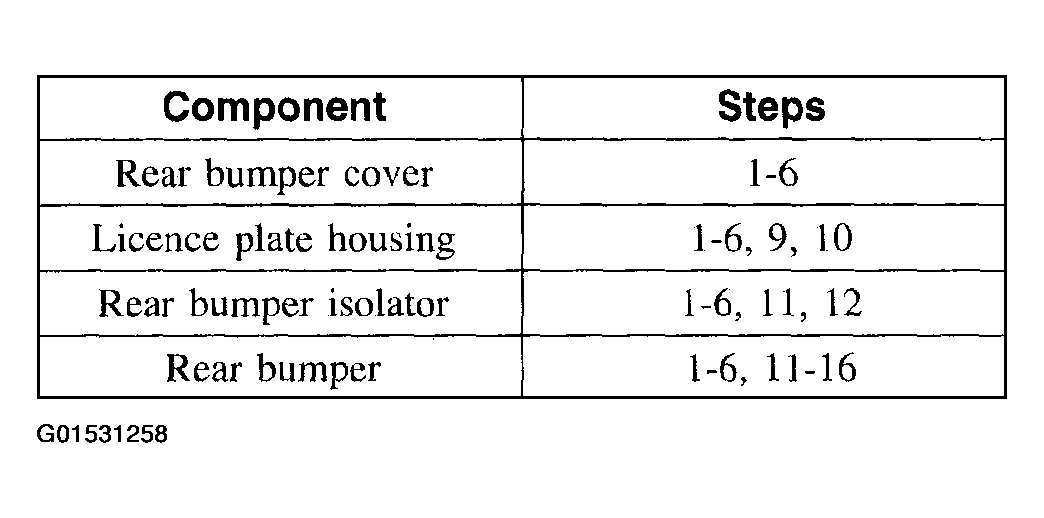

   Fig 2: Rear Bumper Components Removal Chart

   Courtesy of FORD MOTOR CO.
2. Remove the components in the order indicated in the figure.

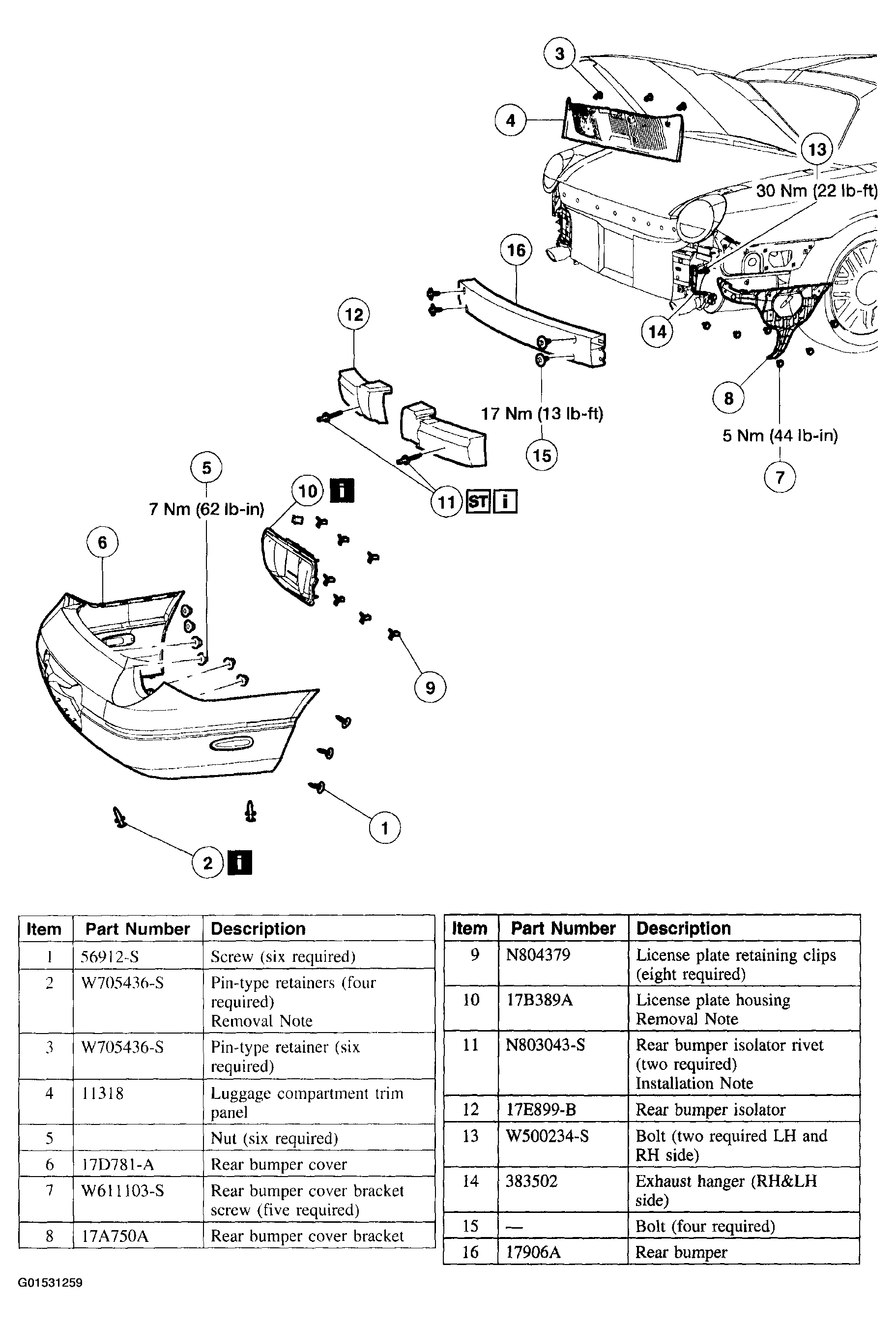

   Fig 3: Rear Bumper Components Removal Sequence

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
