Front Bumper: Notes

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING .
2. To remove the individual components, only carry out the listed steps.
   Fig 2: Front Bumper Components Removal Chart

   Courtesy of FORD MOTOR CO.
3. Remove the components in the order indicated in the figure.

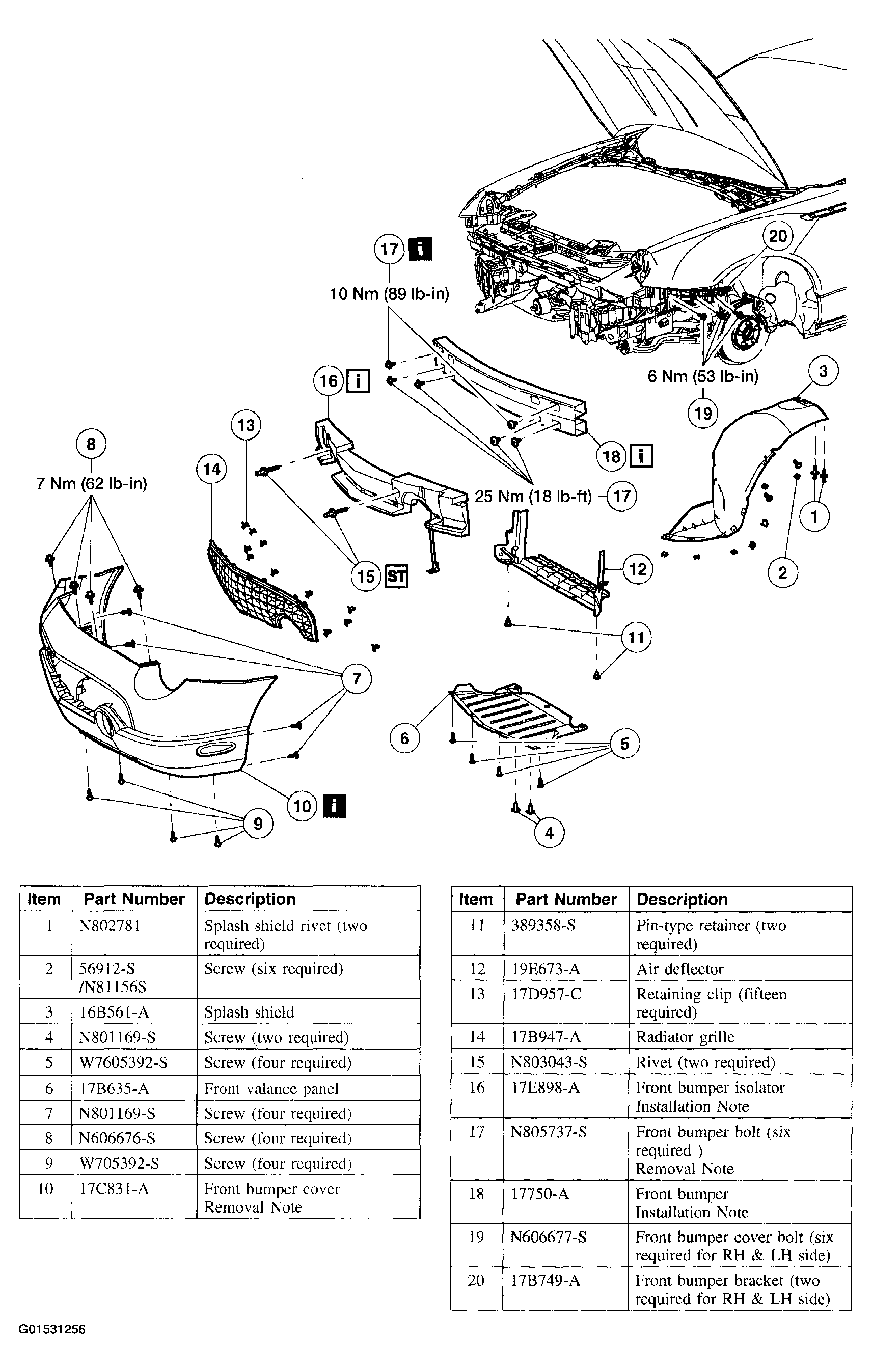

   Fig 3: Front Bumper Components Removal Chart

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
