Convertible Top Assembly: Notes

Material

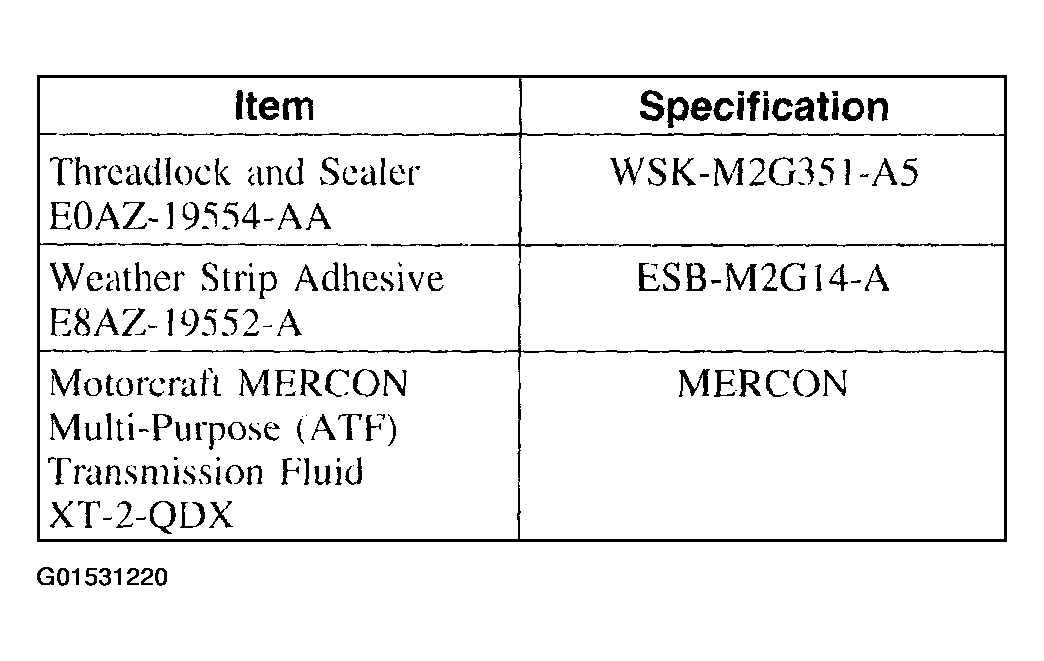

Fig 1: Convertible Top Assembly Material Specifications
G01531220Courtesy of FORD MOTOR CO.
CAUTION: To prevent any scratches to the vehicle, cover the surfaces with a protective material.
  1. To remove individual components only, carry out the following steps.

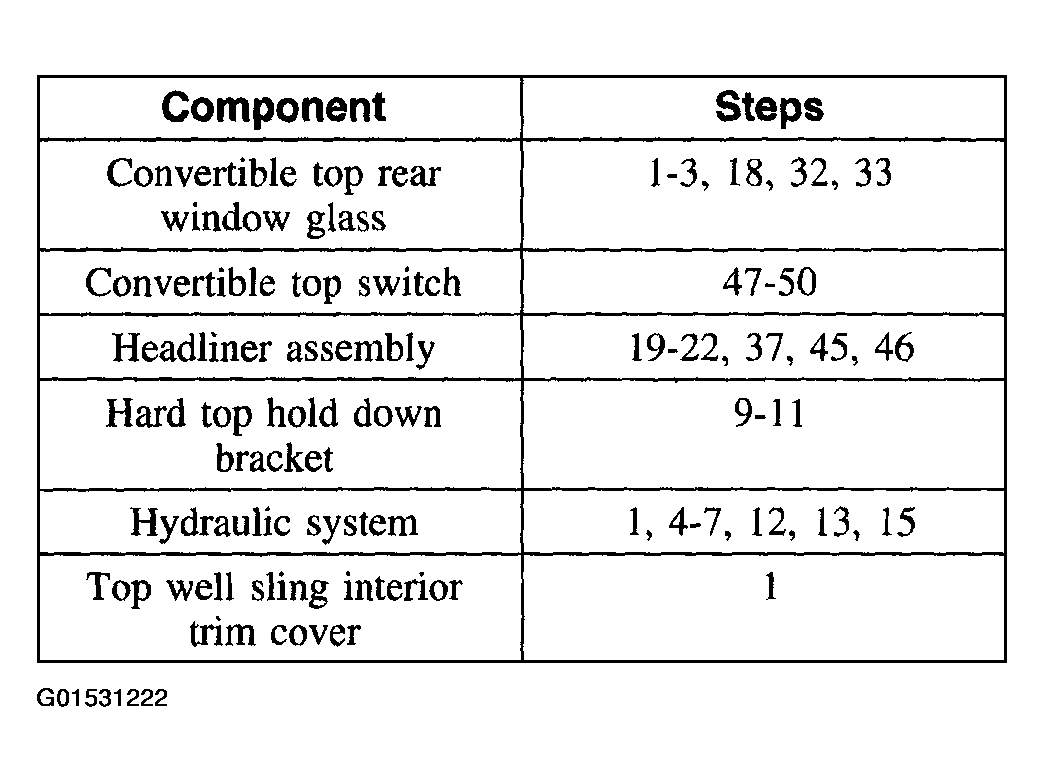

    Fig 2: Convertible Top Assembly Components Removal Chart (1 Of 2)
    G01531221Courtesy of FORD MOTOR CO.
    Fig 3: Convertible Top Assembly Components Removal Chart (2 Of 2)
    G01531222Courtesy of FORD MOTOR CO.
  2. Remove the components in the order indicated in the following illustration.

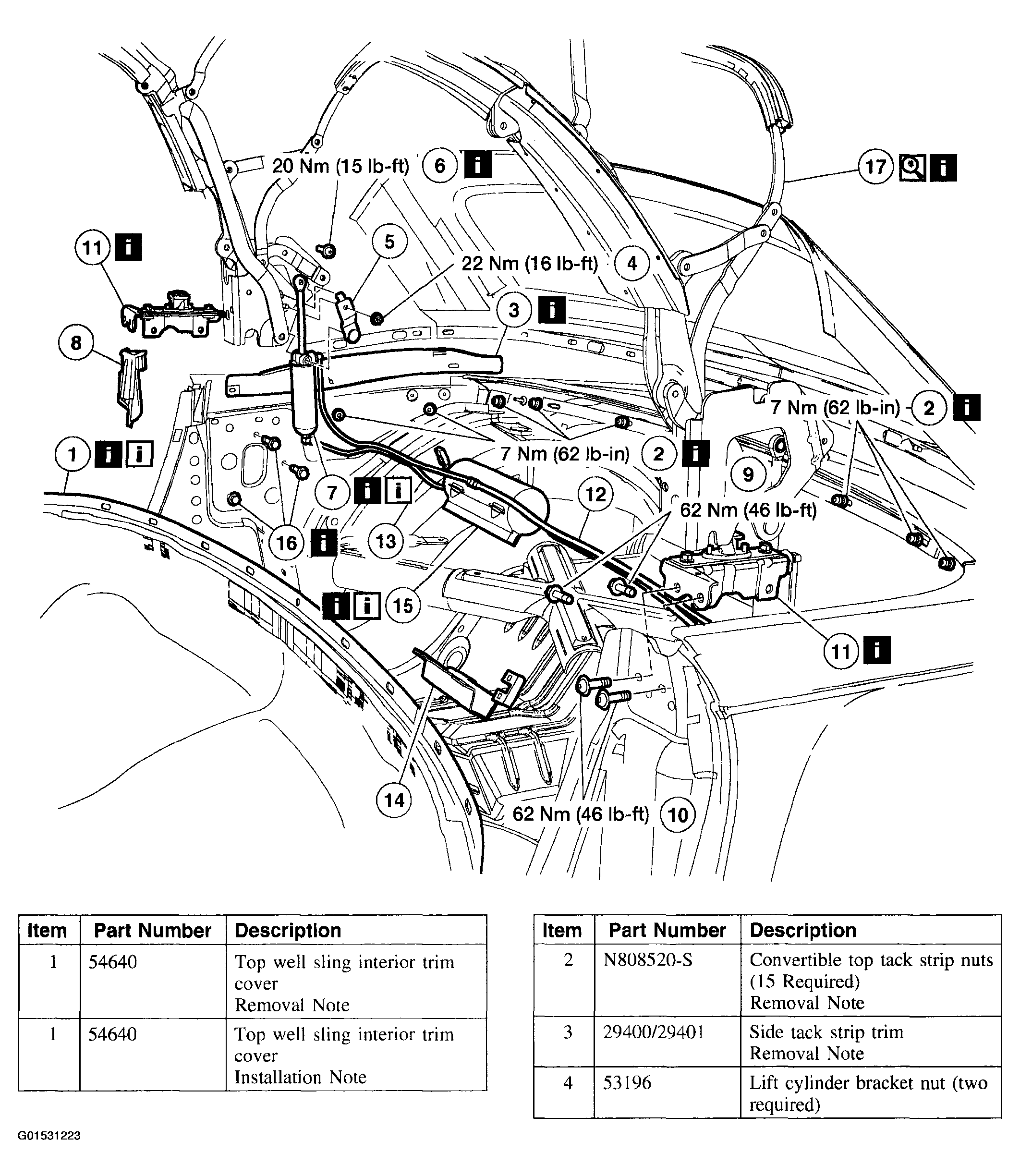

    Fig 4: Convertible Top Assembly Components Removal Chart (Items 1-4)
    G01531223Courtesy of FORD MOTOR CO.

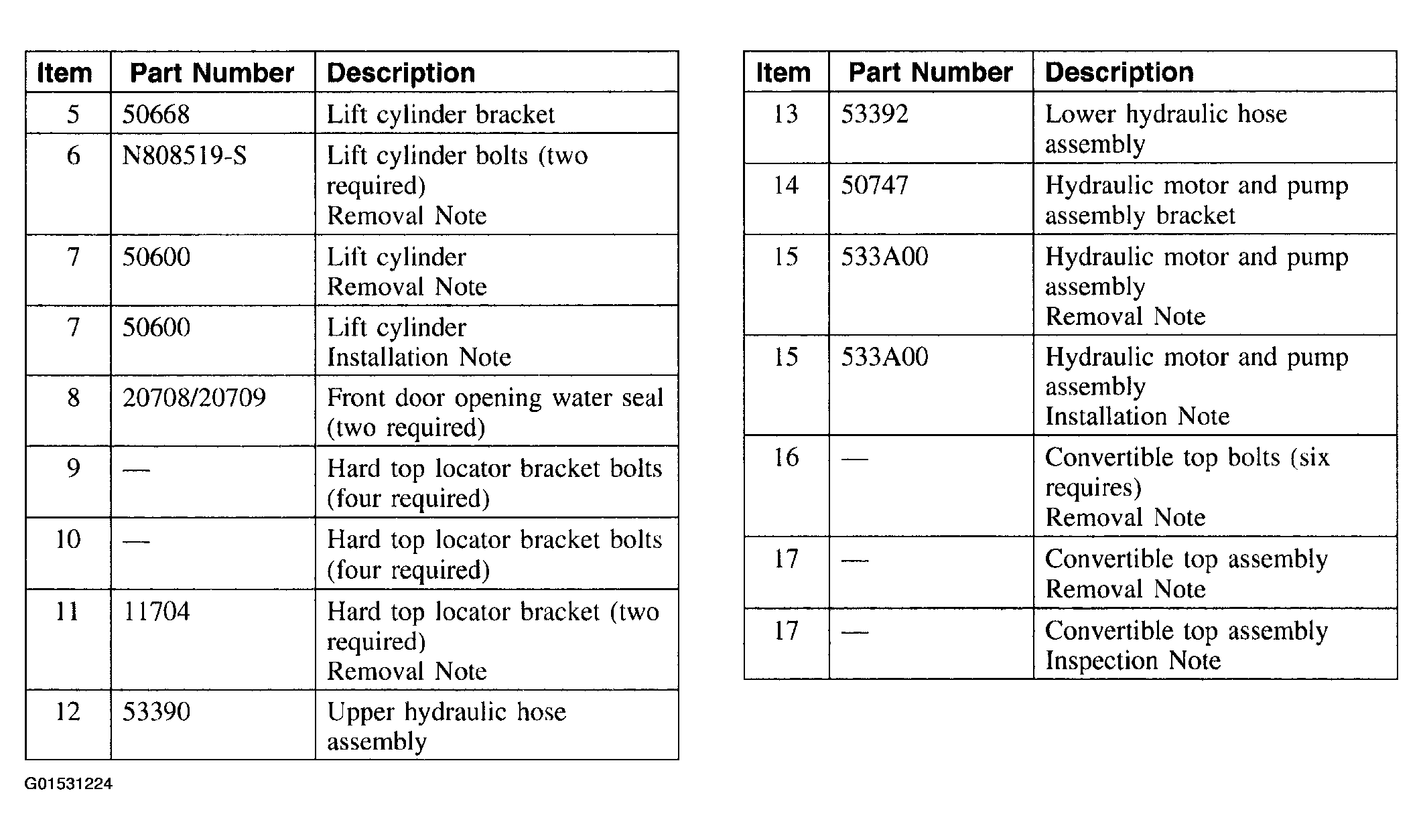

    Fig 5: Convertible Top Assembly Components Removal Chart (Items 5-17)
    G01531224Courtesy of FORD MOTOR CO.
  3. Remove the components in the order indicated in illustration.

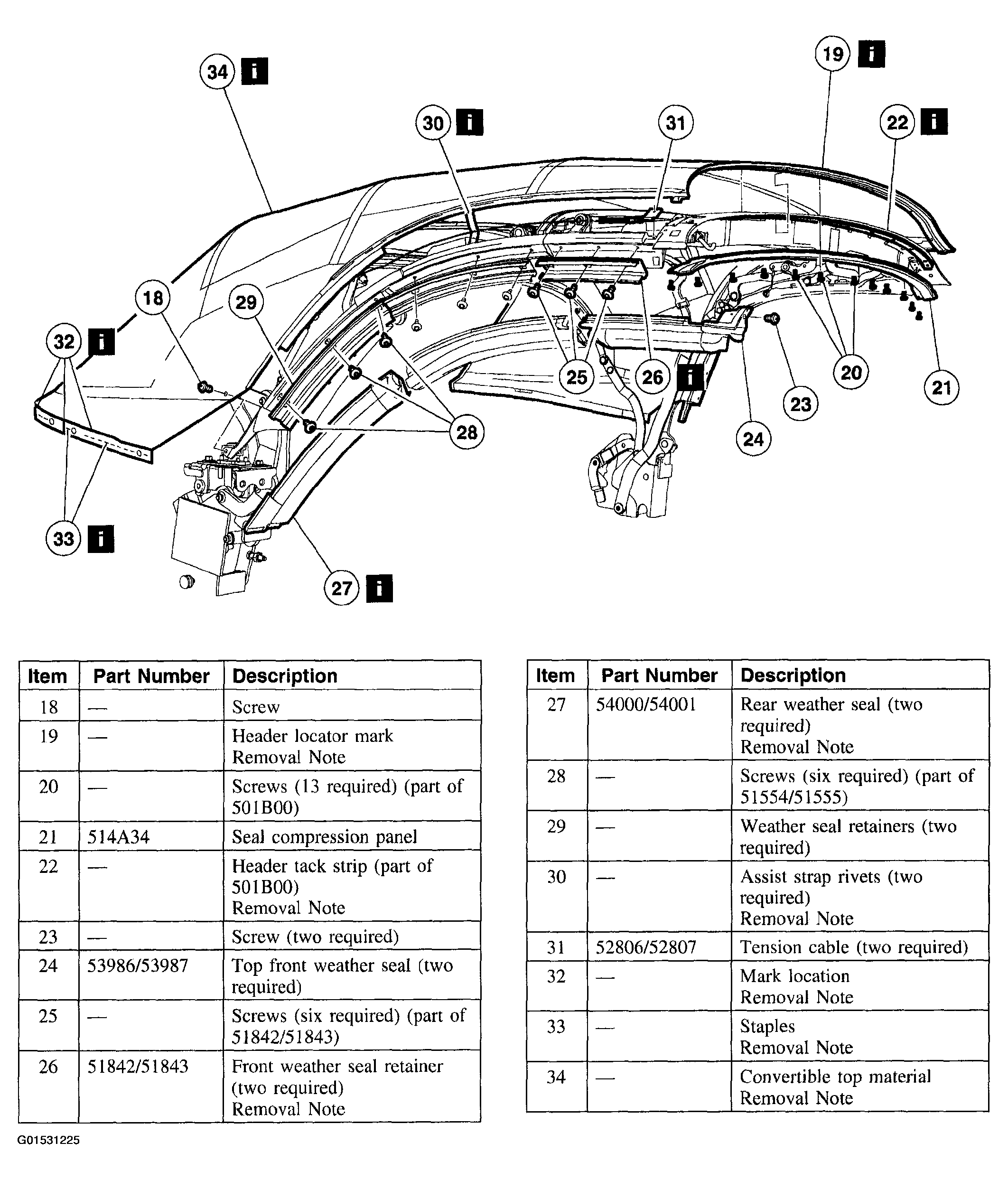

    Fig 6: Convertible Top Assembly Components Removal Chart (Items 18-34)
    G01531225Courtesy of FORD MOTOR CO.
  4. Remove the components in the order indicated in illustration.

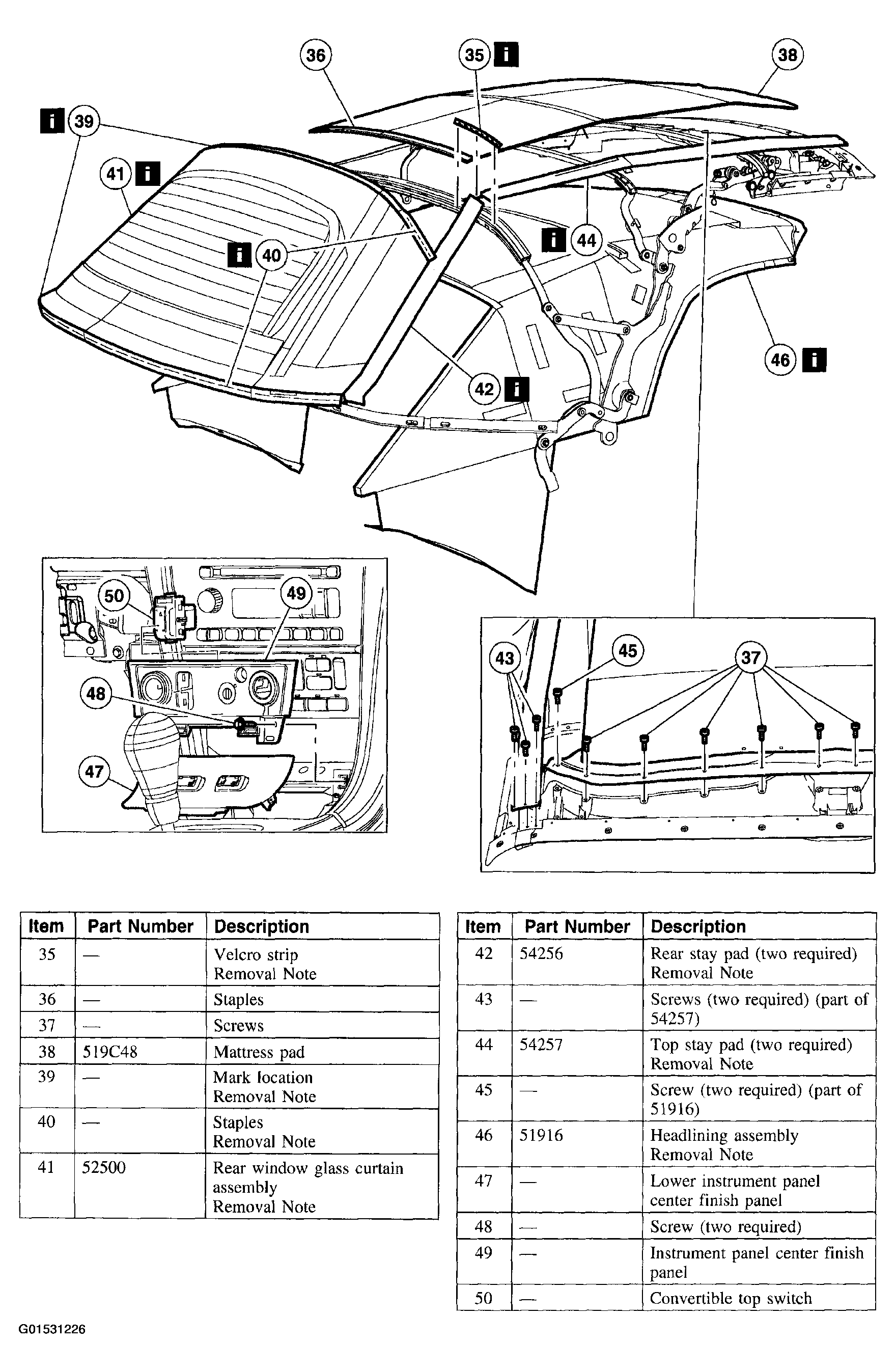

    Fig 7: Convertible Top Assembly Components Removal Chart (Items 35-50)
    G01531226Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
