Driver Seat: Notes

Special Tool(s)

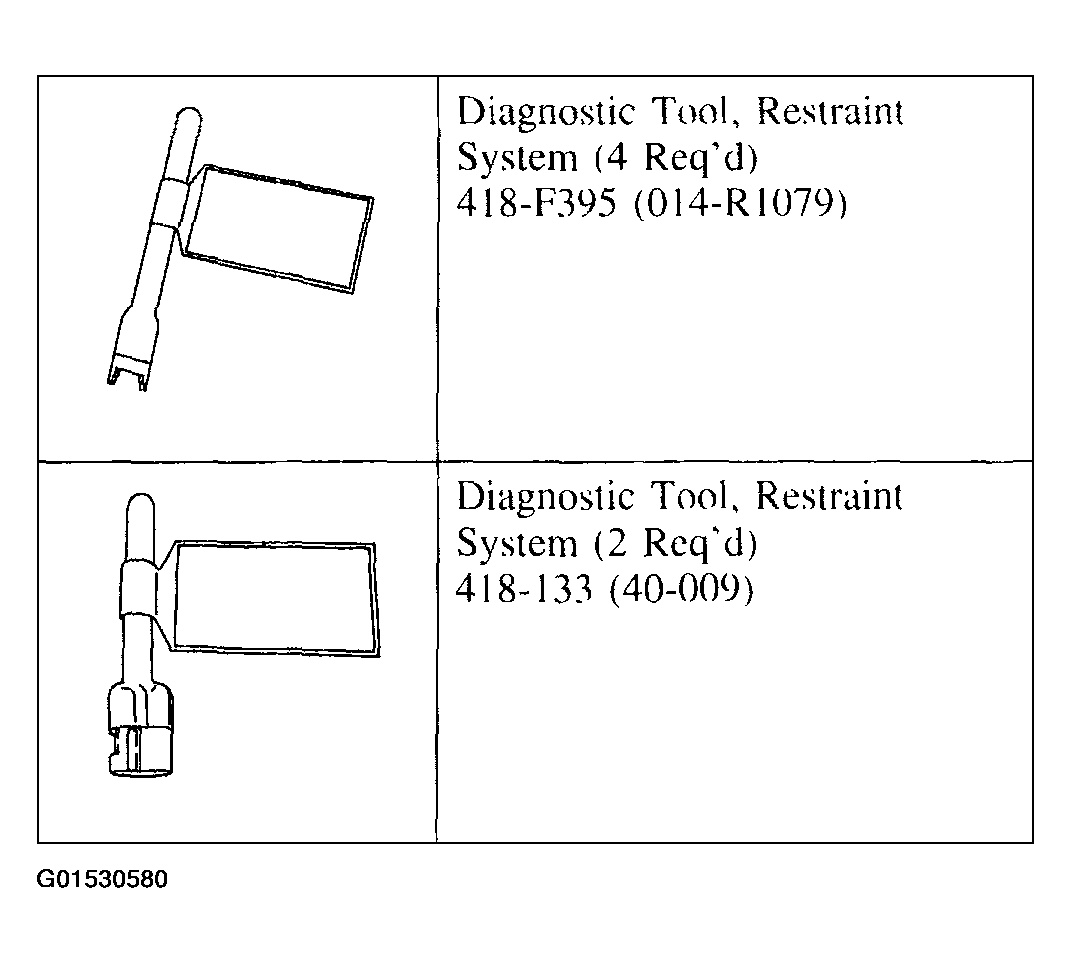

Fig 1: Identifying Driver Seat Special Tools
G01530580Courtesy of FORD MOTOR CO.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
NOTE: If a side air bag deployment took place, the seatback pad, trim cover and side air bag module must be replaced. The seatback frame should be replaced if necessary.
NOTE: Driver seat is shown, passenger seat is similar.
    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    The side impact sensors are attached to the rocker panels, near the seats.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

  1. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY & CHARGING SYSTEM .
    2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  2. Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  3. Remove the components in the order listed in the figure below.
    NOTE: Some component connectors may not exist due to vehicle options.
    NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.

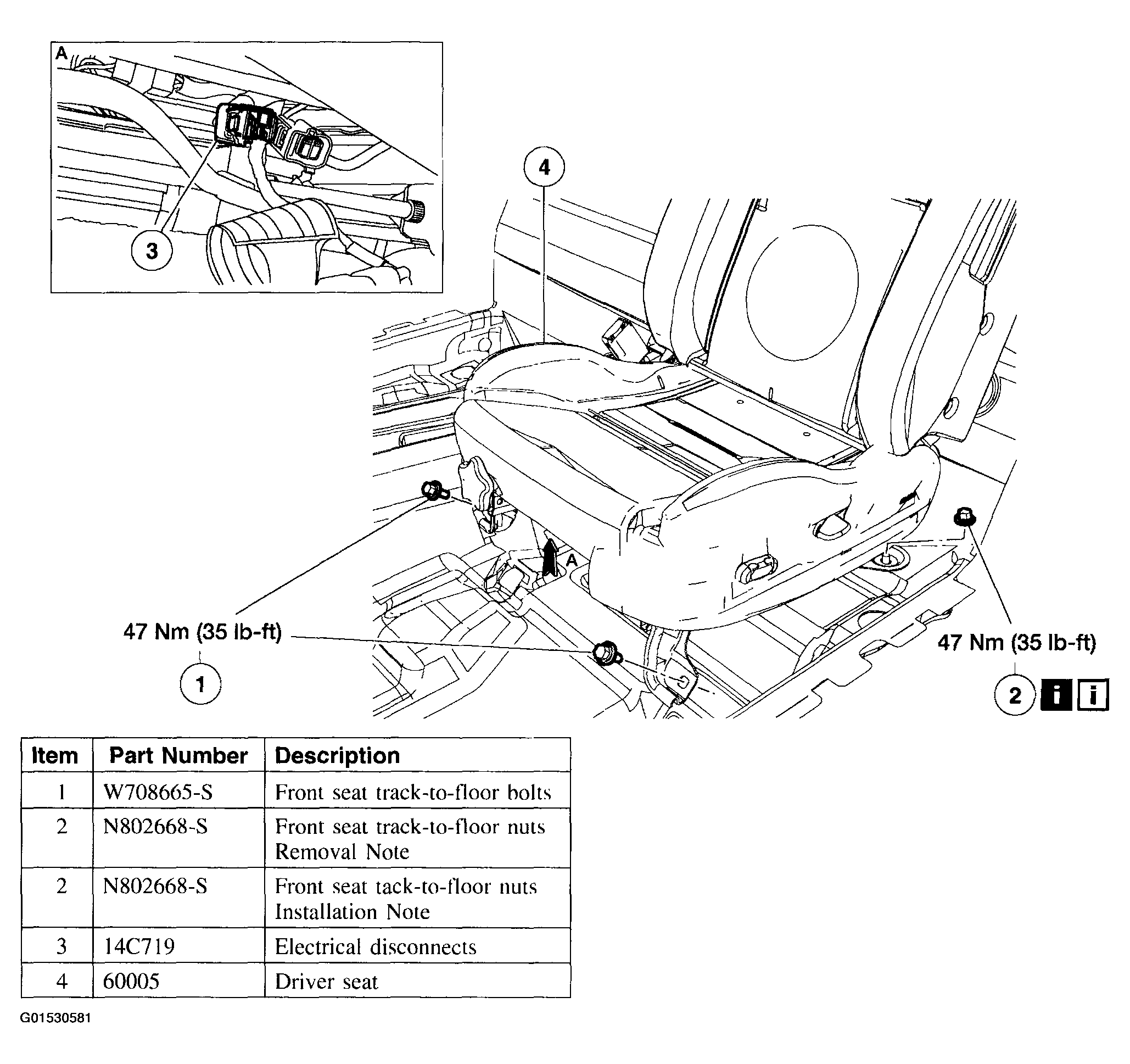

    Fig 2: Front Drive Seat Components Removal Sequence
    G01530581Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
  5. Remove the restraint system diagnostic tool from the driver seat side air bag floor electrical connector.
    Fig 3: Identifying Diagnostic Tool With Driver Seat Side Air Bag Floor Electrical Connector
    G01530582Courtesy of FORD MOTOR CO.
  6. Connect the driver seat side air bag electrical connector.
  7. Connect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  8. With the restraint system diagnostic tools installed at the remaining deployable devices, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
    9. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    The side impact sensors are attached to the rocker panels, near the seats.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

  9. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY & CHARGING SYSTEM .
    10. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  10. Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  11. Connect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
    12. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  12. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  13. Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
