Headlamp Switch, Autolamp Section

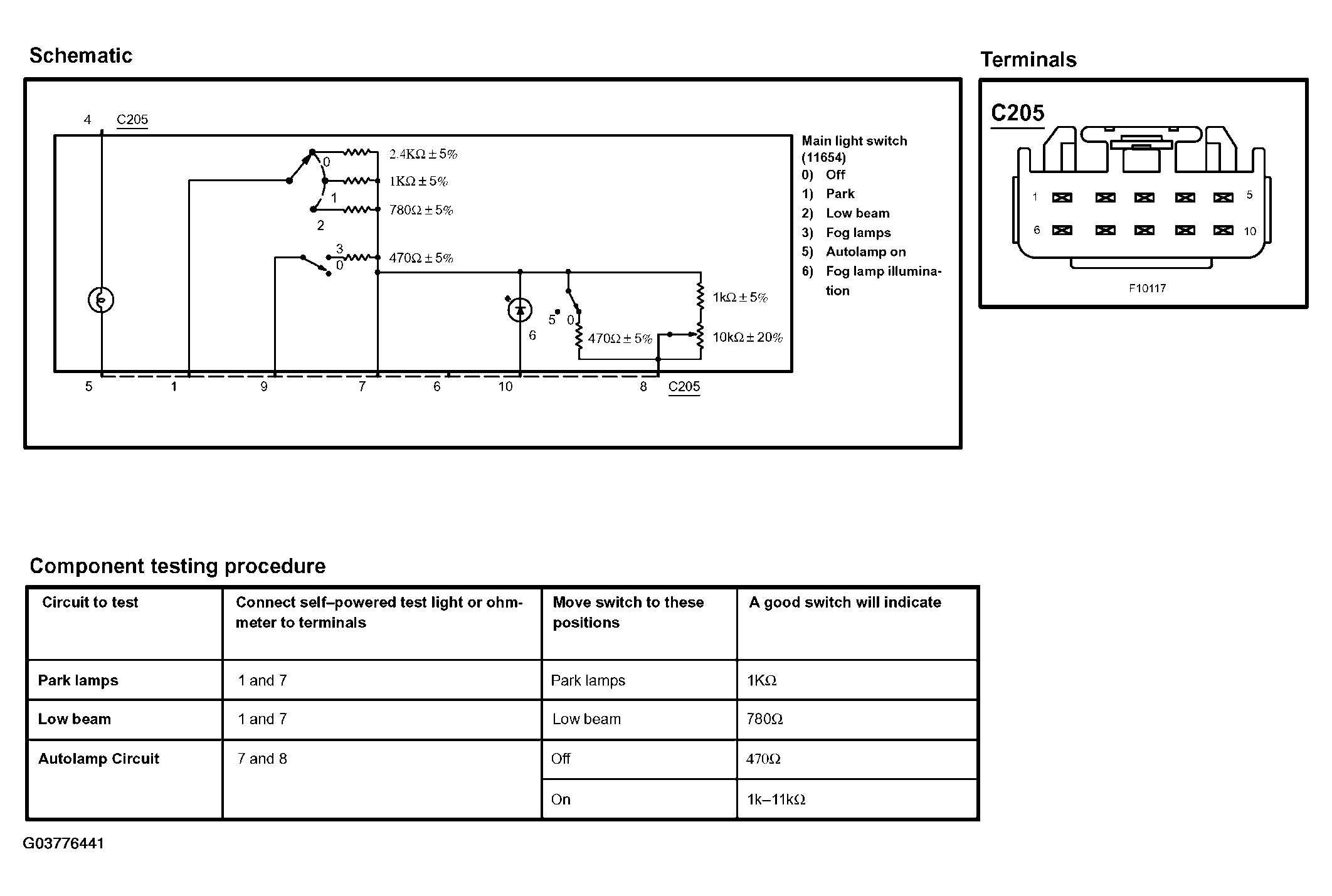

Fig 1: Testing Headlamp Switch (Autolamp Section)
G03776441Courtesy of FORD MOTOR CO.
