Sun And Shell Assembly - Disassembly: Notes

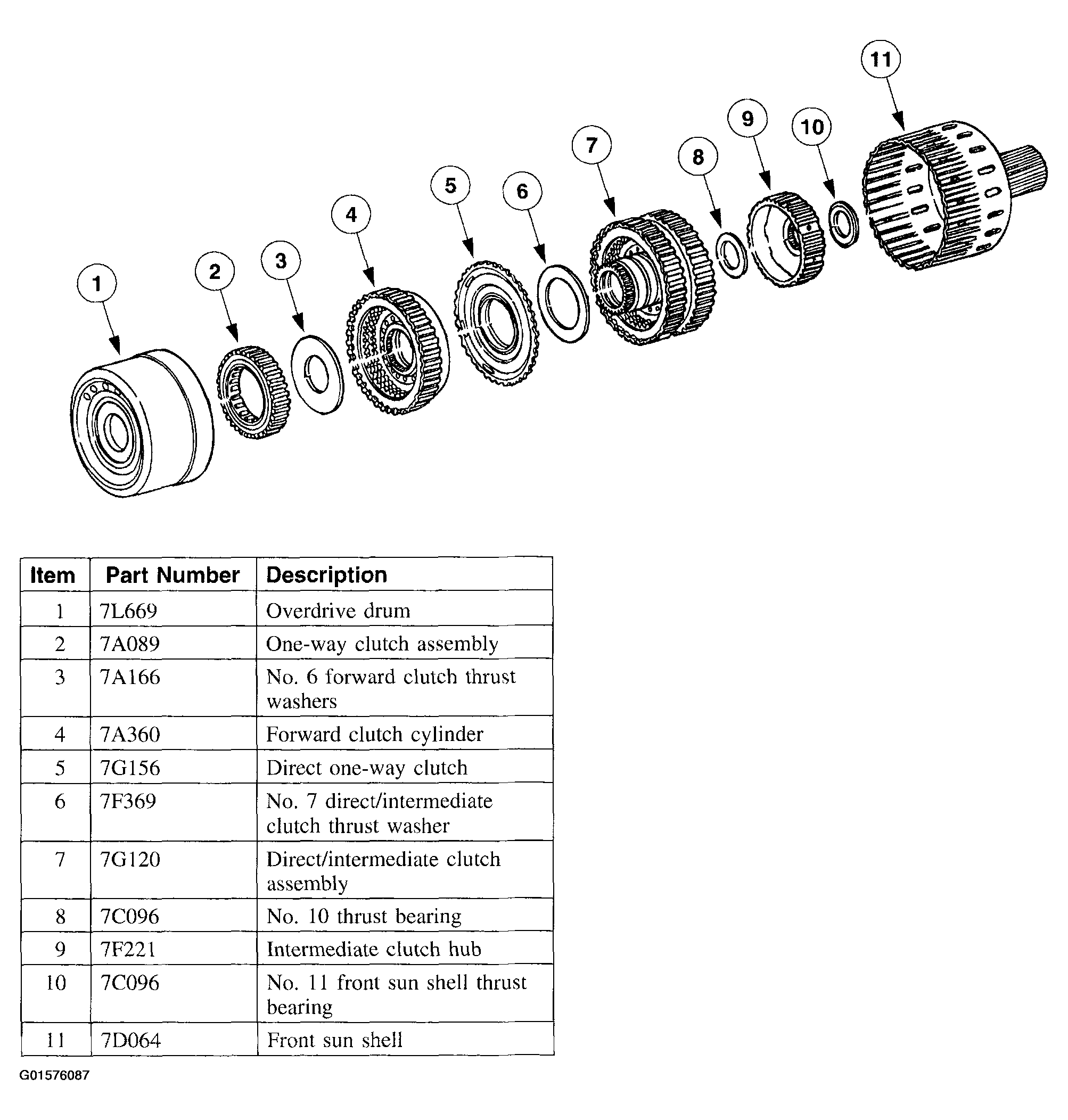

Fig 1: Exploded View Of Sun And Shell Assembly

G01576087

Courtesy of FORD MOTOR CO.
