Overdrive Servo: Disassembly

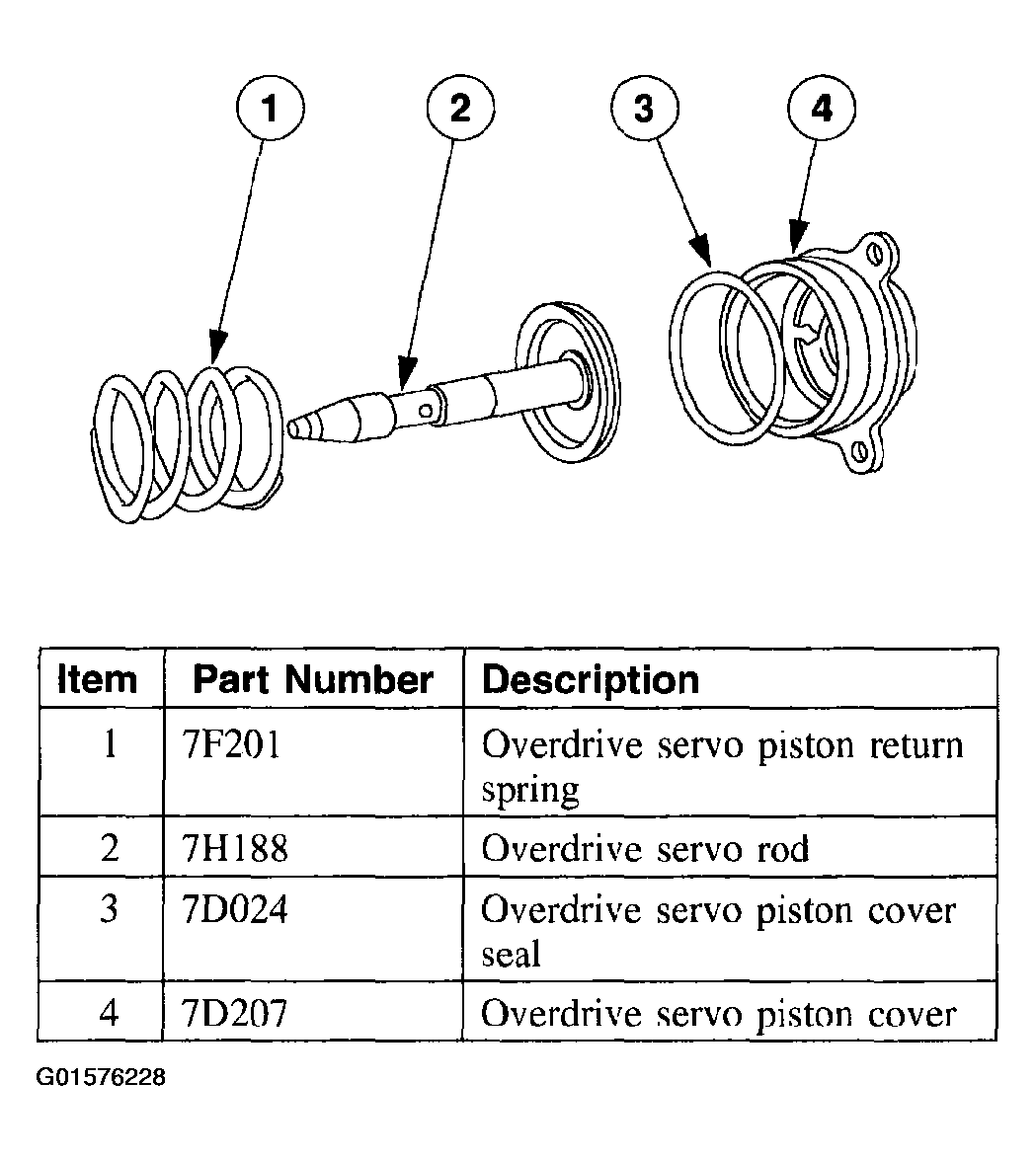

Fig 1: Exploded View Of Overdrive Servo
G01576228Courtesy of FORD MOTOR CO.
  1. Remove the overdrive servo piston return spring.
    Fig 2: Removing Overdrive Servo Piston Return Spring
    G01576229Courtesy of FORD MOTOR CO.
  2. Remove the overdrive servo piston and rod assembly.
    Fig 3: Removing Overdrive Servo Piston And Rod Assembly
    G01576230Courtesy of FORD MOTOR CO.
  3. Remove the servo piston seal.
    Fig 4: Removing Servo Piston Seal
    G01576231Courtesy of FORD MOTOR CO.
