Driven Sprocket Support: Disassembly

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

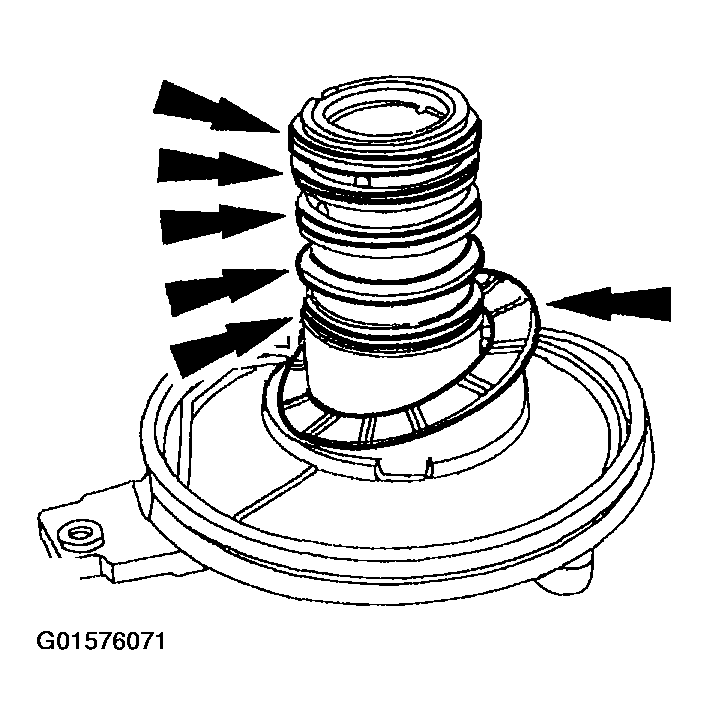

    Fig 1: Removing Teflon® Seal Rings And Thrust Washer
    G01576071Courtesy of FORD MOTOR CO.
    2. NOTE: If the driven sprocket bearing is damaged a new driven sprocket bearing should be installed.

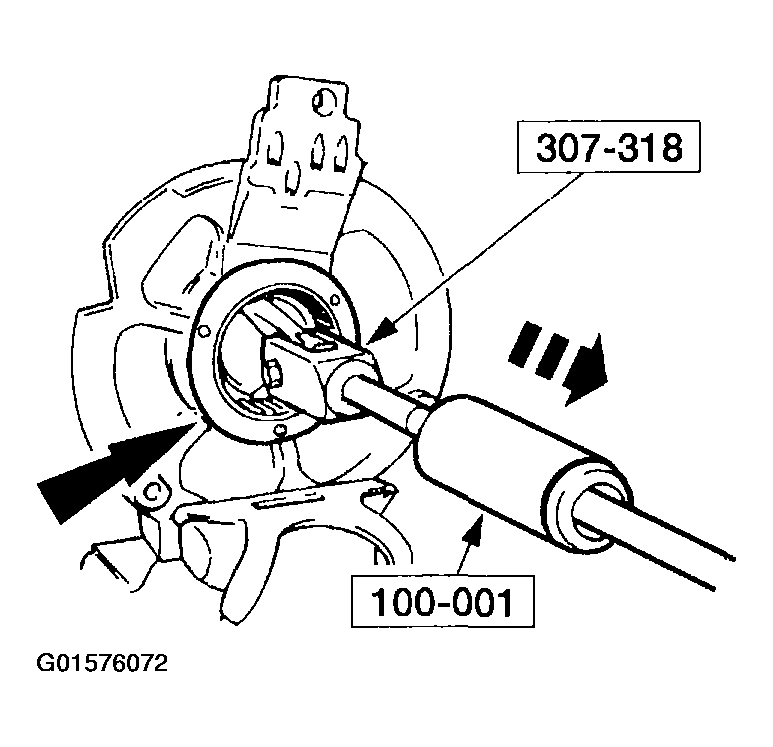

    Fig 2: Removing Driven Sprocket Bearing
    G01576072Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the driven sprocket bearing.
