Driven Sprocket Support: Assembly

  1. If removed, install a new driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.
    Fig 1: Installing Driven Sprocket Bearing
    G01576073Courtesy of FORD MOTOR CO.
    Fig 2: Positioning Seal Rings
    G01576074Courtesy of FORD MOTOR CO.
    2. CAUTION: The seal rings must be installed correctly. Transmission failure could result.
    NOTE: Make sure that the seals are mated correctly.

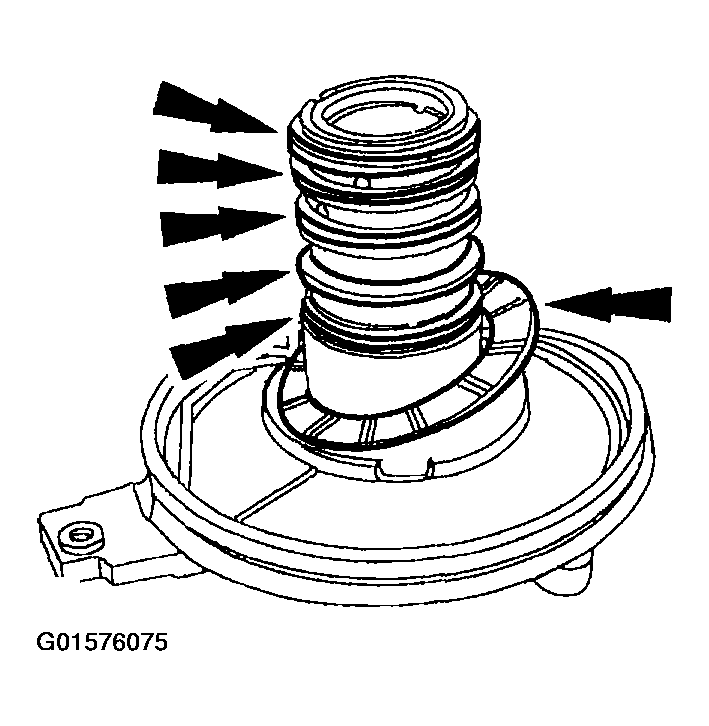

    Fig 3: Installing Teflon® Seals And Thrust Washer
    G01576075Courtesy of FORD MOTOR CO.
  2. Install new Teflon® seals and the No. 5 thrust washer.
