Automatic Transmission - 4F50N
>>
Description And Operation
>>
Main Components And Functions
Main Components And Functions

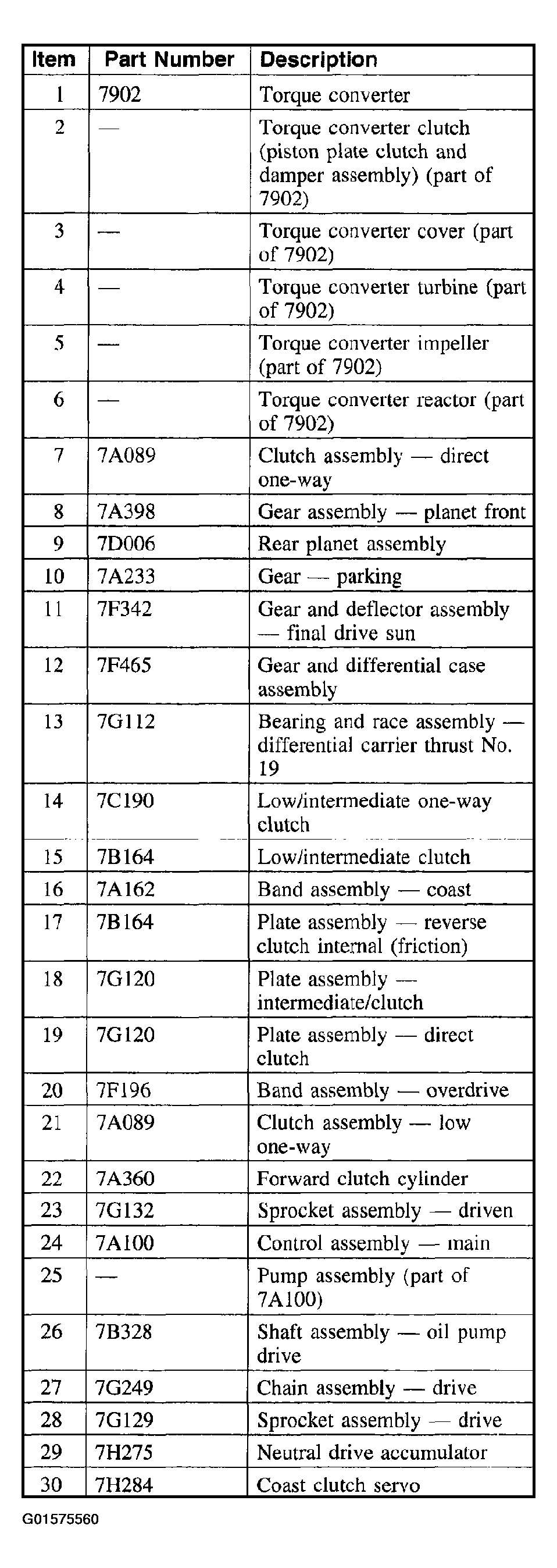

Fig 1: Identifying Main Components And Functions (1 Of 2)
Courtesy of FORD MOTOR CO.

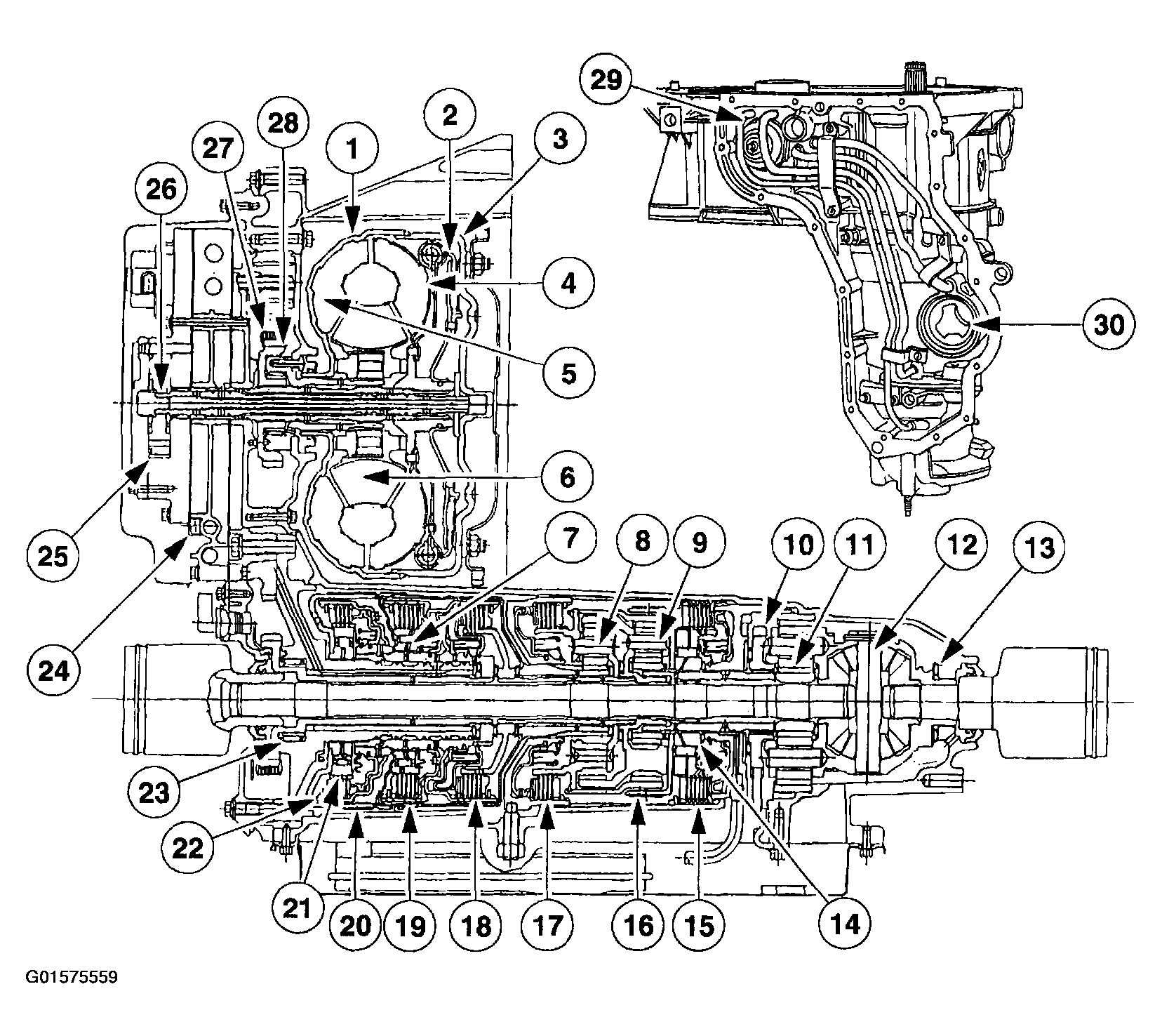

Fig 2: Identifying Main Components And Functions (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
